Sesame Corn Grain Seed Cleaner Machine
- 100 Set / Sets per Month
- T/T L/C
- Super Grain Processing Equipment Wheat Seed Cleaner Machine
- Wheat Grain Seed Cleaning Machine
- Rice Seed Processing Equipment Paddy Cleaner Separator
- Oilseed Processing Super Sesame Seed Sifting Cleaning Machine
- Large Capacity Grain Wheat Seed Cleaner Seed Cleaning Machinery Grain Gravity Vibrating Separator
- Large Capacity Grain Wheat Seed Cleaner Seed Cleaning Machinery Grain Gravity Vibrating Separator
Product Details
Brand Name: | AOHUA | Place of Origin: | China | Type: | Grain Processing Equipment |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

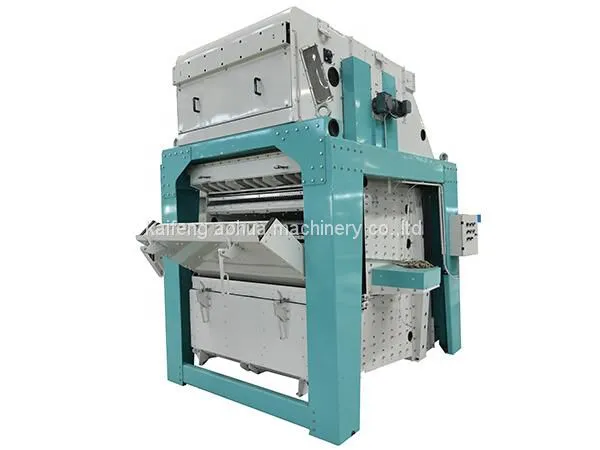

HZZD Multideck Rotary Cleaner for Grains Seeds Pre-cleaning & Size Grading
1) Function: pre-cleaning and cleaning raw grains and seeds, grading by size, removing large and small impurities, and dust with aspirator system.
2) Application: raw grains and seeds
3) Capacity: 1~120 t/h for pre-cleaning, 1~25t/h for cleaning (based on wheat)
Application of HZZD Multideck Rotary Cleaner
HZZD multideck rotary cleaner is particularly suitable for large capacity granular material cleaning and grading to remove large and small impurities. it is widely used in grain, feed, food, chemical and liquormaking industry.
HZZD multideck ritary cleaner is equipped with air aspirator system, which can remove light impurities and dust effectively together with air ducts. The sifting section can be used alone without air aspirator system.
Technical Specification of TQLZ Vibrating Screener
Model | Rated Capacity (Mesh φ/ Wheat) | Speed | Power | Suction Air Volume | Overall Dimension (L*W*H) | Weight |
HZZD150*200/8 | 120t/h | 300± 5 rpm | 3+0.75kW | 200m³/h | 3462*2445*3892mm | 6100kg |
HZZD200*200/8 | 150t/h | 300± 5 rpm | 3+0.75kW | 260m³/h | 3462*2945*3892mm | 7100kg |
Features of HZZD Multideck Rotary Cleaner
Large effective sifting area, large capacity, good cleaning and grading effect.
Combined hanger rod for sieve body suspension, good operation balance, low noise.
Feed end with multi-channel distributor can evenly distribute the material to screen decks, to ensure the sifting and grading efficiency.
Metal screen frame with small thickness, high strength and stiffness, and flat screen.
Screen frame side plates and screen body side plates are bolt fixed, making screen frame and screen box integrated into one body, with good overall strength.
Easy and convenient assembly and disassembly of screen deck, same mesh interchangeable.
Transmission system in modular structure for easy overall replacement, saving maintenance time,
Low dynamic power consumption.
