Application and function:
It is widely used in the processing of various crops, grains and food, such as grains, beans, fried goods, traditional Chinese medicine, seeds, dried fruits, nuts, corn, wheat, rice, etc.
It is specially used to remove heavy impurities such as stones, stones, bricks and metal blocks.
Specification
Model |
QSC-7 |
QSC-10 |
Mesh size |
1530×1530 |
2200×1530 |
Power |
6.25kW |
8.6kW |
Capacity |
4-5t/h（pulses） |
8-10t/h（pulses） |
Weight |
0.9t |
1.3t |
Principle and applicability:
Destoner is a sort of equipment based on the density (specific gravity) difference between materials and impurities.

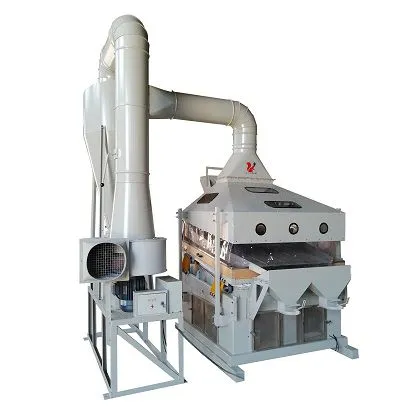

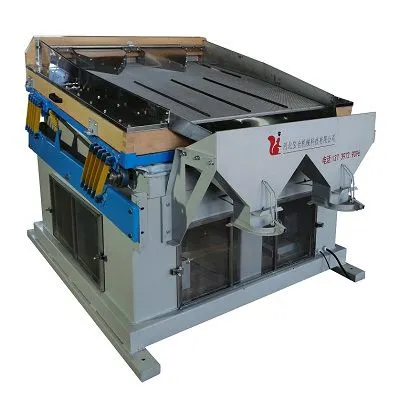

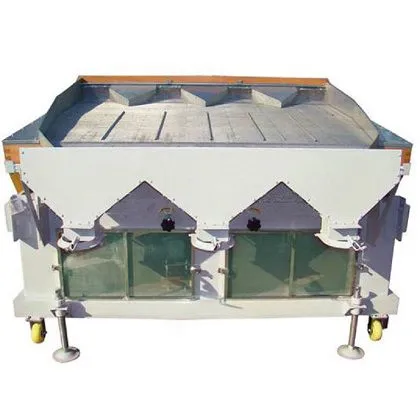

The main structure includes frame, wind system, vibration system, specific gravity table, etc.
When the equipment is working, the materials are mainly affected by two forces: wind force and vibration friction force. When the equipment is working, the materials are fed by the high-end of gravity table. Then, under the action of wind, the materials are suspended and stratified. The vibration of gravity table makes the heavy products in the lower layer climb up, and the lighter impurities in the upper layer flow down under the action of wind, so as to complete the separation of materials and impurities.
Technical advantages
1．Gravity table design
The wooden frame of gravity table is made of precious wood, which has excellent impact resistance and firmness. The screen surface is made of 304 stainless steel mesh of food grade, which has very good wear resistance and strength, greatly improving the service life of the gravity table.
2．Vibration design optimization
The base adopts the integrated welding design, with good stability and precise counterweight balance scheme, to ensure the stable vibration of the equipment and achieve the perfect zoning effect of the table.
3．Vibration frequency control
With frequency converter, can adjust the speed of vibration motor, control the vibration frequency finely, with good selection effect.
