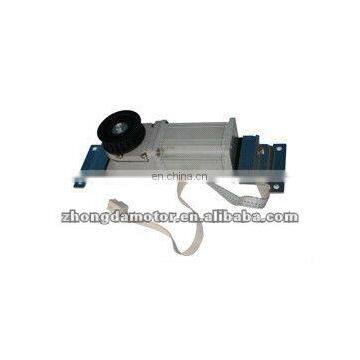

sectional overhead garage door motor

sectional overhead garage door motor

Motor performance parameters:

Main data:

1.Basic specification:DC24V,60W,2500RPM S1,B CLASS,IP20,IP40

2.Rated torque of bare motor:318mN.m,229mNm

3.No-load noise of whole motor:<50dB,L=50cm

4.VE:AC66V,1S,5mA

5.Insulation resistance:>20MΩ 500V,>20MΩ 500V

6.Life:2500H,4000H

7.Ambient request:RoHs

8.Gear Ratio:8.5,12.5,13

Product characters:

This product  adopted PMDC brush motor as the main part of rotor.It can be matched with computer system of control.It can realise self-supervise through matching with computer,and you can set the best working model.

Such asspeed ,impetus,resistant power and so on.It has characters of low noise,small volume,light,long lift and wide use.Meanwhile,it can meet the customers'request of update.

ABOUT US

History of ZD motor:

 March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile,start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standard<Common technical terms of micro asynchronous speed adjustable motor>in 2008;

ZD is the first draft-man of standard<Common technical terms of small gear motor> in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.

Honors:

Ningbo’s well-known trademarks;

Ningbo technology innovation model.

Ningbo patent demonstration enterprise;

Ningbo innovative pilot enterprises;

Ningbo Safety Standardization enterprises;

Chinese micro motor Union;

Chinese gear Union;

Chinese Electric parts Union;

Chinese Micro motor standardized Union;

First draft-man of Chinese standard of micro motor
