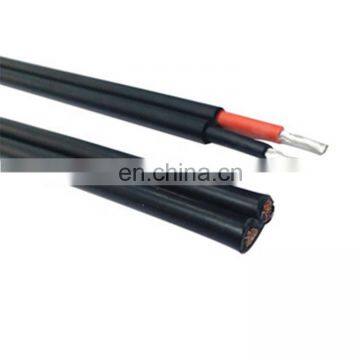

XLPO insulation high voltage 6mm twin DC solar cable
|
Cross Section (mm²) |
Conductor Construction (n/mm) |
Conductor OD(mm) |
Cable OD(mm)
|
Insulation Min.Wall Thickness(mm) |
Sheath Min.Wall Thickness(mm) |
Current Araaing Capacity AT 60°C(A) |
| 1.5 | TXR30/0.25 | 1.58 | 4.90 | 0.67 | 0.73 | 30 |
| 2.5 | TXR50/0.25 | 2.02 | 5.45 | 0.67 | 0.73 | 41 |
| 4 | TXR56/0.30 | 2.60 | 6.10 | 0.67 | 0.73 | 55 |
| 6 | TXR84/0.30 | 3.42 | 7.20 | 0.8 | 0.80 | 70 |
| 10 | TXR142/0.30 | 4.56 | 9.00 | 0.9 | 0.90 | 98 |
| 16 | TXR228/0.30 | 5.60 | 10.20 | 1.00 | 0.90 | 132 |
| 25 | TXR361/0.30 | 6.95 | 12.00 | 1.19 | 0.92 | 176 |
| 35 | TXR276/0.40 | 8.74 | 13.80 | 1.20 | 1.00 | 218 |
Test voltage:6500V 5min.Construction:Tinned copper + XLPE insulation.
Rated voltage:1000/1800V DC.
Halogen free and low smoke.
Tenperature rating:-40°C to 125°C,cold resistance.
UL and TUV certification.
|
|
|
|
|
|
|
|
1,circle the solar cable
2,wrap it with three stretch film
3,plastic for packing or wooden cable coil for packing
4,small wooden cable coil be boxed
Q1:Are you a trading company or manufacturer?
A1: Ningbo Holden Cable Co., Ltd. is a professional manufacturer,not a trading company,Thus,we can control your order from the first begining to the last.
Q2: What kinds of products does Ningbo Holden Cable manufacture?
A2:We specialize in supplying 2.5mm2/4mm2/6mm2/10mm2 solar cable,all types of solar cable
Q3:Which standards do you comply with when you produce the solar cables ?
A3:We can provide the products according to Rosh TUV IEC and UL standards. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
Q4:Can we have our logo or company name to be printed on your products or the package?
A4:Yes,you can.Logo and company name can be printed on our products by silk screen printing.
You can send us the artwork by email in JPEG or TIFF format.
Q5:How much the Courier freight will be for the samples?
A5:Courier freight depends on the quantity,weight and carton size and your area.
Q6:What is the shelf life of the product?
A6:25 year warranty.
