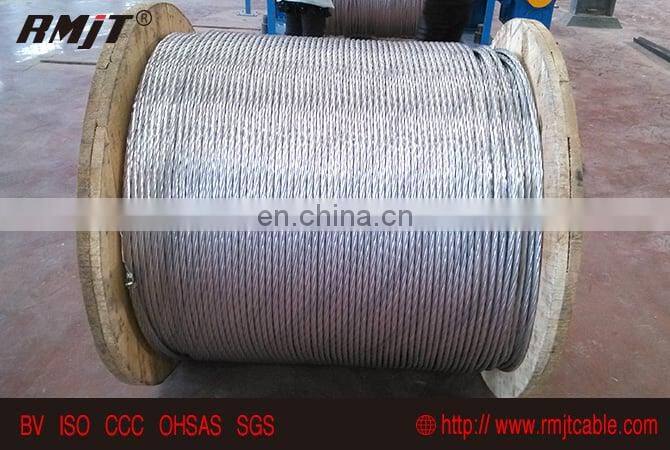

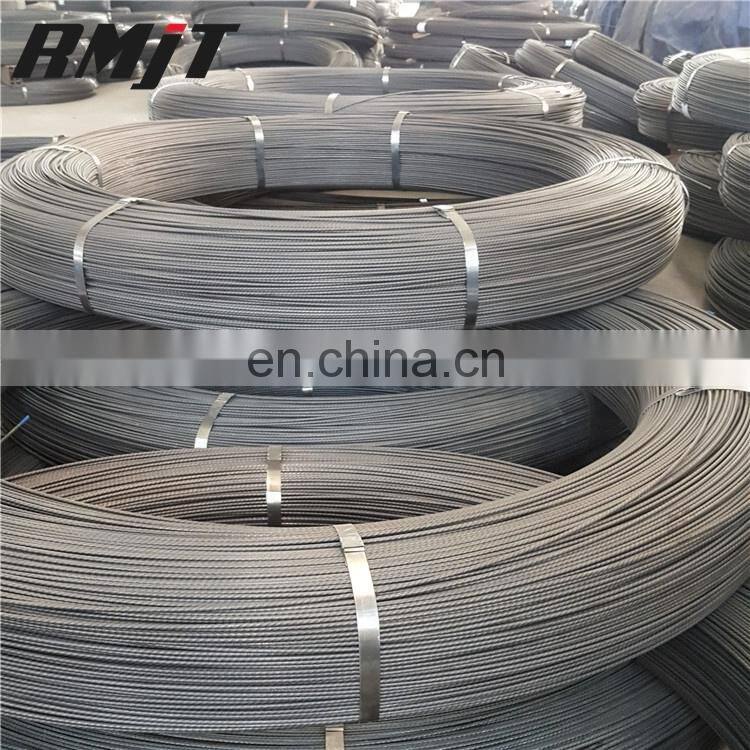

ASTM A475 ground cable EHS CABLE Galvanized steel strand
Application
Core wire for ACSR,Power cable,Telecommunication cable,Overhead conductor,Stay wire, Guy wire, etc.
Properties
Mid & High Carbon Galvanized steel wire & strand (7wires & 19 wires)

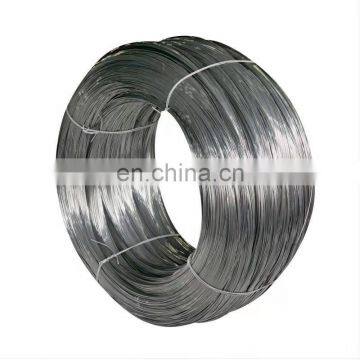

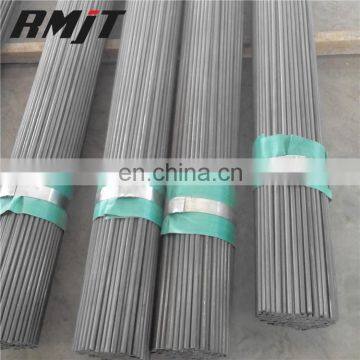

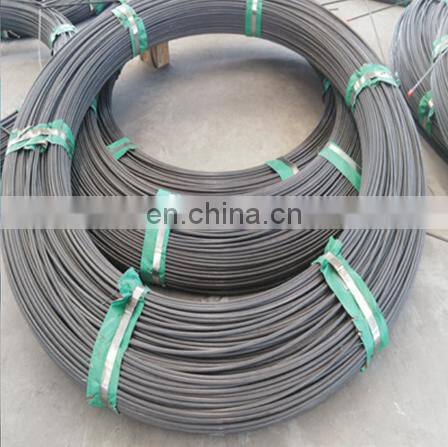

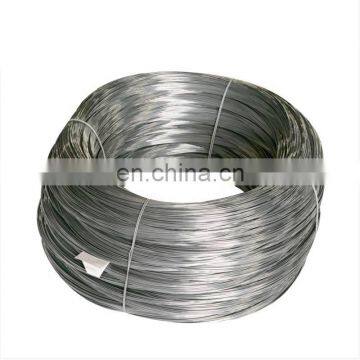

Galvanized steel wire : Dia. 1.57mm~4.80mm

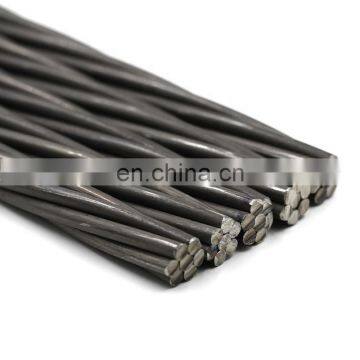

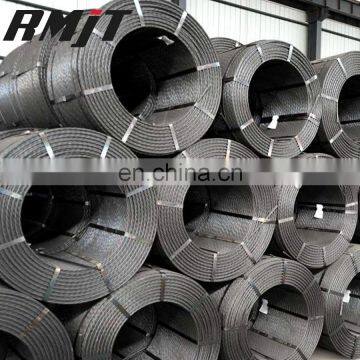

Galvanized steel wire strand:
1*7 wires Dia. 1.60mm~4.20 mm (single wire)
1*19 wire Dia. 1.60mm~3.20 mm (single wire)
Zinc-coating Grade : Class A & Class B
Technical standard : IEC 888, ASTM, DIN, BS, EN etc.
Yearly capacity :200,000 ton
Monthly Export Quantity :20,000 ton
International Customers : United States ,Mexico,India, Bangladesh,Malaysia, South Africa, Argentine, Vietnam,South Korea etc.
Third Party Test Certificate: SGS , BV , CCIC etc.
PART OF SPECIFICATION
| Nominal diameter of Strand. In (mm) | Number of Wires in Strand | Nominal diameter of Coated Wires in Strand. (mm) | Approximate Weight of Strand (kg/304.8m) | Minimum Breaking Strength of Strand (KN) | ||||
| Utilities Grade | Common Grade | Siemens Martin Grade | High Strength Grade | Extra High Strength Grade | ||||
| 3/16 (4.76) | 7 | 1.57 | 33 | ----- | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32 (5.56) | 3 | 2.64 | 40 | ----- | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32 (5.56) | 7 | 1.83 | 44 | ------ | 6.85 | 11.387 | 17.126 | 24.02 |
| 1/4 (6.35) | 7 | 2.03 | 55 | ------ | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32 (7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16 (7.94) | 7 | 2.64 | 93 | ----- | 14.234 | 23.798 | 35.586 | 49.82 |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.04 | 68.503 |
| 7/16 (11.11) | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2 (12.70) | 19 | 2.54 | 229 | ------ | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 (14.29) | 19 | 2.87 | 289 | ------- | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 (15.88) | 19 | 3.18 | 361 | ------- | 48.93 | 80.513 | 124.995 | 178.819 |
| 3/4 (19.05) | 19 | 3.81 | 524 | ------- | 71.172 | 116.643 | 181.487 | 259.331 |

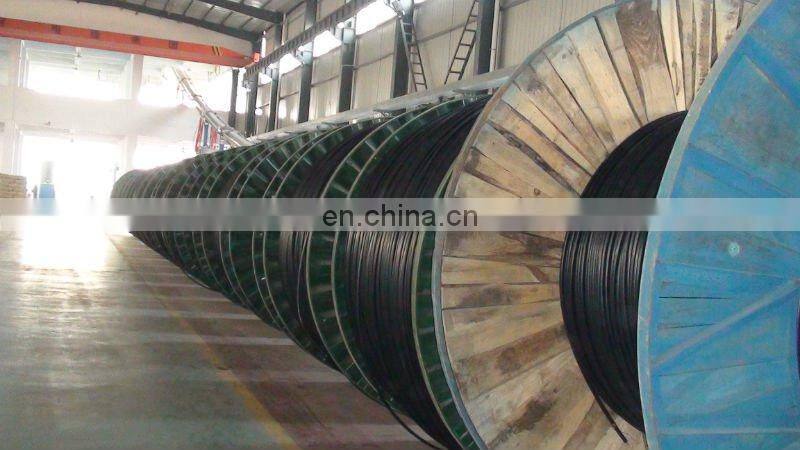

Packing And Delivery
About us
Tier one supplier of CNPC-- China National Petroleum Corp .
SKYPE: sara.peoplecable
