Home > Products > Electrical Wire/Cable(Housing Wire) > 16mm Twisted Pair Pvc Insulated Electrical Wire Cable
16mm Twisted Pair Pvc Insulated Electrical Wire Cable
US$ 0.5 - 3.5
/ Meter
100 Meters(Min. Order)
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
25 mm Electrical Copper Coated Aluminum Wire
-
2.5mm Single Core Cables PVC Insulated Copper Building Electrical Wire
-
10mm Thin Copper Electrical Pvc Wire
-
Price 4mm Copper Wire Insulation Electric Cable
-
Low Voltage 400v Flex Sheath 5mm Flat Resistance Aluminum Wire Wholesale Electric Cable 3 Core Flexible Copper Wire
-
Price 6mm Copper Cable Electrical Wire
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | PVC Coated Wire | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description
Product Description

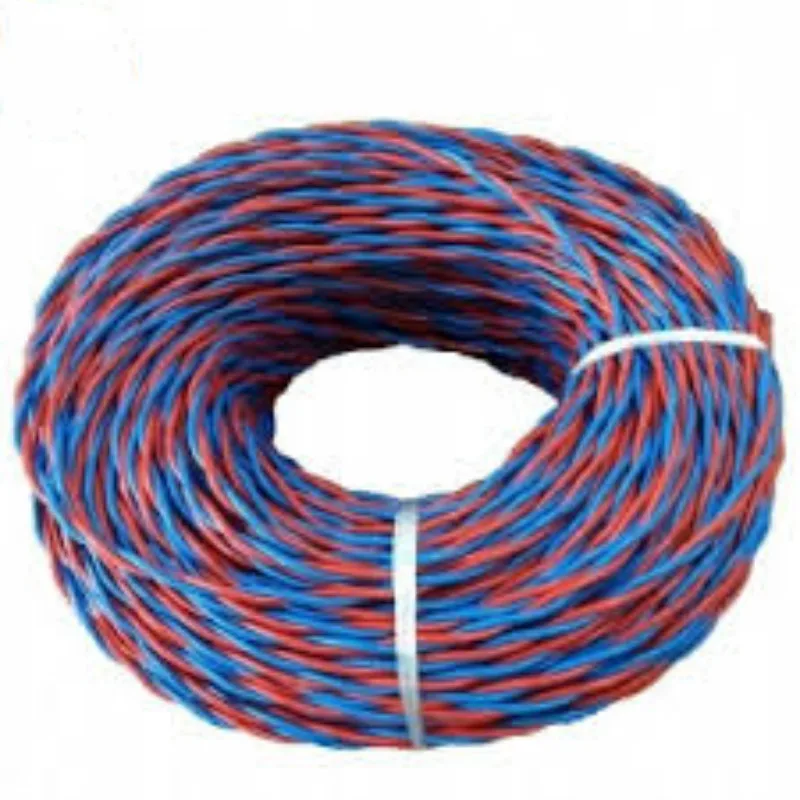

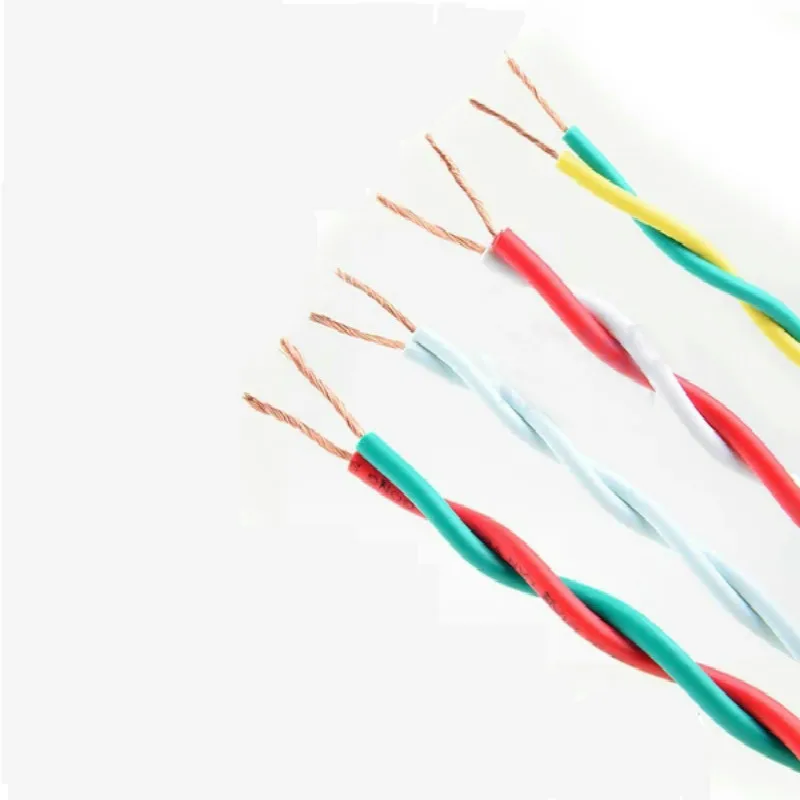

16mm twisted pair pvc insulated electrical wire cable
The electrical wire generally consist of a conductive core, an insulating layer, and a protective layer. The core can be divided into four types: hard, soft, mobile and extra soft. There are four types of cores: single core, two core, three core and four core. The insulating layer is generally made of rubber, plastic, and the like.
Product Structure
The wire and cable are composed of a conductor, an insulation layer, and a protective layer.
Conductor
The conductor is the conductive part of the wire and cable, which is used to transport electrical energy and is the main part of the wire and cable.
Insulation
Insulation layer is to electrically isolate the conductor from the ground and conductors of different phases from each other to ensure the transmission of electrical energy. It is an indispensable part of the wire and cable structure.
No. | Type | Description | ||
1 | 60227 IEC 01(BV) | Single core rigid conductor unsheathed cable for general purposes(H07V-U or H07V-R) | ||
2 | 60227 IEC 02(RV) | Single core flexible conductor unsheathed cable for general purposes(H07V-K) | ||
3 | 60227 IEC 05(BV) | Single core 70℃ solid conductor unsheathed cable for internal wiring(H05V-U or H05V-R) | ||
4 | 60227 IEC 06(RV) | Single core 70℃ flexible conductor unsheathed cable for internal wiring(H05V-K) | ||
5 | 60227 IEC 07(BV-90) | Single core 90℃ solid conductor unsheathed cable for internal wiring(H07V-U or H07V-R) | ||
6 | 60227 IEC 08(RV-90) | Single core 90℃ flexible conductor unsheathed cable for internal wiring(H07V-K) | ||
7 | 60227 IEC 10(BVV) | Light PVC sheathed cable(NYY or NYM) | ||
8 | 60227 IEC 42(RVB) | Flat unsheathed flexible wire | ||
9 | 60227 IEC 52(RVVB, RVV) | Light PVC sheathed flexible copper wire (H03VV-F,H03VVH2-F) | ||
10 | 60227 IEC 53(RVVB, RVV) | Common PVC sheathed flexible copper wire (H05VV-F,H05VVH2-F) | ||
11 | BV | Copper conductor PVC insulated wire(H07V-U or H07V-R) | ||
12 | BLV | Aluminum conductor PVC insulated wire | ||
13 | BVR | Copper conductor PVC insulated flexible cable(H07V-R) | ||
14 | BVV | Copper conductor PVC insulated sheathed circular cable(NYY or NYM) | ||
15 | BLVV | Aluminum conductor PVC insulated and sheathed round cable | ||
16 | BVVB | Copper conductor PVC insulated and sheathed flat cable | ||
17 | BLVVB | Aluminum conductor PVC insulated sheathed flat cable | ||
18 | NMD | Copper conductor PVC/Nylon Insulated PVC Jacked flat cable | ||
19 | RVS | Twisted copper conductor PVC insulated flexible cable for conection | ||
20 | AVP | Copper conductor PVC insulated wire with shield for installation | ||
21 | RVP | Copper conductor PVC insulated flexible wire with shield | ||
22 | RVVP | Copper conductor PVC insulated, shielded, PVC sheathed flexible cable | ||
...... | ||||
Specification for H05V-S RVS electrical wire cable
Nominal cross-sectional area(mm2) | Insulation thickness(mm) | conductor specification | weight (kg/km) | Max D.C. Resistance at 20℃ Ω/km | ||||
2*0.5 | 0.8 | 16/0.20 | 23 | 39 | ||||
2*0.75 | 0.8 | 24/0.20 | 29 | 26 | ||||
2*1 | 0.8 | 32/0.20 | 33 | 19.5 | ||||
2*1.5 | 0.8 | 48/0.20 | 43 | 13.3 | ||||
2*2.5 | 0.8 | 78/0.20 | 64 | 7.98 | ||||
...... | ||||||||
Attention: We can provide more information than above data, if needed.The above are just some examples.
