AWG 12 mm 300/500V Multi Core Copper Cable 100m 1000v Electrical Building Wire
US$ 0.7 - 1.77
/ Meter
100 Meters(Min. Order)
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
Electrical Wire for Lights Housing Wire
-
Best Quality 2.5mm Copper Conductor PVC Insulated BVR Flexible Electrical Cable Wire
-
BV BVVB BVR 2.5 mm 4 mm 6 mm Copper Core Flexible Electrical Wire Flexible Electrical
-
China Factory Hot Sales Power Cable Wire PVC 2 3 4 Core Flat Electrical Cable For Home
-
1.0mm2 1.5mm2 2.5mm2 4.0mm2 Soft Copper PVC Electrical Cable Wire
-
BV Cable Electrical Cable Wire Electrical Wires Electrical Wire Price
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | 1000v electric building wire | Type | Insulated | |
| Application | Overhead | Insulation Material | PVC | |
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description
Product Description

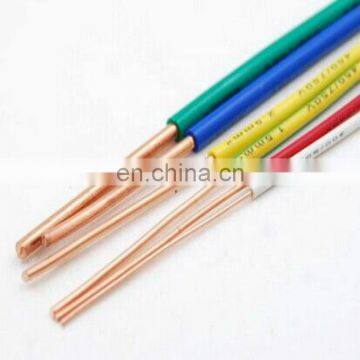

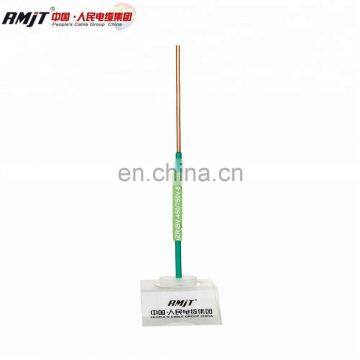

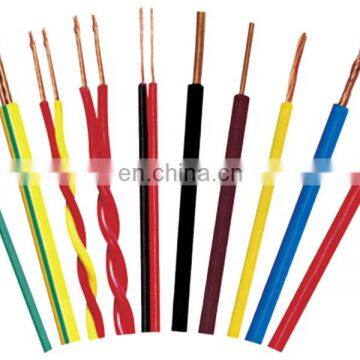

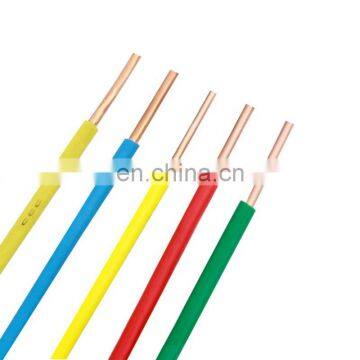

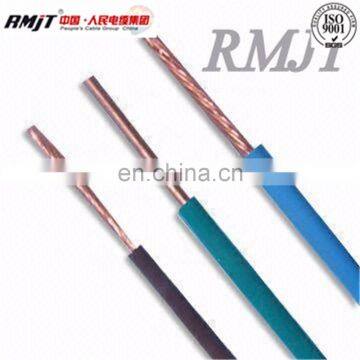

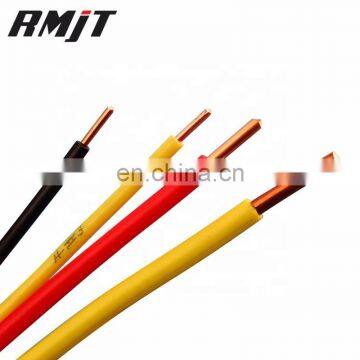

0.5mm 0.75mm 1mm 1.5mm copper conductor PVC insulation electrical copper wire and cable
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places.
They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U).
Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
The core can be divided into four types: hard, soft, mobile and extra soft.
There are four types of cores: single core, two core, three core and four core.
Product Construction:
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service performance of copper wire
1.Rated voltage: 300/300V ; 300/500V ;450/750V
2.Long-term working temperature: not be higher than 70°C
3.When laying the cable, the ambient temperature should not lower than 0°C
4.Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D ascable overall diameter>25mm.
2.Insulation: PVC rated at 70°C
3.Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service performance of copper wire
1.Rated voltage: 300/300V ; 300/500V ;450/750V
2.Long-term working temperature: not be higher than 70°C
3.When laying the cable, the ambient temperature should not lower than 0°C
4.Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D ascable overall diameter>25mm.
Model | Name | Usage |
BV(BLV) | copper (AL) core PVC insulated cable (wire) | Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment, power and lighting lines for fixed laying |
BVR | copper core PVC insulated flexible cable (wire) | |
BVV(BLVV) | copper (AL) core PVC insulated PVC sheathed round cable (wire) | |
BVVB(BLVVB) | copper (AL) core PVC insulated PVC sheathed flat cable (wire) | |
BV-105 | copper core heat-resistant 105 degree PVC insulated wire | |
BV-ZR | copper core flame retardant PVC insulated wire | / |
BVR-ZR | copper core flame retardant PVC insulated flexible wire | / |
BVV-ZR-105 | copper core flame retardant PVC insulated PVC sheathed round cable | / |
BVVB-ZR | copper core flame retardant PVC insulated PVC sheathed flat cable | / |
BV-ZR-105 | copper core heat resistant 105 ℃ flame retardant PVC insulated wire | / |
BVR-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable | / |
BVV-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable | / |
AV-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire | / |
AVR-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire | Cords for internal use in instruments, meters, etc. |
AV-ZR | copper core flame retardant PVC insulated installation (flexible) wire | hard-wired for electrical, instrumentation, electronic equipment, etc. |
RV | Copper core PVC insulated flexible wire | Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power tools, power and lighting devices |
RVB (RVVB) | copper core PVC insulated flat connection flexible wire | |
RVS | copper core PVC insulated twisted connection flexible wire | |
Rv-105 | copper core heat-resistant 105 degree PVC insulated connection flexible wire | |
RVV | copper core PVC insulated PVC sheathed flat connection flexible cable (wire) | Household appliances, small electric tools, instruments and power lighting |
RVVP | Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core, | instrument, instrument, intercom, monitoring, control installation |
AVVR | PVC Sheath | Installation flexible cable |
Part Production Range of XLPE insulated power cable
Model | Voltage level (v) | Cross-sectional area (mm2) | Number / diameter (mm) | Outer diameter (mm) | weight (kg/km) | 20 ℃ conductor resistance ≤ (Ω / km) |
BV | 300/ 500V | 0.5 | 1/0. 80 | 2.4 | 8.5 | 36 |
BV | 300/ 500V | 0.75 (A) | 1/0.97 | 2.6 | 11.1 | 24.5 |
BV | 300/ 500V | 0.75(B) | 7/0.37 | 2.8 | 12 | 24. 5 |
BV | 300/ 500T | 1.0(A) | 1/1.13 | 2.8 | 13.9 | 18.1 |
BV | 300/ 500V | 1.0(B) | 7/0.43 | 3 | 15 | 18.1 |
BV | 450/ 750V | 1.5(A) | 1/1.38 | 3.3 | 20. 3 | 12. 1 |
BV | 450/ 750V | 1.5(B) | 7/0. 52 | 3.5 | 21.6 | 12.1 |
BV | 450/ 750V | 2.5 (A) | 1/1.78 | 3.9 | 31.6 | 7.41 |
BV | 450/750V | 2.5(B) | 7/0. 68 | 4.2 | 34. 8 | 7.41 |
BV | 450/ 750V | 4(A) | 1/2.25 | 4.4 | 47.1 | 4.61 |
BV | 450/ 750T | 4(B) | 7/0.85 | 4.8 | 50. 3 | 4.61 |
BV | 450/ 750V | 6(A) | 1/2.76 | 4.9 | 67.1 | 3.08 |
BV | 450/ 750T | 6(B) | 7/1. 04. | 5.4 | 71.2 | 3.08 |
BV | 450/ 750V | 10 | 7/1.35 | 7 | 119 | 1.83 |
BV | 450/ 750V | 16 | 7/1.70 | 8 | 179 | 1.15 |
BV | 450/ 750V | 25 | 7/2. 14 | 10 | 281 | 0.727 |
BV | 450/750V | 35 | 7/2. 52 | 11.5 | 381 | 0.524 |
BV | 450/ 750V | 50 | 19/1.78 | 13. 0 | 521 | 0.387 |
BV | 450/ 750V | 70 | 19/2. 14 | 15 | 734 | 0.268 |
BV | 450/ 750V | 95 | 19/2.52 | 17.5 | 962 | 0.193 |
BV | 450/ 750V | 120 | 37/2. 03 | 19 | 1180 | 0.153 |
BV | 450/ 750V | 150 | 37/2.25 | 21 | 1470 | 0.124 |
BV | 450/ 750V | 185 | 37/2. 52 | 23.5 | 1810 | 0.0991 |
BVR | 450/750V | 2.5 | 19/0.41 | 4.2 | 34.7 | 7.41 |
BVR | 450/ 750V | 4 | 19/0. 52 | 4.8 | 51.4 | 4.61 |
BVR | 450/750V | 6 | 19/0.64 | 5.6 | 73.6 | 3.08 |
BVR | 450/ 750V | 10 | 49/0.52 | 7.6 | 129 | 1.83 |
BVR | 450/ 750V | 16 | 49/0.64 | 8.8 | 186 | 1.15 |
EVR | 450/ 750V | 25 | 98/0. 58 | 11 | 306 | 0.727 |
BVR | 450/ 750V | 35 | 133/0. 8 | 12.5 | 403 | 0.524 |
BVR | 450/ 750V | 50 | 133/0. 68 | 14.5 | 553 | 0.387 |
BVR | 450/ 750V | 70 | 189/0.68 | 16.5 | 764 | 0.268 |
Nominal sectional area mm2 | Conductor No/Dia. Mm | Nominal Insulated thick mm | Max overall Dia. Mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||
Cu | Al | Cu | Al | |||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - | ||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 | ||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 | ||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 | ||
10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 | ||
16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 | ||
25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 | ||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 | ||
50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 | ||
70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 | ||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 | ||
120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 | ||
150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 | ||
185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 | ||
