Application
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
Construction

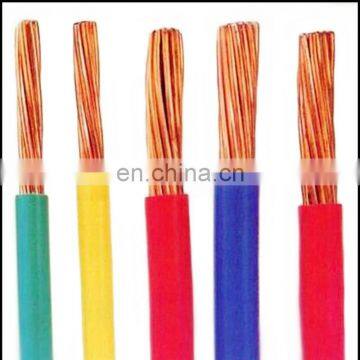

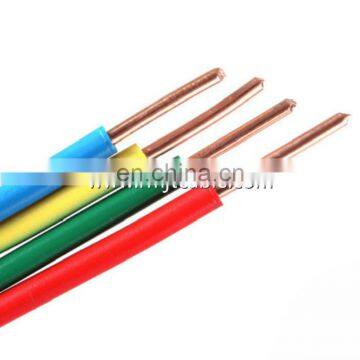

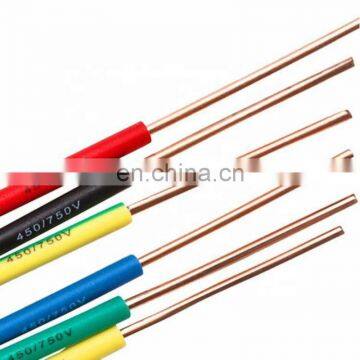

(1).Conductor: bare solid/stranded copper,or Aluminum.
(2). Fire resistant mica tape.
(3).Insulation: PVC rated at 70°C
(4).Color Code:red,orange,yellow,yellow-green,blue,purple,grey,white or as your requirment.
(5).Outer sheath: PVC tapes ST2 to IEC.
Standards of house and buliding electric wire
The products can be produced according to standard GB/T 5023, IEC60227, BS6004, JB8734, and more we have extended the range of the type to fit for the requirement of the consumers.
Specification Size and Technical Data
| Copper Conductor PVC Insulated Flexible Wire with Voltage 450/750V | ||||||
| Nominal Sectional Area | Conductor No/Dia. | Nominal Insulated thick | Max overall Dia. | Condcutor Resistance at 20°C | Min insulated resistance at 70°C | Weight |
| mm² | mm | mm | mm | Ω/km | mΩ/km | Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68 |
| 10 | 49/0.52 | 1 | 7.6 | 1.83 | 0.0072 | 115 |
| 16 | 49/0.64 | 1 | 8.8 | 1.15 | 0.0062 | 176 |
| 25 | 98/0.58 | 1.2 | 11 | 0.727 | 0.0058 | 272 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714 |
| 95 | 259/0.68 | 1 | 19.5 | 0.139 | 0.0035 | 965 |
| 120 | 259/0.76 | 1.8 | 22 | 0.153 | 0.0032 | 1210 |
| 150 | 259/0.85 | 1.8 | 25 | 0.124 | 0.0032 | 1510 |
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand “RMJT” has be given China famous brand.
1. What is our company's main advantage?
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer’s requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
