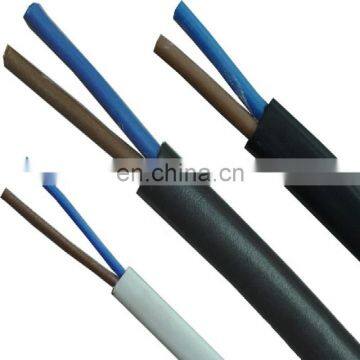

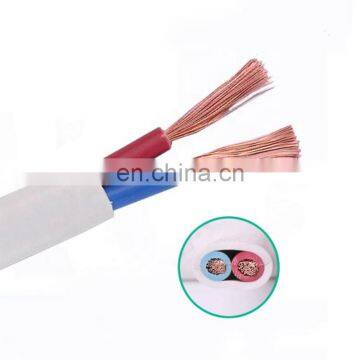

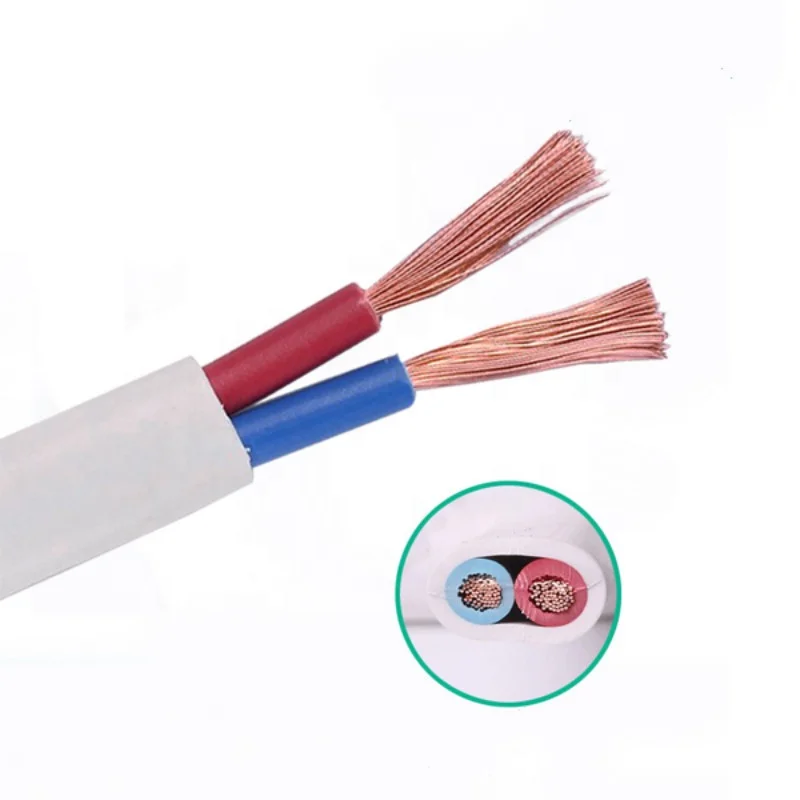

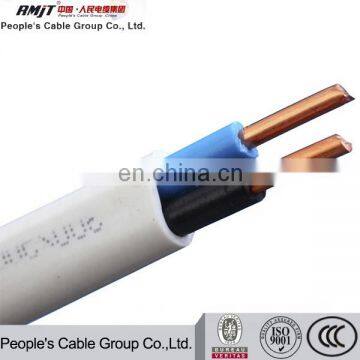

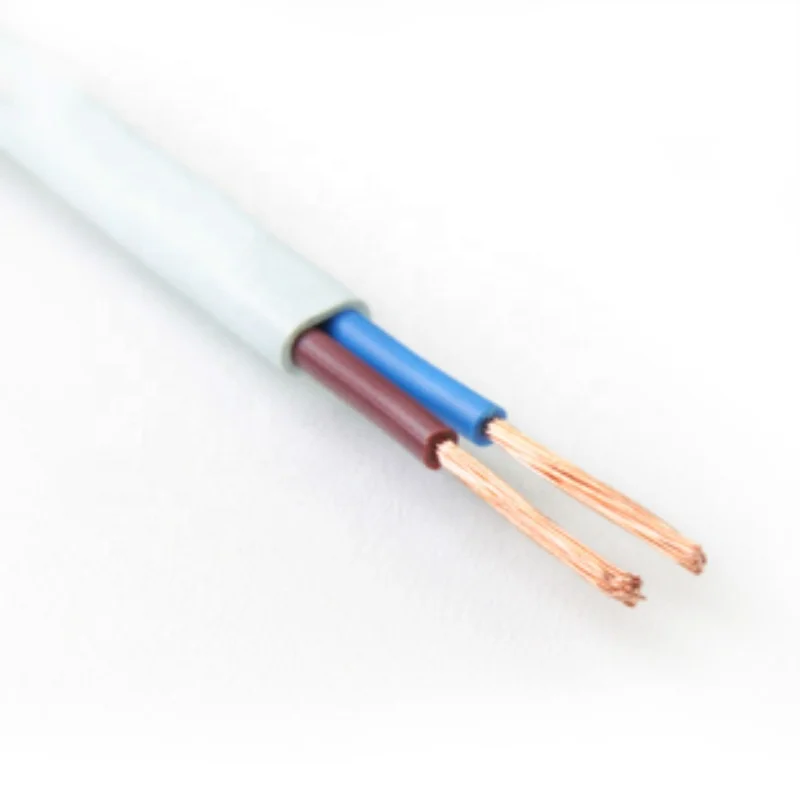

Copper Conductor RVVB 2x2.5/2x4 / 2x6mm Flat Two Core Flexible Electrical Copper Wire Cable
US$ 0.33 - 1.73
MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
RMjT
Place of Origin:
Henan, China
Model Number:
two core flexible cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stranded Flexible Copper Conductor H03VVH2-F PVC Insulated Twin Flat Electrical Wire CableUS$ 0.33 - 1.73MOQ: 100 Meters -
China Factory Price Flexible Copper Wire Cable Two Cores 300/300V Flat Electrical Wire Cable for Transmission LinesUS$ 0.33 - 1.73MOQ: 100 Meters
-
BV BVV BVR RV PVC Insulation Wire Electrical House Wiring MaterialsUS$ 0.07 - 7.7MOQ: 1000 Meters
-
0.5mm2 0.75mm2 2.5mm 2.5mm2 6mm 10mm2 16mm 16mm2 Pvc Insulated Flexible Electric Cabel WireUS$ 1.3 - 4.7MOQ: 100 Meters
-
High Voltage ABC Signal Fire Resistant Control XLPE Coaxial Power Aluminium Steel Wire Rope Copper Wire CableUS$ 28 - 36.72MOQ: 1 Roll
Brand Name
RMjT
Place of Origin
Henan, China
Model Number
two core flexible cable
Type
Insulated
Insulation Material
PVC
Conductor Material
Copper
Conductor Type
Stranded
Product Description
Product Construction.
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service Performance Of Copper Wire
1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D as cable overall diameter >25mm.
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D as cable overall diameter >25mm.
PRODUCT FEATURES
1. Low resistance and good electrical conductivity.
The core is flexible, bright in color, good in electrical conductivity, stable in voltage, hot, low in resistance and low in consumption.
2. High flexibility, bending resistance and long service life.
Environmentally friendly PVC new material skin, flexible and folding, tensile and wear-resistant, insulation and flame retardant,leaving the open flame, extinguished instantly, to ensure safe use.
3. Low eccentricity, anti-current breakdown.
Adopt advanced equipment, strict production, guarantee the low eccentricity of the wire, the skin is flexible, the thickness is even and wear-resistant, and the current is prevented from penetrating the outer skin, posing a safety hazard.
4. Anti-acid and alkali, oil resistance, moisture proof, mildew proof.
Product Model
Nominal sectional area mm2 | Conductor No/Dia. Mm | Nominal Insulated thick mm | Max overall Dia. Mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||
Cu | Al | Cu | Al | |||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - | ||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 | ||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 | ||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 | ||
10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 | ||
16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 | ||
25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 | ||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 | ||
50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 | ||
70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 | ||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 | ||
120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 | ||
150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 | ||
185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 | ||
Other Product Models
Packaging and delivery
Company Profile
People's Cable Group Co., Ltd.
People's Cable Group is a national non-regional enterprise integrating R&D, manufacturing and sales of wire and cable. Founded in 2007, it has 5 core subsidiaries, more than 80 cooperative enterprises, and more than 1,000 sales outlets nationwide. Specializing in the production of high, medium and low voltage series of wire and cable, the main products are PVC insulated power cable, fire resistant cable, flame retardant cable, control cable, rubber cable, insulated aerial cable, coaxial cable, low smoke zero halogen cable, shielding Cables, pre-branch cables, waterproof cables, rodent-proof cables, aluminum stranded wires, steel-cored aluminum stranded wires, rail transit wires and cables, PVC insulated wires, buried wires, anti-aging wires, etc., have passed ISO9001. -2008 Quality System Certification, 14001-2004 Environmental System Certification, 28001-2001 Occupational Health and Safety Management System Certification, National Compulsory CCC Certification, and National Industrial Product Production License.
Our customer
Our Global Utilities & Energy Partners
Our certification
1. What is our company's main advantage?
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer’s requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer’s requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
