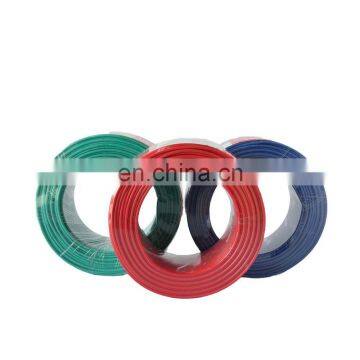

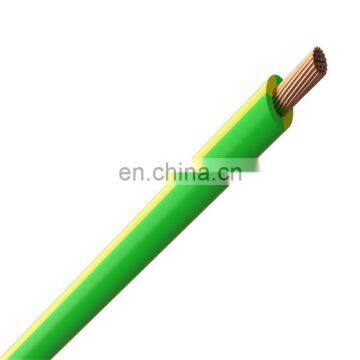

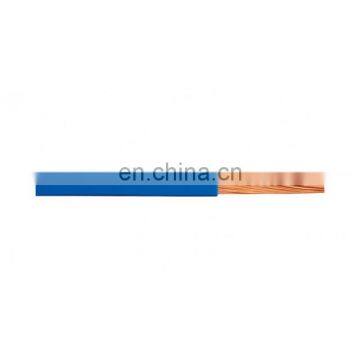

Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > H05V-K H07V-K Single Core PVC Flexible Electrical Wire
US$ 9.5 - 10
MOQ: 100 Rolls
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
RV
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
450/750 V H07V-U Solid Copper Conductor BV Electrical WireUS$ 10 - 3,500MOQ: 100 Rolls -
10mm 1/0 AWG Welding Rubber Insulation Electric Cable 3x4mm Flat Wire CableUS$ 0.1 - 9MOQ: 1000 Meters
-
Chinese Factory Price 1.0mm2 PVC Insulation Building Cable Copper WireUS$ 7 - 8MOQ: 10 Rolls
-
China Manufacture Copper Core PVC Insulated 2.5mm 4mm 6mm Electrical WireUS$ 0.1 - 15MOQ: 1000 Meters
-
Flat Electric Cable 25 mm Home Wiring 2.5mm Twin And Earth CableUS$ 0.3 - 1MOQ: 1000 Meters
Brand Name
RMJT
Place of Origin
Henan, China
Model Number
RV
Type
Low Voltage
Application
Construction
Insulation Material
PVC
Conductor Material
Copper
Product Description
Application
PVC insulation wires are used for electricity transmission for building, construction, lighting and so on.
Specification
450/750V PVC Insulation building wire to BS 6004 Standard Single Core PVC Insulated
Notes
Rated voltage: 300/500V 450 / 750v Conductor: BS 6360 Class 5,stranded, annealed copper wire Insulation: BS 7655TII PVC Compound Insulation Color: Red, Yellow, blue, black, green, white, purple, grey, orange, pink Operating temperature: 0 to 70 degrees C Min bending radius: 6xoverall insulated diameter Standard: BS 6004 Code: H05V-K, H07V-K
Rated voltage: 300/500V 450 / 750v Conductor: BS 6360 Class 5,stranded, annealed copper wire Insulation: BS 7655TII PVC Compound Insulation Color: Red, Yellow, blue, black, green, white, purple, grey, orange, pink Operating temperature: 0 to 70 degrees C Min bending radius: 6xoverall insulated diameter Standard: BS 6004 Code: H05V-K, H07V-K
Nominal cross-sectional area mm2 | Conductor (No./mm) | Approx. Dia. of cable (mm) | Mass of wire (Kg/km) | Conductor DC resistance at 20°C (Ω/km) | Conductor DC resistance at 70°C (Ω/km) | |||||
H05V-K | ||||||||||
0.5 | 16/0.2 | 2.5 | 9.5 | 39 | 0.014 | |||||
0.75 | 24/0.2 | 2.7 | 13.1 | 26 | 0.013 | |||||
1 | 32/0.2 | 2.8 | 16 | 19.5 | 0.011 | |||||
H07V-K | ||||||||||
1.5 | 30/0.25 | 3.4 | 21.3 | 13.3 | 0.01 | |||||
2.5 | 49/0.25 | 4.1 | 32.5 | 7.98 | 0.009 | |||||
4 | 56/0.3 | 4.8 | 49.6 | 4.95 | 0.007 | |||||
6 | 84/0.3 | 5.3 | 69.3 | 3.3 | 0.006 | |||||
10 | 84/0.4 | 6.8 | 117.8 | 1.91 | 0.0056 | |||||
16 | 126/0.4 | 8.1 | 171.2 | 1.21 | 0.0046 | |||||
25 | 196/0.4 | 10.2 | 268.8 | 0.78 | 0.0044 | |||||
35 | 276/0.4 | 11.7 | 359.2 | 0.554 | 0.0038 | |||||
50 | 396/0.4 | 13.9 | 505.3 | 0.386 | 0.0037 | |||||
70 | 360/0.5 | 16 | 720.5 | 0.272 | 0.0032 | |||||
Testing equipment
Customer Photos

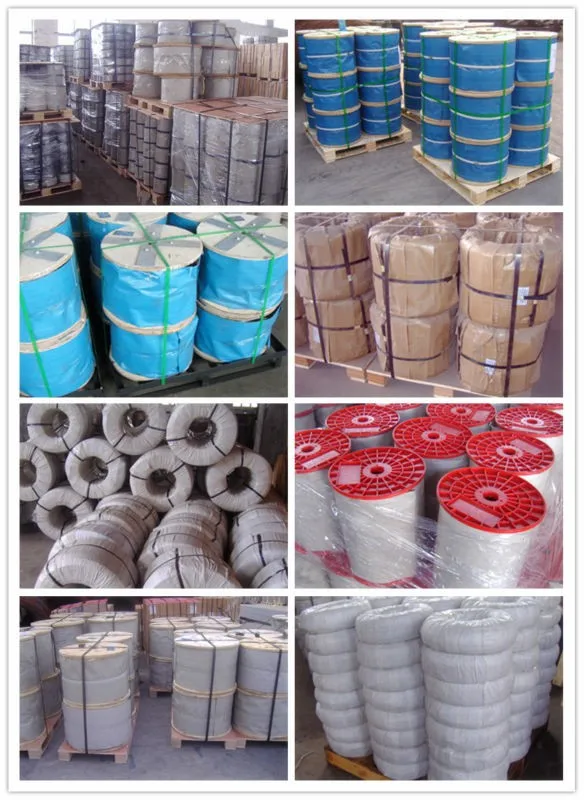

Pakaging & Shipping
