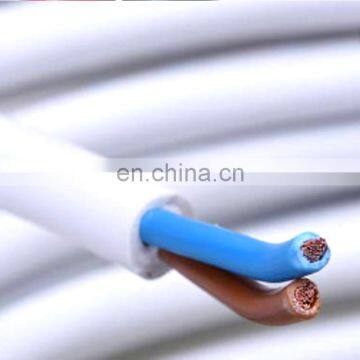

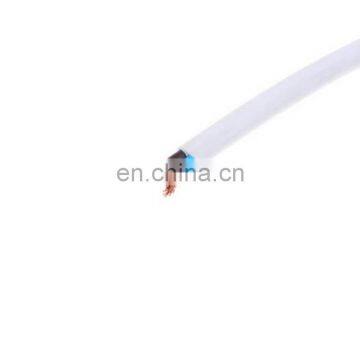

Resistance Heating Flexible Electrical Wiring 2 Core Wire
USD $0.3 - $1.3
/ Meter
500 Meters(Min.Order)
- 2147483647 Meter / Meters per Month
- Qingdao Shanghai
- T/T Credit Card
You May Like
- 12 gauge thhn Flexible House Wiring Aluminium Copper PVC Electrical Wires Cable
- Manufacturer 1.5sq mm copper core pvc insulation flexible wire
- 25mm earth grounding cable copper ground cable pvc cable
- flexible parallel wire stranded/solid copper cable 2 core speaker cable
- 15mm2 50mm2 95mm2 150mm2 H07V-K electrical wire cable bs6004
- 7*29 copper flexible electrical wire
Product Details
Brand Name: | RMjT | Place of Origin: | Henan, China | Model Number: | wiring electrical wire |
Type: | Insulated | Application: | Heating | ||
Conductor Material: | Copper | Conductor Type: | Stranded |
Product Description
Product Description
Product Construction
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service Performance Of Copper Wire
1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.
European Standard Electric Wire
H07V-U , 450/750 PVC Insulated Building Wire, BS Standard
H03VH-H , 300/300V PVC Insulated Flexible Parallel Wire
H03VVH2-F , H05VVH2-F , PVC insulated PVC sheathed flat wire
300/300V PVC Insulated Flexible Twisted Cord
H05V-K , H07V-K , PVC Insulated Flexible Wire
H07Z-U , 450/750 LSHF Compound Insulated Building Wire.BS Standard
H05Z-K , H07Z-K , LSHF Compound Insulated Flexible WirefBS Standard
Flat Twin and Earth Wire-ECC Cables, BS Standard
Applications
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places.
They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U).
Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
The core can be divided into four types: hard, soft, mobile and extra soft.
There are four types of cores: single core, two core, three core and four core.
Product Model
Part Production Range of Insulated Electrical Wire
Nominal sectional area mm2 | Conductor No/Dia. Mm | Nominal Insulated thick mm | Max overall Dia. Mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||
Cu | Al | Cu | Al | |||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - | ||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 | ||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 | ||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 | ||
10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 | ||
16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 | ||
25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 | ||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 | ||
50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 | ||
70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 | ||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 | ||
120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 | ||
150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 | ||
185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
Notice
In addition, we have other models and sizes, please contact us if you need, thank you.
