Manufacturer 7 20 8mm Factory Pricing Insulated Electrical Copper Wires
US$ 0.03 - 3.7
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RMjT
Place of Origin:
Henan, China
Model Number:
Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pvc Insulated Cable 0.5mm2 ISO9001 ISO14001Various Sizes Electrical WireUS$ 0.1 - 1.7MOQ: 1 Meter -
300 / 500V PVC Insulated Copper Wire Building Flat Wire CableUS$ 0.1 - 5MOQ: 1 Meter
-
House High Purity 3 Core 3 mm 15mm Power Electrical Cable Insulated Copper WireUS$ 0.1 - 0.87MOQ: 1000 Meters
-
Various Cross-sectional Area Pvc Insulated Thw Wire Electric Building WireUS$ 0.1 - 5MOQ: 1000 Meters
-
Glass Braiding Silicone Rubber Wire Electric Heating Cable Electric Heating Wire SpiralUS$ 0.1 - 5MOQ: 1 Meter
Brand Name
RMjT
Place of Origin
Henan, China
Model Number
Wire
Type
Insulated
Insulation Material
PVC
Conductor Material
Copper
Conductor Type
Solid
Product Description

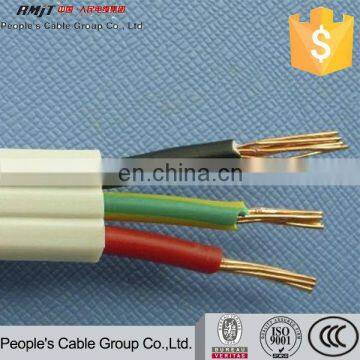

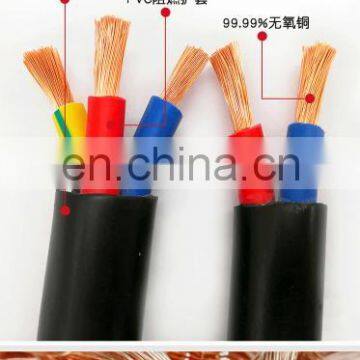

Manufacturer 7 20 8mm Factory Pricing Insulated Electrical Copper Wires
Insulated wires generally consist of a conductive core, an insulating layer, and a protective layer. The core can be divided into four types: hard, soft, mobile and extra soft. There are four types of cores: single core, two core, three core and four core. The insulating layer is generally made of rubber, plastic, and the like. It is widely used in various instruments, telecommunications equipment, power lines and lighting lines with AC voltage below 500V and DC voltage below 1,000V.
Oxygen cabin wires often use BV, BX, RV, RVV series wires. | ||
BV | copper core PVC insulated wire, long-term allowable temperature 65 ℃, minimum temperature -15 ℃, working voltage AC 500V, DC 1000V, fixed laying indoors or outdoors, can be exposed or concealed. | |
BX | copper-cored rubber insulated wire, with a maximum operating temperature of 65 ℃, applied indoors. | |
RV | Polyvinyl chloride insulated single-core flexible cord, the highest use temperature is 65 ℃, the lowest use temperature is -15 ℃, the working voltage is AC 250V, DC 500V, used as the internal wiring of instruments and equipment | |
RVV | copper core PVC insulated and sheathed flexible wire, allowing long-term working temperature of 105 ℃, working voltage of AC 500V, DC 1000V, used for humid, high mechanical protection requirements, often moving and bending occasions. | |
Product Structure
The wire and cable are composed of a conductor, an insulation layer, a shielding layer and a protective layer.
Conductor
The conductor is the conductive part of the wire and cable, which is used to transport electrical energy and is the main part of the wire and cable.
Insulation
Insulation layer is to electrically isolate the conductor from the ground and conductors of different phases from each other to ensure the transmission of electrical energy. It is an indispensable part of the wire and cable structure.
Shield
Wires and cables of 15KV and above generally have conductor shields and insulation shields.
The protective layer
The function of the protective layer is to protect the wires and cables from the invasion of foreign impurities and moisture, and to prevent external power from directly damaging the power cables.
Code | Name | Usage |
RVVP | Copper core PVC insulated shielded PVC sheathed flexible cable voltage 300V / 300V 2-24 core | Instrument, meter, intercom, monitoring, control installation |
KVVP | PVC sheathed braided shielded cable | Signal transmission, control, and measurement of electrical appliances, meters, and power distribution devices |
SYWV (Y)、SYKV | Coaxial cable) single oxygen-free round copper wire + physical foamed polyethylene (insulation) + (tin wire + aluminum) + polyvinyl chloride (polyethylene | Cable for CATV and Broadband Network |
RVV (227IEC52/53) | PVC insulated flexible cable | Household appliances, small power tools, meters and power lighting |
AVVR | PVC Sheath | Installation flexible cable |
RV 、RVP | PVC insulated cable | Connecting cables for household appliances, small power tools, instruments, meters and power lighting |
RVS 、RVB | Parallel or twisted multiple strands of flexible cord | |
BV 、BVR | PVC insulated cable | Suitable for electrical instrumentation equipment and power lighting fixed wiring |
KVV | PVC insulated control cable | Signal transmission, control, and measurement of electrical appliances, meters, and power distribution devices |
SFTP | Twisted pair | Transmission of telephone, data and information networks |
SYV | Coaxial cable | Transmission of radio frequency signals in wireless communication, broadcasting, monitoring system engineering and related electronic equipment (including comprehensive coaxial cables) |
SDFAVP 、SDFAVVP、SYFPY | Coaxial cable, special for elevator | |
JVPV 、JVPVP、JVVP | Copper core PVC insulated and sheathed copper wire braid | Computer control cable |
Part Production Range of XLPE insulated power cable
Model | Name | Application | ||
Cu | Al | |||
YJV | YJLV | XLPE insulated PVC sheathed power cable | For laying aerial indoors , in-tunnel or cable trench | |
YJY | YJLY | XLPE insulated PE sheathed power cable | ||
YJV22 | YJLV22 | XLPE insulated steel tape armored PVC sheathed power cable | For laying indoors , intunnel or cable trench | |
YJV23 | YJLV23 | XLPE insulated steel tape armored PE sheathed power cable | ||
YJV32 | YJLV32 | XLPE insulated thin steel wire armored PVC sheathed power cable | For laying high-drop, well or underwater | |
YJV33 | YJLV33 | XLPE insulated thin steel wire armored PE sheathed power cable | ||
YJV42 | YJLV42 | XLPE insulated thick steel wire armored PVC sheathed power cable | Able to bear external mechanical forces, for laying in silo into sea | |
YJV43 | YJLV43 | XLPE insulated thick steel wire armored PE sheathed power cable | ||
Nominal sectional area mm2 | Conductor No/Dia. Mm | Nominal Insulated thick mm | Max overall Dia. Mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||||
Cu | Al | Cu | Al | |||||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - | ||
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - | ||
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 | ||
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 | ||
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 | ||
10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 | ||
16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 | ||
25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 | ||
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 | ||
50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 | ||
70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 | ||
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 | ||
120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 | ||
150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 | ||
185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 | ||
Packaging and Shipping
Our Company
People's Cable Group Co., Ltd.
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
FAQ
Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
