Home > Products > Electrical Wire/Cable(Housing Wire) > High quality BV 6mm2 solid copper conductor electric wire cable

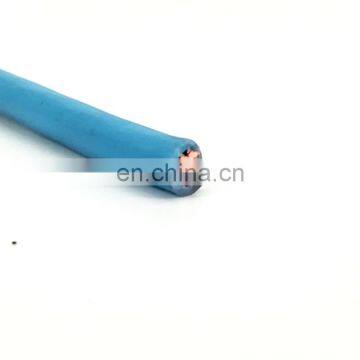

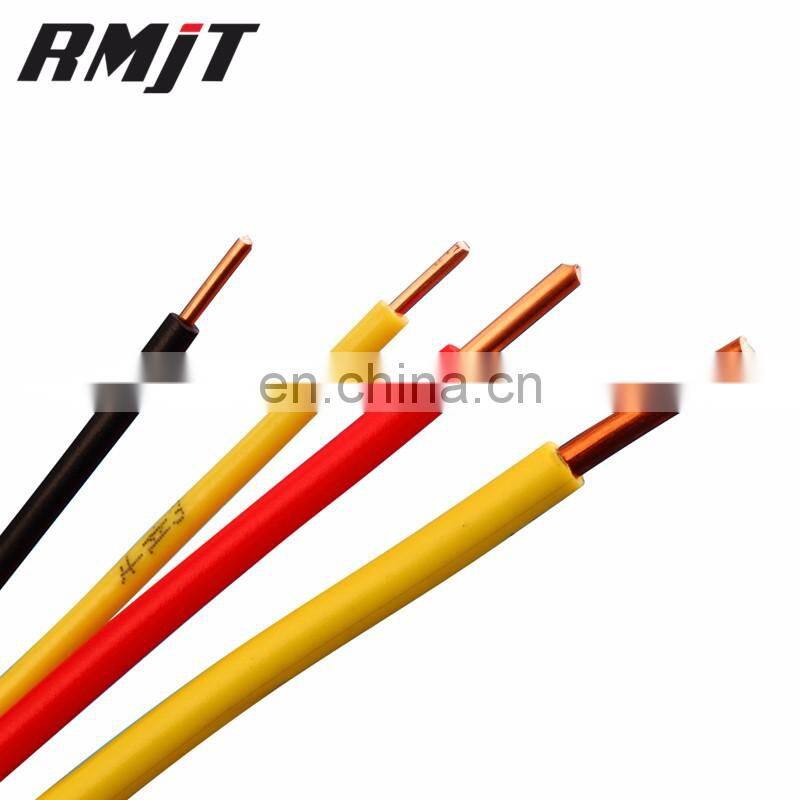

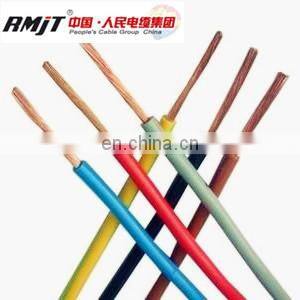

High quality BV 6mm2 solid copper conductor electric wire cable
- Qingdao
- T/T Credit Card
You May Like
-
Insulated Electrical Wire Suppliers THHN TW THW Cable Electrical Building Wire
-
2.5mm twin and earth cable BVVB
-
300/500V 450/750V Copper Core PVC insulated mica tape fire resistant wire for building
-
450/750V single core pvc insulated 2.5mm 4mm 6mm copper electric wire for house building
-
450/750V Copper Core PVC Insulated Electrical Cable Wire 10mm For House Building
-
H07V-U H07V-R H07V-K single core pvc electric wire for house wiring cable
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | BV | Type | Low Voltage | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description

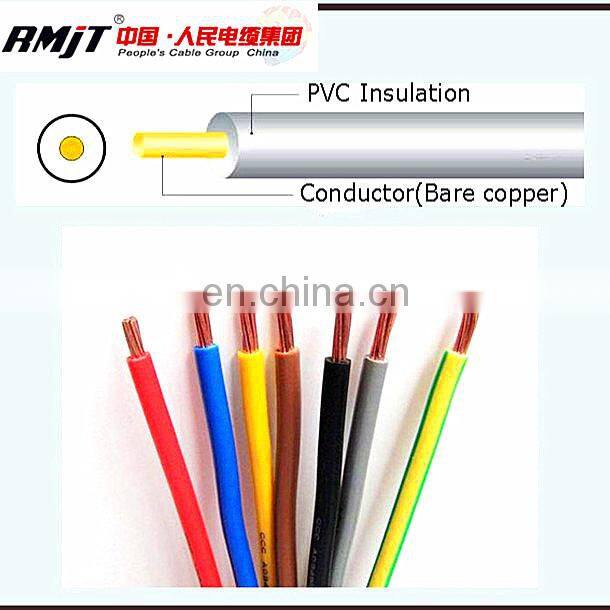

High quality BV 6mm2 solid copper conductor electric wire cable
MAIN CHARACTERISTICS:
1. Solid copper conductor
2. AC 450/750V
3. 0.75-240mm²
4. Rated temperature: 65~75°C
5. CCC IEC ISO (IEC 60227-1997, IEC 227-1979)
6. Design and manufacture according to the requirements of customers.
NOMINAL AREA SECTION OF CONDUCTOR:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2
APPLICATION:
The solid copper conductor electric wire cable is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V, 300/350V, 300/300V
Specification of solid copper conductor electric wire cable
|
Model |
Name |
|
BV |
Copper core PVC insulated electric wire |
|
BLV |
Aluminum core PVC insulated electric wire |
|
BVR |
Copper core PVC insulated flexible electric wire |
|
BVV |
Copper core PVC insulated PVC sheathed round electric wire |
|
BVVB |
Copper core PVC insulated PVC sheathed parallel electric wire |
|
BLVVB |
Aluminum core PVC insulated PVC sheath PARALLEL electric wire |
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Standard of solid copper conductor electric wire cable:
ccording to GB/T 5023,equivalent to IEC60227.
it can also be made complying with ASTM,BS,DIN standard.
besides,we can design and manufacture the products to the buyer's requirement.
SERVICE PERFORMANCE:
1.Rated voltage:450/750v,300/500v,300/300v.
2.Long-term working temperatre not be higher than 70c
3.When laying the cable,the ambient temperature should not lower than 0c.
4.Minimum bending radius:Bending radius big than 4D as cable overall diameter less than 25mm
