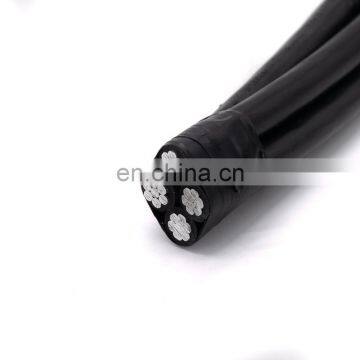

ABC XLPE overhead cable with ACSR message
1.XLPE overhead cable introduction:
1. It is used for transmitting electric power overhead, extensively used in rebuilding ofurban and forest region electrified wire netting.
2. It is ideal or rural distribution and specially attractive for difficult areas such as hilly areas, coasted areas.
3. It is also best choice fr places with narrow lanes and bylanes.
4. Long-term operating temperature not to exceed 70°c fr PVC insulated conductors and 90 °c for XLPE insulated
5.The insulated material of insulated aerial cable: climate-resistant PVC, climate-resistant PE and XLPE.
6.The rated voltage of insulated aerial cable: 0.6/1kv, 3.6/6kv, 6/10kv, and each used in the aerial transmission circuit with different rated voltage.
2.Standard:
GB/T 1179-2008 (it is equal to IEC207-1966 and IEC 209-1966)
ASTM - B 232, BS 215 Part2, IEC 61089
ASTM - B 399, ASTM - B 231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018
3.Types and application:
Type |
Name |
Main application |
JKYJ |
Copper conductor XLPE insulated overhead cable |
Laid Overhead, the flexible copper core products is suitable for transformer down-lead |
JKTRYJ |
Copper conductor XLPE insulated overhead flexible cable |
|
JKLYJ |
Aluminum conductor XLPE insulated overhead cable |
|
JKLHYJ |
Aluminum alloy conductor XLPE insulated overhead cable |
Certain distance should be kept between the cable and trees when laid, and the cable is permitted to touch the tree for short time when the cable working |
JKY |
Copper conductor PE insulated overhead cable |
|
JKTRY |
Copper conductor PE insulated overhead flexible cable |
|
JKLY |
Aluminum conductor PE insulated overhead cable |
|
JKLHY |
Aluminum alloy conductor PE insulated overhead cable |
|
JKLYJ/B |
Aluminum conductor XLPE insulated overhead cable |
Laid overhead, Certain distance should be kept between the cable and trees when laid, and the cable is permitted to touch the tree frequently when the cable working |
JKLHYJ/B |
Aluminum alloy conductor XLPE insulated overhead cable |
|
JKLYJ/Q |
Aluminum conductor light XLPE insulated overhead cable |
Laid overhead, Certain distance should be kept between the cable and trees when laid, and the cable is permitted to touch the tree for short time when the cable working |
JKLHYJ/Q |
Aluminum alloy conductor light XLPE insulated overhead cable |
|
JKLY/Q |
Aluminum conductor light PE insulated overhead cable |
|
JKLHY/Q |
Aluminum alloy conductor light PE insulated overhead cable |

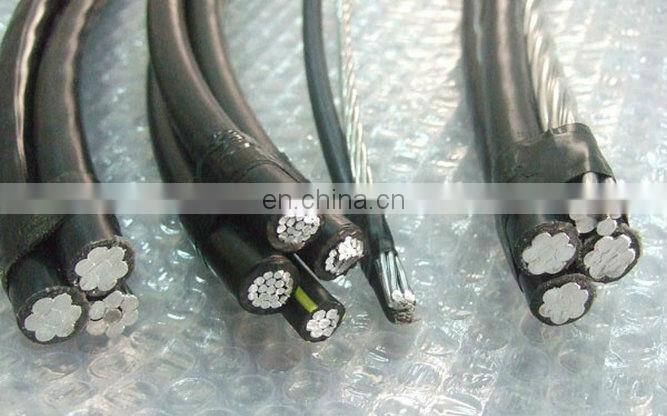

ABC XLPE overhead cable with ACSR message

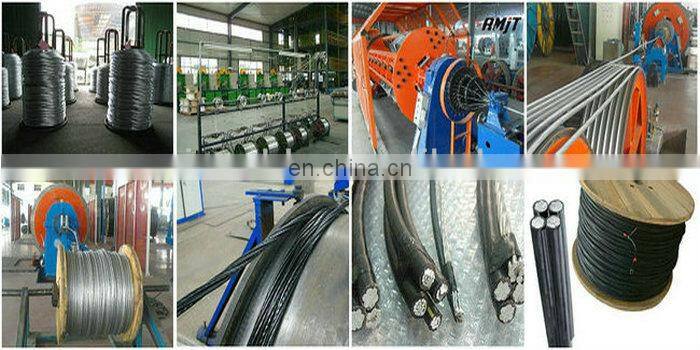

production line of xlpe overhead abc cable

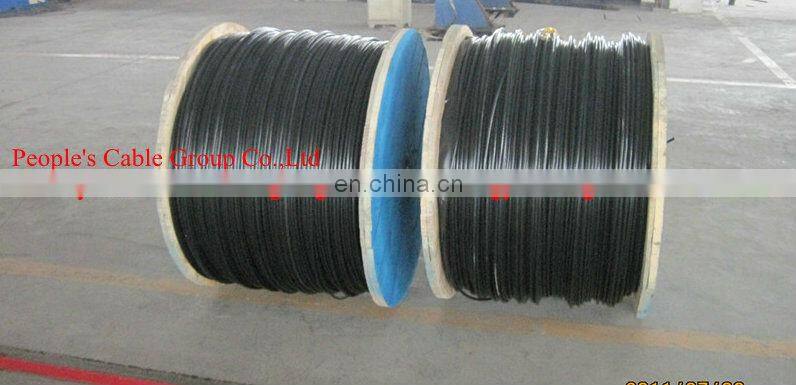

packing of xlpe overhead abc cable
