Home > Products > Overhead cable > RMjT Xlpe 25kv 50mm2 royal 5 wire xple acsr power cable

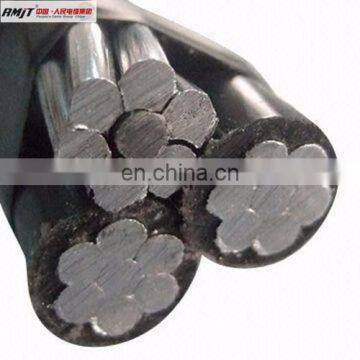

RMjT Xlpe 25kv 50mm2 royal 5 wire xple acsr power cable
US$ 0.37 - 2.37
/ Meter
100 Meters(Min. Order)
- T/T Credit Card
You May Like
-
XLPE insulated power cable
-
0.6/1kv 3 1c x 240mm2 2.5mm Aluminum Wire Flexible XLPE Electrical Power Cables
-
price aluminum electrical stranded wire cable
-
18mm electro galvanized steel wire armoured cable rope
-
Aluminum Conductor Overhead Lines XLPE PE Insulated Electric Cable Aerial Bundle ABC Cable
-
2 Core 4x16mm2 4x70mm2 11kv Medium Voltage XLPE Insulated Aluminum Conductor Overhead Electric Wires 4 Core 95mm ABC Cable
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | YJLV22,YJV32,YJLV32,VV32 | |||
Product Description

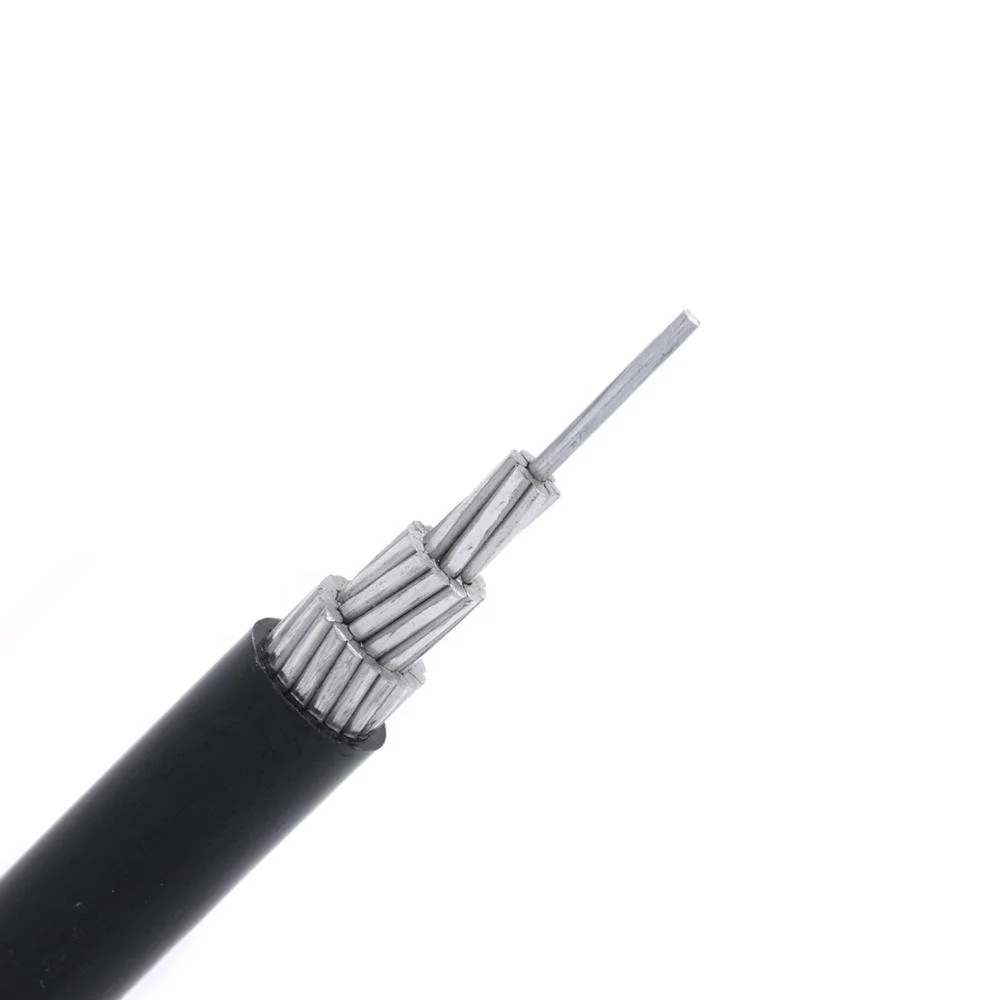

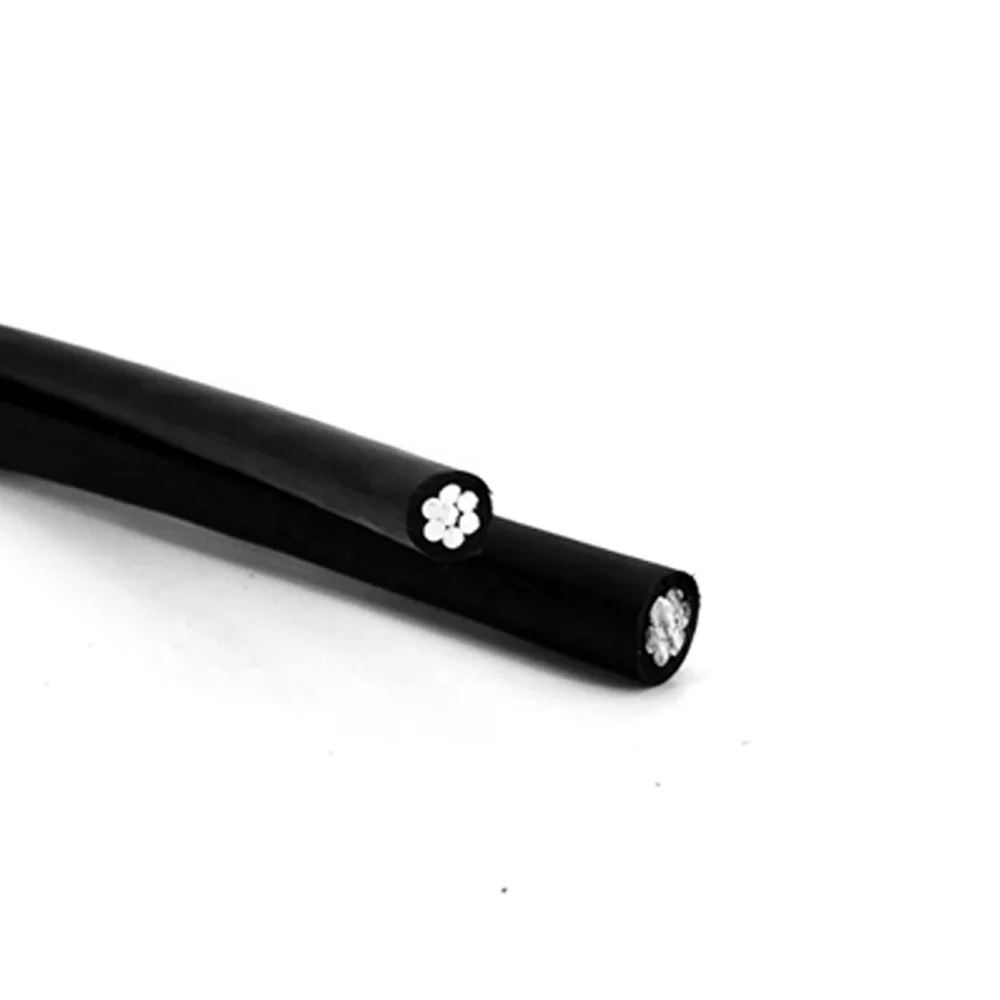

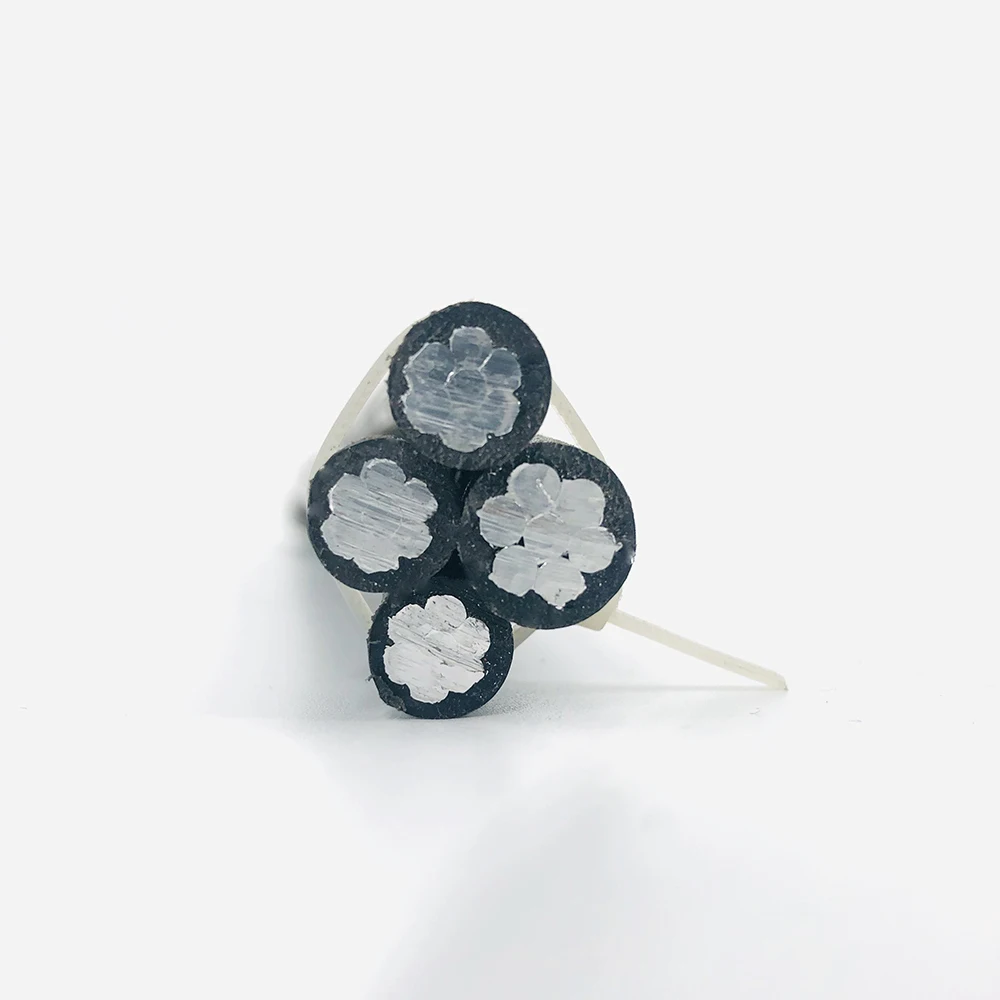

Xlpe 25kv 50mm2 royal 5 wire xple acsr power cable
Overhead insulated cable consists of compacted copper, aluminum (aluminum alloy) conductor, inner shield, fire-resistant insulation and outer shield. It only has the power transmission characteristics of power cables and also has the strong mechanical properties of overhead cables.
Implementation Standards | Product |
GB/T12527-2008 | Overhead insulated cables with a rated voltage of 1kV and below |
GB/T14049-2008 | Overhead insulated cable with rated voltage of 10kV |
GB/T1179-2008 | Round wire concentric gallows overhead conductor |
Product Use Characteristics
1. Rated voltage:
* 1kV, 10kV
2. Allowable working temperature of cable:
* 70 ℃ for PVC insulation ;
* 90 ℃ for XLPE insulation ;
* 70 ℃ for PE insulation ;
* 75 ℃ for HDPE insulation ;
3. When short circuit occurs (maximum time does not exceed 5 seconds), the maximum temperature of the cable:
* 160 ℃ for PVC insulation ;
* 150 ℃ for HDPE insulation ;
* 250 ℃ for XLPE insulation ;
* 130 ℃ for PE insulation ;
4. The ambient temperature for cable laying shall not be lower than -20 ℃, and the installation laying temperature shall not be lower than 0 ℃.
5. Allowable bending radius of cable:
* Cables with a rated voltage less than 1kV: cables with an outer diameter (D) less than 25mm, not less than 4D; cables with an outer diameter (D) of 25mm or more, not less than 6D
* 10kV rated voltage cable: single-core cable 20 (D + d) ± 5% mm, multi-core cable 15 (D + d) ± 5 mm.
* 1kV, 10kV
2. Allowable working temperature of cable:
* 70 ℃ for PVC insulation ;
* 90 ℃ for XLPE insulation ;
* 70 ℃ for PE insulation ;
* 75 ℃ for HDPE insulation ;
3. When short circuit occurs (maximum time does not exceed 5 seconds), the maximum temperature of the cable:
* 160 ℃ for PVC insulation ;
* 150 ℃ for HDPE insulation ;
* 250 ℃ for XLPE insulation ;
* 130 ℃ for PE insulation ;
4. The ambient temperature for cable laying shall not be lower than -20 ℃, and the installation laying temperature shall not be lower than 0 ℃.
5. Allowable bending radius of cable:
* Cables with a rated voltage less than 1kV: cables with an outer diameter (D) less than 25mm, not less than 4D; cables with an outer diameter (D) of 25mm or more, not less than 6D
* 10kV rated voltage cable: single-core cable 20 (D + d) ± 5% mm, multi-core cable 15 (D + d) ± 5 mm.
Note: D-actual outer diameter of cable ; d-actual outer diameter of cable conductor
Model | Number of cores | Cross-sectional area |
JKV,JKLV,JKY,JKLY,JKY,JKL(G)YJ | 1 | 16-240 |
2,4 | 10-120 | |
JKV,JKLV,JKLHV,JKY,JKLY,JKLHY,JKYJ,JKLYJ,JKLHYJ | 1 | 10-240 |
2,4 | 10-240 | |
JKLV,JKLY,JKLYJ | 3+k | 10-120 |
BS1-JKV,BS1-JKLV,BS1-JKY,BS1-JKLY BS1-JKYJ,BS1-JKLYJ | 3+k | 2.5-50 |
JKYJ,JKTRYJ,JKLYJ,JKLHYJ | 1 | 10-300 |
3,(3+k) | 25-300 (K:25-120) | |
JKYJ,JKLYJ,JKY,JKLY,JKLYGYJ | 1 | 10-300 |
3 | 25-300 | |
JKY,JKTRY,JKLY,JKLHY,JKLYJ/Q,JKLHYJ/Q,JKLY/Q,JKLHY/Q | 1 | 10-300 |
JKLYJ/Q,JKLY/Q,JKLYJ/B | 3+k(A) or 3+k(B) | 25-300 |
JKLGV | 1 | 10/2~240/40 |
JKLGY | 10/2~240/40; 25/4~300/50 | |
JKLGYJ | ||
JKLGYJ/Q | 25/4~300/50 | |
JKLGY/Q | 25/4~300/50 |
Low-voltage Overhead insulated cables aluminium with a rated voltage of 1kV and below are suitable for overhead power lines with a rated voltage of 0.6% 2F1KV and below, and can be used as fixed laying or household wires.
Medium voltage Overhead XLPE insulated cables with a rated voltage of 10kV and below are suitable for overhead power transmission line transmission.10kV transmission lines for power grid construction and transformation are preferred.
Medium voltage Overhead XLPE insulated cables with a rated voltage of 10kV and below are suitable for overhead power transmission line transmission.10kV transmission lines for power grid construction and transformation are preferred.
Steel core aluminum stranded wire core overhead insulated cables with rated voltage of 10kV and below are suitable for overhead power distribution lines with AC rated voltage of 10kV and below.
3 PHASE CABLE
XLPE INSULATED ELECTRIC CABLE
CABLES ALUMINIUM
XLPE ABC CABLE
AERICAL BUNDLE CABLE
ABC OVERHEAD CABLE
ABC CABLE
OVERHEAD INSULATED CABLE
XLPE ELECTRIC POWER CABLE
