Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | ABC cable | Type | High Voltage | |
| Jacket | PVC | Conductor Material | Aluminum |
Product Description
installed abc cable voltage drop abc aluminum cable 10mm2
1). Standard: IEC60502, NF C33-209, GB 12527-90 ASTM
2). Rated voltage: 0.6/1kV,10kV, 33kv
3). Specification: Concentric strand aluminum wires conductor(AAC or AAAC Conductor),XLPE or HDPE or PVC insulated power cable.
4). Application: The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204
We can also manufacture ABC cable according to customers special requirements.

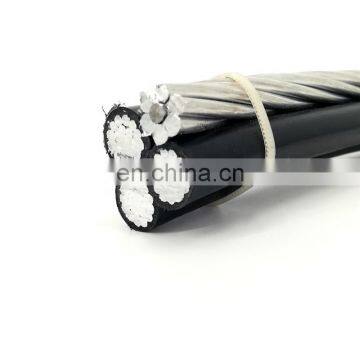

ABC Cable with AAC message core
|
SPEC mm2 |
Conductor structure |
Insulation Material |
Insulation Thickness (mm) |
Approx overall diameter (mm) |
Approx weight (kg/km) |
|
|
Phase (compacted Al) |
Neutral (alloy) |
|||||
|
No./mm |
No./mm |
|||||
|
1*16+1*16 |
7/1.72 |
7/1.72 |
XLPE
(HDPE) |
1.2 |
12.5 |
110.1 |
|
1*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
14.9 |
163.9 |
|
|
1*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
17.5 |
229.0 |
|
|
1*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
20.1 |
300.0 |
|
|
1*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
23.6 |
423.2 |
|
|
1*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
27.6 |
585.4 |
|
|
2*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
14.2 |
175.8 |
|
|
2*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
16.7 |
258.4 |
|
|
2*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
19.7 |
361.2 |
|
|
2*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
22.5 |
472.1 |
|
|
2*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
26.1 |
658.3 |
|
|
2*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
30.5 |
908.2 |
|
|
3*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
16.3 |
241.5 |
|
|
3*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
19.1 |
353.6 |
|
|
3*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
22.5 |
493.5 |
|
|
3*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
25.7 |
644.1 |
|
|
3*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
29.7 |
895.2 |
|
|
3*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
34.6 |
1233. |
|
