t bar steel

FOB Price

USD $800 - $1,000 / Ton

25 Tons(Min.Order)

Supply Ability 500 Metric Ton / Metric Tons per Month
Port Tianjin Qingdao Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ZZ	Place of Origin:	Tianjin, China	Model Number:	ZZ200x200
Standard:	AISI, ASTM, BS, DIN, GB, JIS
Grade:	Q235B/Q345B/G350

Product Description

General Description

We Fabricate&Supply better in the T bars !

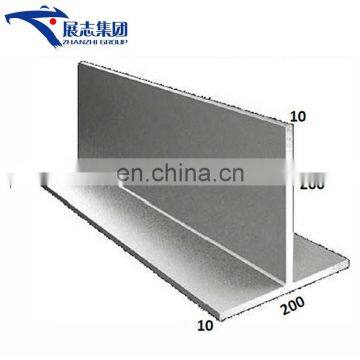

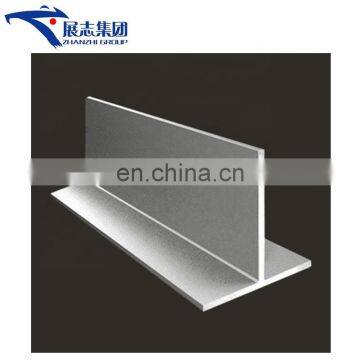

Product name	Galvanized Steel T bar
Materials	Q23B Q345B SS400
Technique	Welded and Galvanized
Flange thickness	6mm-35mm
Length	0.9m-12m or customized
Surface	Black,painting or Hot dip Galvanized
MOQ	25 tons/container
Shipping terms	FOB/CIF
Payment terms	T/T,L/C ,O/A
Delivery	Within 30 days after received advance payment or L/C

Hot dip galvanised steel T bar

*Description*	*Size*	*Standard Lengths*
Galvanised Steel T bar	200x6(H), 200x6(V) mm	900, 1200, 1300, 1400, 1500, 1600, 1800, 2100mm
Galvanised Steel T bar	200x6(H), 200x8(V)mm	2400, 2700, 3000, 3300, 3600, 3900mm
Galvanised Steel T bar	200x6(H), 200x10(V)mm	4200, 4500, 4800, 5100, 5400, 5700mm
Galvanised Steel T bar	200x10(H), 200x10(V)mm	5100, 5400, 5700, 6000, 6300, 7200mm
Galvanised Steel T bar	200x10(H), 250x12(V)mm	5200,5400, 6000mm (can be cut to length)
Galvanised Steel T bar	300x10(H), 250x10(V)mm	6000mm (can be cut to length)
Galvanised Steel T bar	Custom	Any size or length

All of our lintel and tbar range include the following

features and benefits;

• Fully hot dip galvanised to AS/NZS4680

• R3 Durability Rating to AS/NZS2699.3

• Full product warranty

• Fully engineered

• Compliant with relevant Australian Building Codes & Standards

• Labelled & Bar Coded (excludes custom lines)

Other related products we supply

DESCRIPTION	SIZE	STANDARD LENGTHS
Galvanised Flat Bar	85x7	800, 900, 1000, 1100, 1200mm
Galvanised Angle (hot rolled )	100x100x6/8/10	Cut to length
Galvanised Angle (hot rolled )	150x100x10mm	Cut to length
Galvanised Angle (hot rolled )	200x100x10mm	Cut to length
Galvanised Angle (hot rolled /welded)	225x100x10	Cut to length

Key words:

37+ years' experience

20+ subsidiaries

900+ sales officers

5 proccessing centers

40+ great large state-owned mills

60,000+customers in domestic and overseas market

4000,000+ MT production per year

10 billion USD of annual turnover

Top 100 private-owned steel enterprises in China

Generally speaking,our Group has been specialized in industrial steel for more than 37 years since 1982,with more than 900 sales officers and 20 subsidiaries spread over costal and inland cities.

Meanwhile we got 5 large proccessing centers/warehouses in Shanghai,Quanzhou,Xiamen and Xi'an,to supply nationwide market

Domestic Supply Chain:Mills-proccessing centers-End users

Overseas Supply Chain:Mills-proccessing centers-investment manufacturers-overseas market

This model above support us supplying high-controllable quality products with most competitive pricing,so that we can pass benefits to our customers.

Strategic partners

Selected Clients

Products Show

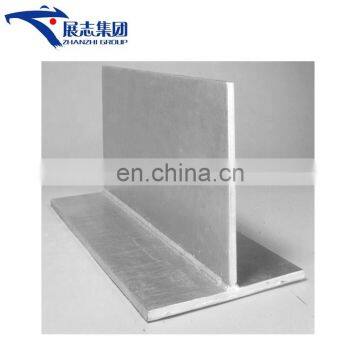

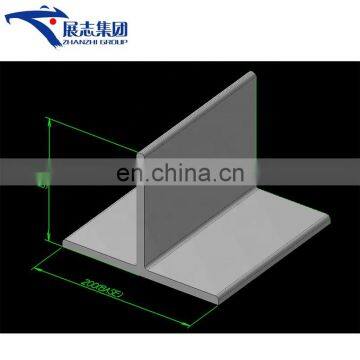

Hot Dip Galvanised Traditional T Bars

--Show galleries

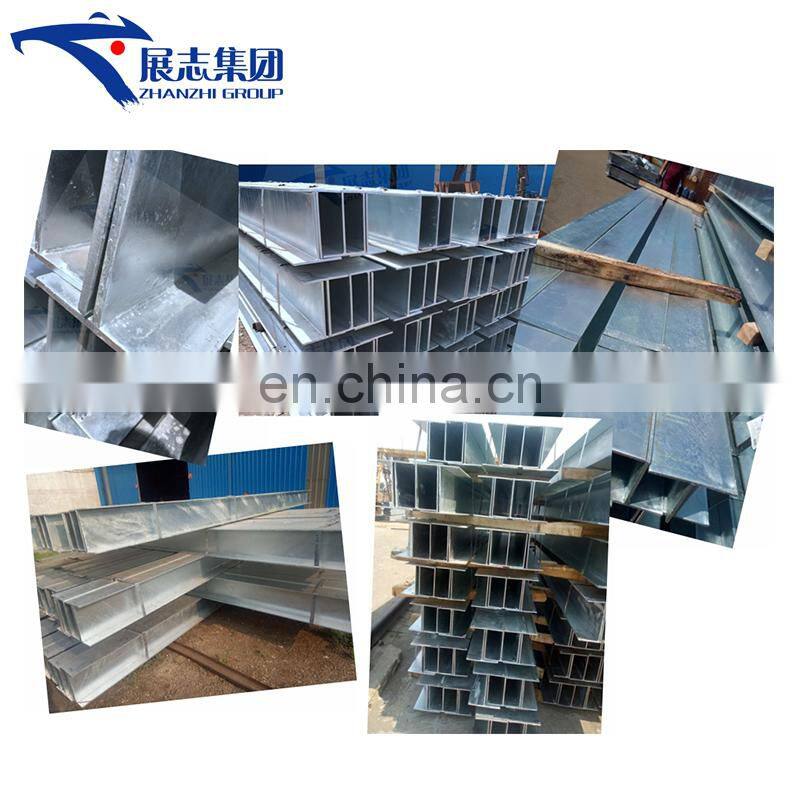

Hot Dip Galvanised T Bars

Hot Dip Galvanised T Bars

-Welded steel T bars before galvanizing

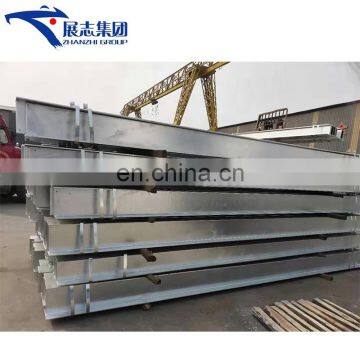

Welded steel T bars in warehouse / yard

Welded steel T bars in the work shop

Galvanized steel T bars

--Show galleries

Galvanized steel T bars

Quality Control

GALVANIZED T BAR STEEL

Inspection details for the T BAR STEEL

Quality Control Procedure for the Traditional T bars

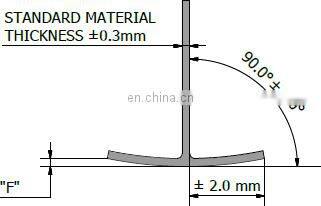

1.Flatness, Angle & Geometry

Flatness: "F" = ±2.0mm from Flat

Angle: 90 Degree ±1 Degree

Geometry: ±2.0mm on any dimension

Thickness: ±0.3mm of Nominated Thickness

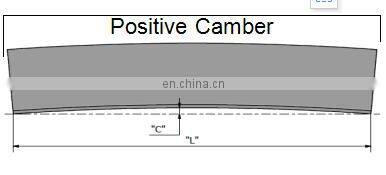

2.Positive Camber

Positive Camber: "C" = Less than "L" / 1000

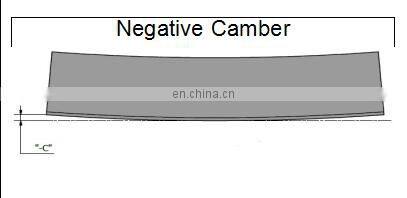

3.Negative Camber

"-C" = Zero (0) No Negative Camber Allowed

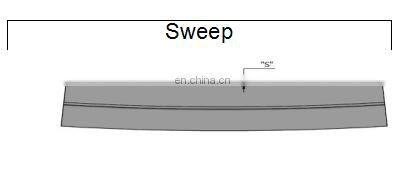

4.Sweep

Sweep: "S" = Less than "L" / 1000

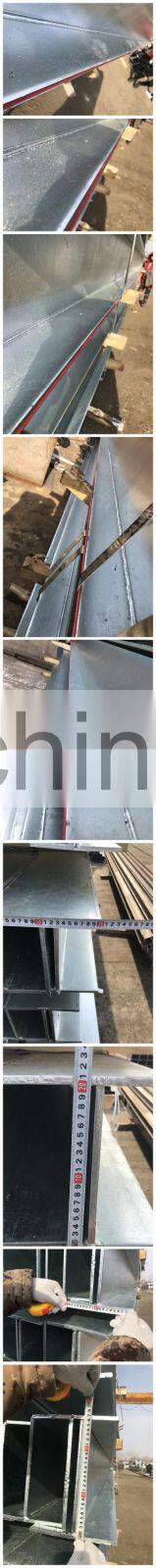

Inspection details for the finished products- Galvanised steel T bar

What we supply is far beyond your expectations

Packing & Delivery

Packaging Details:

a.Mill's Standard Export Sea-worthy Packing with slings and steel strips: 5 PCS (T bars) per bundles OR
b.As customer's requirement

Delivery Detail: Shipped in 15-35 days after payment

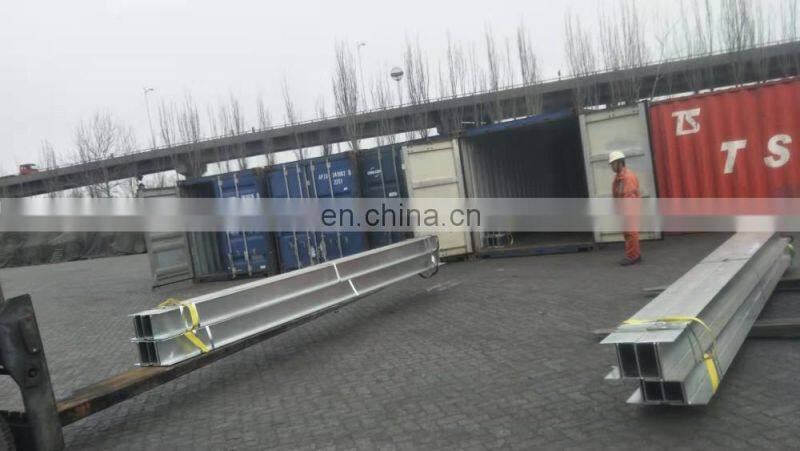

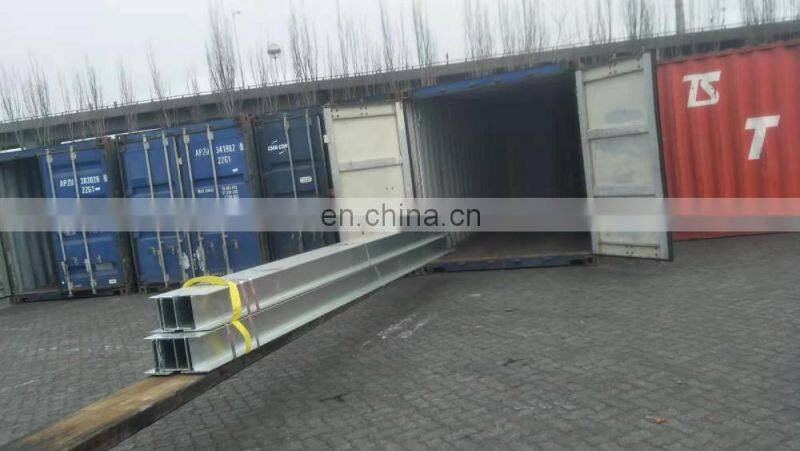

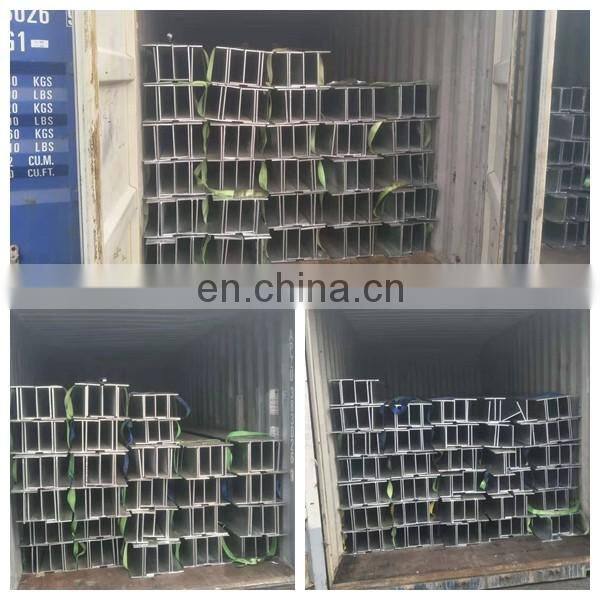

Loading and Delivery details

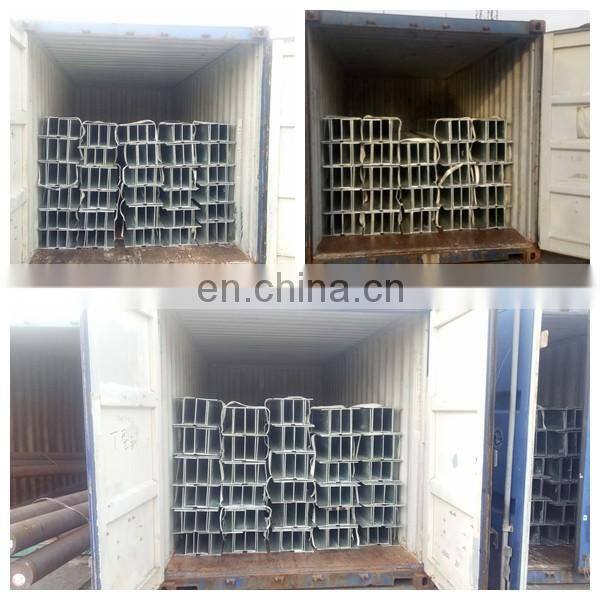

Loading
