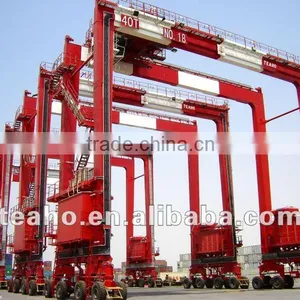

Rubber Tyre Gantry Crane
- 50 Set / Sets per Month
- shanghai&ningbo&tianjin&guangzhou
- T/T Credit Card PayPal
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Pure steel | Dimensions: | as required |
Place of Origin: | Anhui, China | Brand Name: | TEAHO or your brand | Model Number: | Rubber Tyre Gantry Crane 40T |
Type: | Heavy | Application: | Steel Structure Bridge |
Packaging Details
teaho or your brand
Product Description
Specifications
General gantry cranes are mainly used for lifting at goods yards,stockyards.Design product as your requirement.
1. Design product as your requirement.
2. We can provide you with different sizes tonnage of machinery, full range of services and technical support.
3. General gantry cranes are mainly used for lifting at goods yards,stockyards.lt is mainly composed by gantry legs,main beam,lifting trolley, travelling mechanism and other components
4. Quality of container gantry crane reach the international level
Rubber container gantry crane main performance parameters
Rubber container gantry crane main performance parameters | ||||||||
Item | Numerical value | unit | remark | |||||
rated Hoist Capacity | 40 | t | Under Spreader | |||||
Above the Surface of Track | 15.24 | m |
| |||||
Working speed | Rise speed | Full-load | 20 | m/min |
| |||
Empty-load | 45 | m/min |
| |||||
Big vehicle traveling speed | Full-load | 25 | m/min |
| ||||
Empty-load | 120 | m/min |
| |||||
| Small vehicle traveling speed | 70 | m/min |
| ||||
span | 23.47 | m |
| |||||
Base distance | 6.4 | m |
| |||||
The whole number of Traveling Wheel/ Number of Driving Wheel | 8/2 | pic |
| |||||
spreader | lean shift left/right | 0 |
|
| ||||
Slewing on level | ±5 |
|
| |||||
diesel engine | specification model | CATERPILLAR 3408 |
|
| ||||
Power | 331 | KW |
| |||||
revolving speed | 1500 | r/min |
| |||||
generator | specification model | STAMFORD HCI534 |
|
| ||||
Power | 540 | KVA |
| |||||
revolving speed | 1500 | r/min |
| |||||
Whole engine volume | 140 | T |
| |||||
heap yard container layer number | 4 | level |
| |||||
Transit container layer number | 5 |
|
| |||||
Max working wheel base | 30 | t |
|
