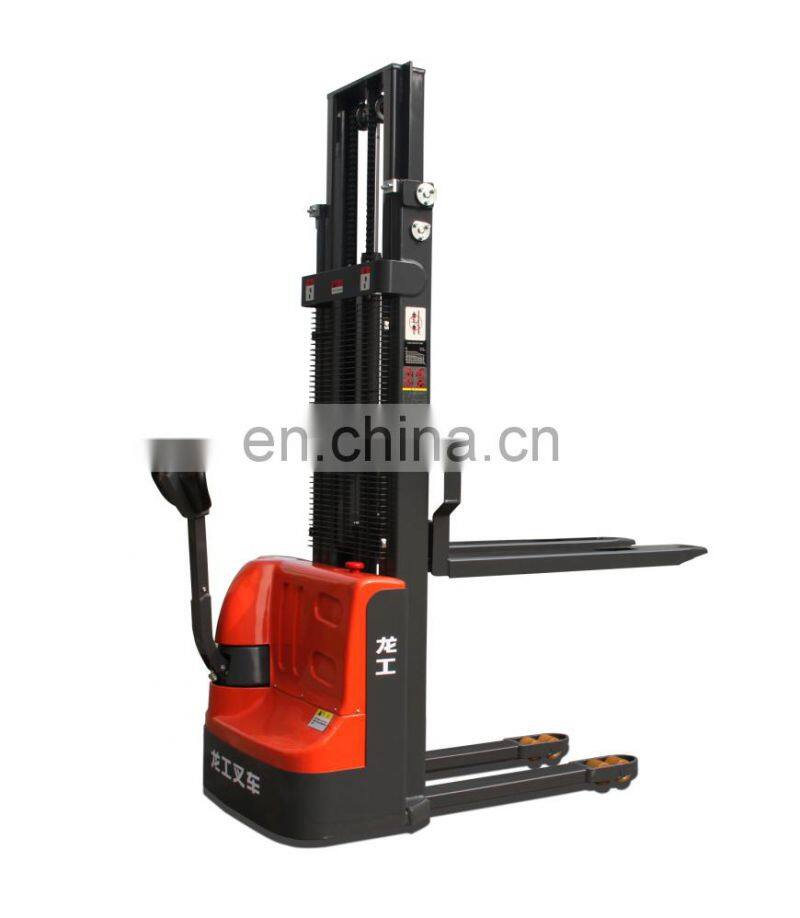

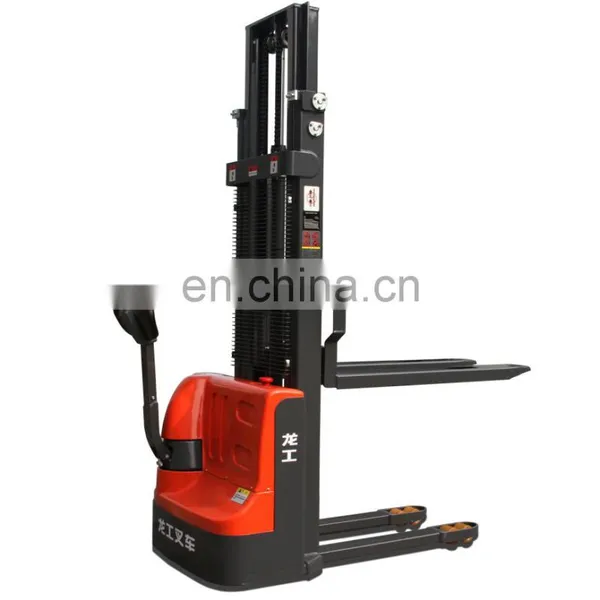

FORKLIFT LG10ED I-3M FULL ELECTRIC BALANCE HEAVY TRUCK

FORKLIFT LG10ED I-3M FULL ELECTRIC BALANCE HEAVY TRUCK thumbnail-1
FORKLIFT LG10ED I-3M FULL ELECTRIC BALANCE HEAVY TRUCK photo-1
US$ 25,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LONKING
Place of Origin:
China
Model Number:
LG10ED I-3M
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LONKING
Place of Origin China
Model Number LG10ED I-3M
Certification No
Type Other
After-sales Service Provided No overseas service provided
Condition New
Rated Loading Capacity 1000kg
Overall Dimensions 1914*808
Fork Width 160mm
Fork Length 1150mm
Min. Lifting Height 86mm
Max. Lifting Height 3000mm
Power Souce Other

LONKING FORKLIFT LG10ED I-3M FULL ELECTRIC BALANCE HEAVY TRUCK(Driving three points)

Product Description



MODEL UNIT LG10EDⅠ-1.6M LG10EDⅠ-3M
Maximum weight kg 1000 1000
Highest point load kg 800 700
Maximum lifting height mm 1600 3000
Load center mm 600
Length of fork mm 1150
Single fork width mm 160
Two fork outside width mm 570/695
Minimum fork height mm 86
Fixed leg length mm 928
Single fixed leg width (including front two-wheel frame) mm 124
Two fixed legs inside width mm 262/387
Two fixed legs outside width mm 534/659
Channel width:1000×1200 tray(1200 Placed cross the fork) mm 2048 2068
Channel width:800×1200 tray(1200 Placed along the fork) mm 2014 2034
Turning radius mm 1316 1336
Front wheel size, number   φ80×70,4
Drive wheel size, number   φ210×70,1
Balance wheel size, number   φ150×58,1
Total length (pedal down) mm 1632 1755
Total width mm 795 795
Total height when it rise to the highest mm 2060 3424
Total height when it down to the lowest mm 1990 1994
Battery size (L / W / H) mm 2×12V/100AH(260/169/215)
charger   24V/10A
Lift pump station   2.2kw Lifting speed (full load/no load): 100/150mm/s Falling speed (full load/no load): 150/130mm/s
Motor   0.75kw walking speed (full load/no load): 4.0/4.2km/h
Weight   410 520



 FORKLIFT LG10ED I-3M FULL ELECTRIC BALANCE HEAVY TRUCK



Packaging & shipping:

Packing: Close package to make shipment safer and suitable for import and export.

Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
             2.Ship by Air express to airport
             3.Ship by sea

Price item: FOB Shanghai

Payment Item: T/T in advance, Western Union

Company information:



    Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     1, all independent and non independent refrigeration unit sales, installation, training and customer service service  for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;

     2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;

     5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;

     6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;

     7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;

     8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;

     9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
