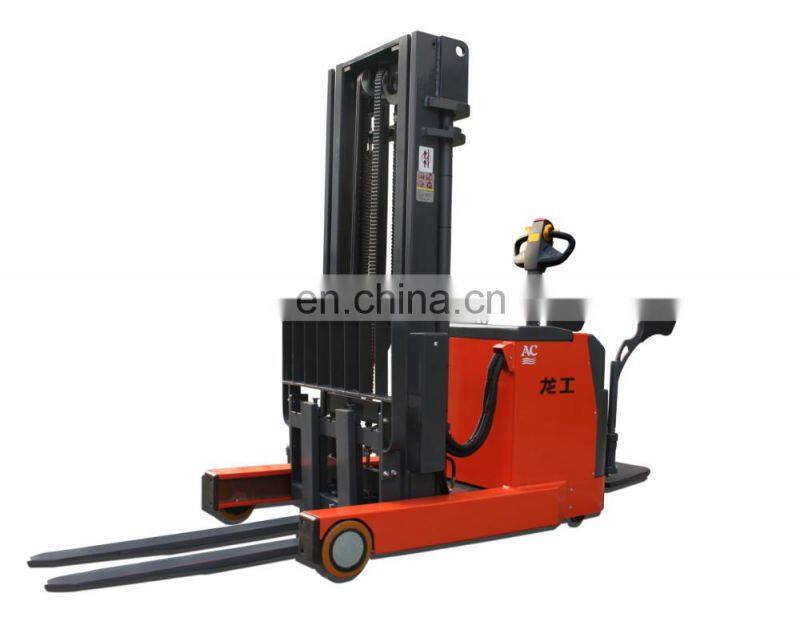

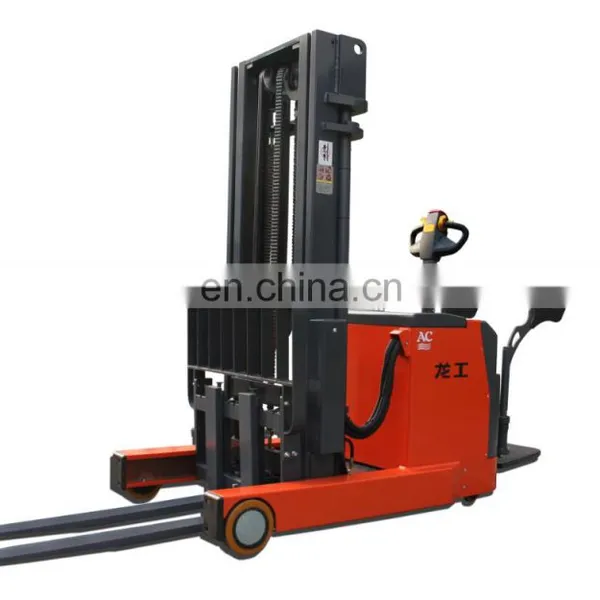

HIGH QUALITY FORKLIFT LG15DR FRONT FORKLIFT
- 100 Set / Sets per Month
- CHINA MAIN PORTS
- T/T Credit Card
You May Like
Product Details
Brand Name | LONKING | Place of Origin | China | |
Model Number | LG15DR | Certification | no | |
Type | Other | After-sales Service Provided | No overseas service provided | |
Condition | New | Rated Loading Capacity | 1500kg | |
Overall Dimensions | 2225*1100 | Fork Width | 100mm | |
Fork Length | 950mm | Min. Lifting Height | 50mm | |
Max. Lifting Height | 3000mm | Power Souce | Other |
Product Description
LONKING FORKLIFT LG15DR FRONT FORKLIFT(small forward)
Product Description
MODEL | UNIT | LG15DRⅠ-1.6M | LG15DRⅠ-1.8M | LG15DRⅠ-3M | LG15DRⅠ-3J-3.7M | LG15DRⅠ-3J-4.5M |
Maximum weight | kg | 1500 | ||||
Highest point load | kg | 1300 | 1300 | 1100 | 1000 | 700 |
Weight | kg | 1745 | 1750 | 1840 | 2070 | 2100 |
Load center distance | mm | 500 | ||||
Tire material | Polyurethane | |||||
Front wheel size, number | 210x70,2 | |||||
Rear wheel size, number | 230x75(PU thickness)X82(total thickness),1 | |||||
Balance wheel size, number | 149x60,2set | |||||
Maximum lifting height | mm | 1600 | 1800 | 3000 | 3700 | 4500 |
Total height when it rise to the highest | mm | 2155 | 2355 | 2100 | 1830 | 2080 |
Total height when it down to the lowest | mm | 2535 | 2790 | 4000 | 4700 | 5500 |
Total length/pedal down/arm open (with 950mm fork) | mm | 2225/2620/2765 | ||||
Total width | mm | 1100 | ||||
Door frame forward and backwards angle | Forward/backward:2/4 | |||||
The height of the operating handle in the drive position Min/Max | mm | 984/1365 | ||||
fork minimum height | mm | 50 | ||||
Fork size thick / wide / long | mm | 35/100/950(1150) | ||||
Two forks with adjustable width | mm | 200~740 | ||||
Forward distance | mm | 500 | ||||
Channel width:1000×1200 tray (1200 Placed cross the fork) | mm | 3153 | 3153 | 3163 | 3152 | 3152 |
Channel width:800×1200 tray (1200 Placed along the fork) | mm | 3263 | 3153 | 3273 | 3262 | 3262 |
Turning radius | mm | 1670 | ||||
Travel speed: full load / no load | km/h | 5.0/6.0 | 4.8/6.0 | |||
Lifting speed: full load / no load | mm/s | 75/139 | 85/119 | |||
Descent speed: full load / no load | mm/s | 94/108 | 85/80 | |||
Maximum climbing capacity (full load / no load) | 5/8 | |||||
charger | 24V/40A | 24V/55A | ||||
motor | Vertical 1.5kw,AC | |||||
Lift pump station | 3.0kw | |||||
Battery (length / width / height) | mm | 24V/270Ah(794/212/583) | 24V/400Ah(812/317/530) |
Packaging & shipping:
Packing: Close package to make shipment safer and suitable for import and export.
Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
2.Ship by Air express to airport
3.Ship by sea
Price item: FOB Shanghai
Payment Item: T/T in advance, Western Union
Company information:
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
