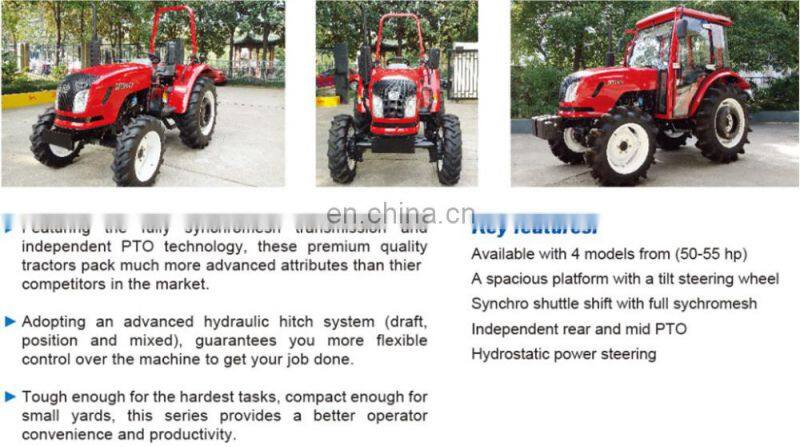

HIGH QUALITY DONGFENG TRACTOR G3-SERIES(50-55)

HIGH QUALITY DONGFENG TRACTOR G3-SERIES(50-55) thumbnail-1
HIGH QUALITY DONGFENG TRACTOR G3-SERIES(50-55) photo-1
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGFENG
Place of Origin:
China
Model Number:
DF504G3
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGFENG
Place of Origin China
Model Number DF504G3
Type Other
After-sales Service Provided No overseas service provided
Certificate Other
Usage Farm Tractor
Drive Type Other
Condition New
By wheel 4WD

HIGH QUALITY DONGFENG TRACTOR G3-SERIES(50-55)

Product Description



Model DF500G3 DF504G3 DF550G3 DF554G3
ENGINE
Type 4 Cyl.,direct-injection,water-cooled 4-cycle diesel engine
Engine Gross,HP(Kw) 50(36.8) 55(40.5)
PTO,HP(kW) 45.0(33.1) 49.6(36.5)
Rated Speed,rpm 2400 2400
Displacement,L 3.26 3.26
Fuel Tank Capacity,L 55 55
Drive Train
Transmission Side shift 12F/12R
Synchro shuttle with fully synchro mesh
Creeper(Option) 24F/24R
Min/Max forward speed,km/h 1.79-31.16 1.86-32.46
0.21-3.71(creeper) 0.22-3.86(creeper)
Steering Power
Clutch Dry,singe-stage
Brake Wet,multi-disk
Differential Lock Mechanical
Drive Type 2WD 4WD 2WD 4WD
PTO
PTO Type Hydraulic,Independent
Rear P.T.O(Standard),rpm 540/1000
Mid P.T.O(Option),rpm 2000
Spline Size 6-35 Rectangular spline 6-35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump,L/min 33.6 33.6
Remote Valves(Option) 2
3-Point Hitch GAT.2
Control Type Position,Draft,Mixed control
Lift Capacity 610mm behind@lift balls,kg 910 910
Dimensions
Overall Length,mm 3738 3738
Overall Width,mm 1605 1605
Overall Height,mm 1665 1690
Wheelbase,mm 1880 1880
Min.Ground Clearance,mm 355 380
Min.Turning Radius,m 3.5 3.7 3.6 3.9
Weight,kg 1725 1810 1775 1860
Tires
AG,Front/Rear 6.00-16/12.4-28 8.3-20/12.4-28 6.00-16/13.6-28 9.3-20/13.6-28



HIGH QUALITY DONGFENG TRACTOR G3-SERIES(50-55)





Packaging & shipping:

Packing: Close package to make shipment safer and suitable for import and export.

Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
             2.Ship by Air express to airport
             3.Ship by sea

Price item: FOB Shanghai

Payment Item: T/T in advance, Western Union

Company information:



    Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     1, all independent and non independent refrigeration unit sales, installation, training and customer service service  for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;

     2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;

     5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;

     6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;

     7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;

     8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;



     9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
