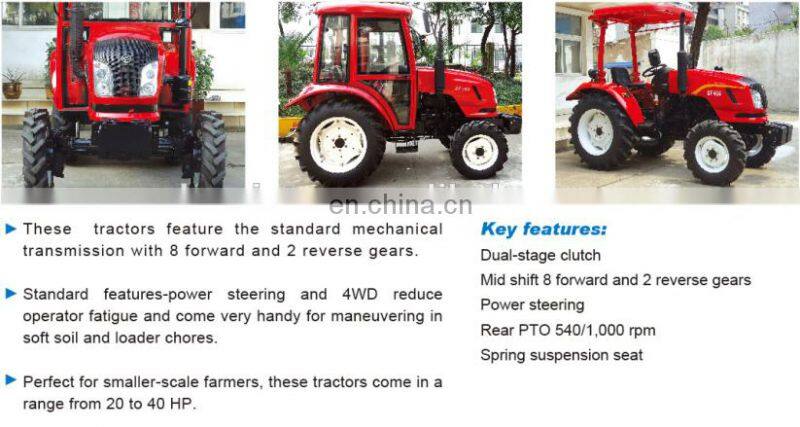

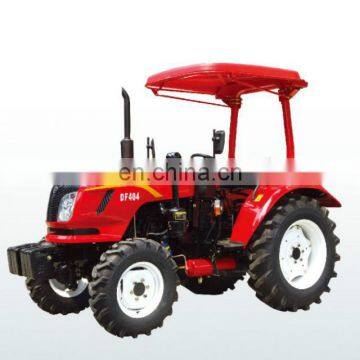

HIGH QUALITY DONGFENG TRACTOR STANDARD 30-40 SERIES

HIGH QUALITY DONGFENG TRACTOR STANDARD 30-40 SERIES thumbnail-1
HIGH QUALITY DONGFENG TRACTOR STANDARD 30-40 SERIES photo-1
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGFENG
Place of Origin:
China
Model Number:
DF404
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGFENG
Place of Origin China
Model Number DF404
Type Other
After-sales Service Provided No overseas service provided
Certificate Other
Usage Farm Tractor
Drive Type Other
Condition New
By wheel 4WD

HIGH QUALITY DONGFENG TRACTOR STANDARD 30-40 SERIES

Product Description



Model DF304 DF354 DF404
ENGINE
Type Direct-injection,water-cooled 4-cycle diesel engine
Engine Gross,HP(Kw) 30(22.1) 35(25.7) 40(29.4)
PTO,HP(kW) 27(19.8) 31.5(23.2) 36(26.5)
Rated Speed,rpm 2500 2400 2400
Cylinders 3 3 4
Displacement,L 1.812 2.23 2.543
Fuel Tank Capacity,L 30 30 30
Drive Train
Transmission 8F/2R 8F/2R
Sliding gear mesh Sliding gear mesh
Min/Max forward speed,km/h 1.73-31.9 1.66-30.68 1.75-32.2
Steering Power
Clutch Dry,dual-stage
Brake Dry,disk
Differential Lock Mechanical
Drive Type 4WD
PTO
Rear PTO,rpm Live 540/1000
Spline Size 6-35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement Pump,L/min 24 24
Remote Valves(Option) 2
3-Point Hitch CAT.1
Lift Capacity 610mm behind@lift balls,kg 580 580 665
Dimensions
Overall Length,mm 3290 3290 3460
Overall Width,mm 1480 1485 1490
Overall Height(Top of steering),mm 1620 1620 1650
Wheelbase,mm 1710 1740 1818
Min.Ground Clearance,mm 358 358 405
Min.Turning Radius,m 2.5 2.5 2.6
Weight,kg 1350 1390 1438
Tires
AG,Front/Rear 6.50-16/11.2-24 6.50-16/12.4-24 7.50-16/12.4-24
Turf,Front/Rear 7.50-16/12.4-24 7.50-16/12.4-24 7.50-16/12.4-24
Industrial,Front/Rear 10-16.5/16.5-22.5NHS 10-16.5/16.5-22.5NHS 10-16.5/16.5-22.5NHS



HIGH QUALITY DONGFENG TRACTOR STANDARD 30-40 SERIES



Packaging & shipping:

Packing: Close package to make shipment safer and suitable for import and export.

Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
             2.Ship by Air express to airport
             3.Ship by sea

Price item: FOB Shanghai

Payment Item: T/T in advance, Western Union

Company information:



    Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     1, all independent and non independent refrigeration unit sales, installation, training and customer service service  for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;

     2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;

     5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;

     6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;

     7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;

     8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;



     9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
