Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine

Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-1
Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-2

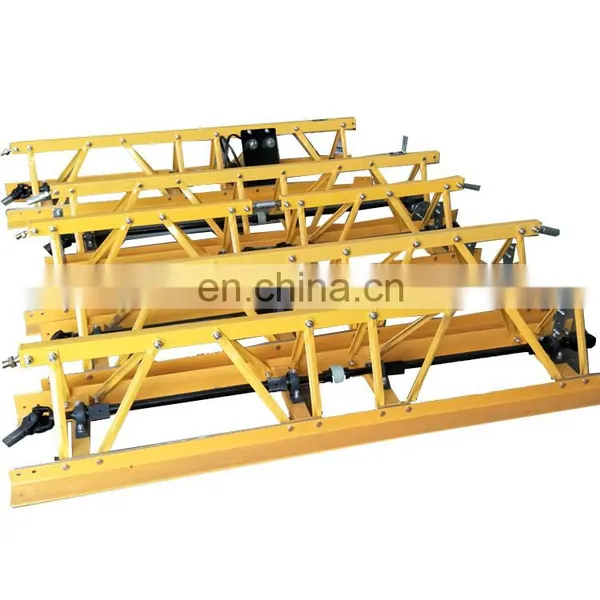

Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-3
Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-4
Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-5

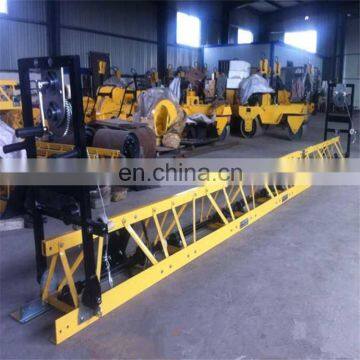

Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-6
Concrete Frame Leveling Machine be Assembled and be Customized Construction Machine photo-7
US$ 1,050 - 2,256 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/ Tianjin/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

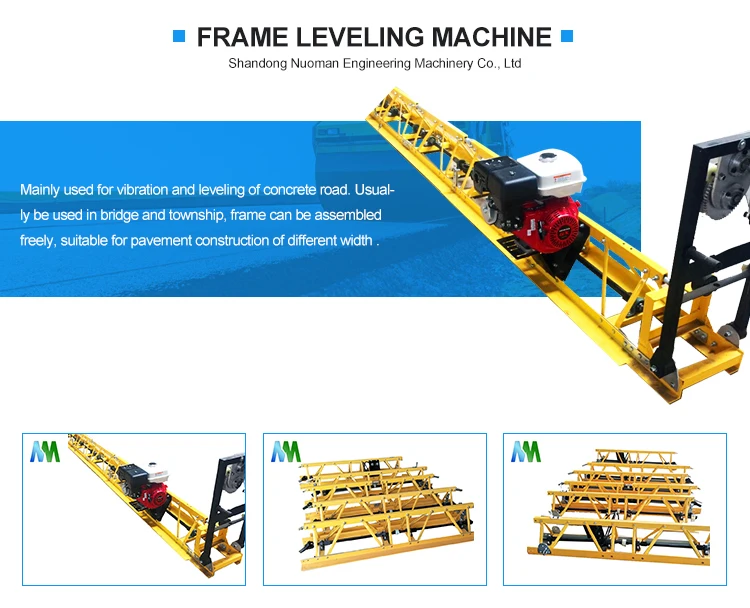

Mainly used for vibration and leveling of concrete road. Usually be used in bridge and township, frame can be assembled freely, suitable for pavement construction of different width . It is a new equipment for roads, squares and modern factory building. And it is a traditional paver upgrading products.

SPECIFICATIONS FOR FRAME LEVELING MACHINE
Model
NM-55≤5500mm
NM-90≤8500mm
NM-130≥9000mm
Engine model
HONDA GX160
HONDA GX270
HONDA GX390
Type
Gasoline engine, air cooled, 4stroke, OHV, single cylinder
Power
5.5HP/3600rpm
9.0HP/3600rpm
13HP/3600rpm
Fuel tank volume
3.6L
6L
6.5L
Nominal amplitude
0.6mm
Walk speed
1-5m/min
Fuel consumption
313g/kwh
2m linker
405mm×2000mm
1m single linker
405mm×1000mm
Vibration frequency
70 HZ
Machine weight
 37 kg/m
0.5m single linker
405mm×250mm
Attention: You need to order machines larger than 500mm in width

Main Features

1. Can be equipped with Honda engine, domestic engine or electric engine.
2. High quality and easy to start
3. Detachable free combination design, frame fast docking, save time
4. The overall frame adopts cold-rolled plate, aseismatic, won't be deformation.
5. A cardan connection between a single node
6. Adopt imported bearing, maintenance free, long service life
7. Frame can arched 5 to 10 degree
8. Removable and free combination design, greatly reduces the maintenance and transportation cost.

Detailed Images

Machine Parts

Name:  ENGINE

Brand:  HONDA

Original: CHINA

adopted Honda engine, large power

Main Features

Name:
Brand: NSK
Original: JAPAN

adopted famous bearing, stable performance

Machine Parts

Name: FRAME
Brand: CHINA
Original: CHINA

operate easily, can control the machine with one hand

Main Features

Name: CARDAN
Brand: CHINA
Original: CHINA

operate easily, compact connection

Our Service

We have an independent factory, with 12 years of independent r & d production experience
Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality
We have a professional after sales team, 24 hours online for you to solve any product question
Support products to customize, can be tailored according to your requirements
Fast shipment, safe packing, ensure the goods are in good condition and timely delivery to you

Our Company
FAQ

1.Q: How can I make the payment?
        Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
2. Q: Can I order mix order?
         Yes.
3. Q: How long of the warranty period?
         1year
4. Q: How can i believe you and your factory?
         A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and we will welcome you enthusiasm. so we can establish good cooperation with each other.
reply you in 24 hours, if you are urgent, we can reply you soonest.
