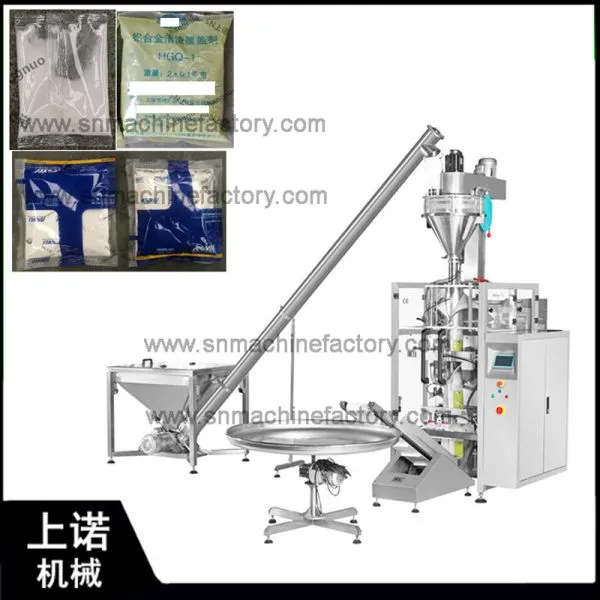

Usage:This machine is widely used for packing powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, essence，herbal powder, chemical and medical powder products to big packing bag. This machine can automatically complete material lifting(optional)--multi-head weighter /Cup measuring(optional)--coding(optional)--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products(optional)--sorting finished products(optional).
Technical parameter:
Model |
SN-420F （about 100-1200g） |
SN-520F （about 300g-2200g） |
SN-720F （about 500g-5500g） |
Packing speed |
5-70 bags/min |
5-60 bags/min |
5-55 bags/min |
Packing volume |
1000ml（can be customized） |
2000ml（can be customized） |
4000ml（can be customized） |
Making bag size |
L: 60-300mm, W: 80-200mm |
L: 80-400mm, W: 150-250mm |
L: 80-450mm, W: 200-350mm |
Film width |
≤ 420mm |
≤ 520mm |
≤ 720mm |
Thickness of film roll |
0.04-0.09mm |
0.04-0.09mm |
0.04-0.09mm |
Pulling film type |
Double belt pull film |
Double belt pull film |
Double belt pull film |
Air consumption |
0.8Mpa, 0.5m³/min |
0.8Mpa, 0.4m³/min |
0.8Mpa, 0.4m³/min |
Packing accuracy |
≤ ±1% |
≤ ±1% |
≤ ±1% |
Power |
2.5 KW |
2.5 KW |
3.0 KW |
Power supply |
AC220V, 50/60Hz |
AC220V, 50/60Hz |
AC220V, 50/60Hz |
Seal type |
Pillow seal, Gusset bag, Block bottom bag |
Pillow seal, Gusset bag, Block bottom bag |
Pillow seal, Gusset bag, Block bottom bag |
Main machine net weight |
450kg |
550kg |
700kg |
Main machine dimension |
L1320 × W920 × H2100mm |
L1500 × W1140 × H2700mm |
L1800 × W1250 × H3100mm |
HOW TO ORDER
1.Send us your products picture,material,size and your requirements.
2.Confirm the machine model and sign the PI.
3.You arrange the 30% deposit,send your product samples to us test the machine.
4.You can arrange people to our factory to inspect the machine after we finish the produce,then arrange pay for balance money.
5.We send out the machine to you.If you need technicist to your site to debug and assemble the mahine,we can arrange.
Changsha Shangnuo machinery co. ltd pay attention to technical innovation, according to the actual production situation of customers, use new technology, new ideas to develop professional production equipment, improve your production efficiency! Pls feel free to contact with us wechat: 008613974614255
