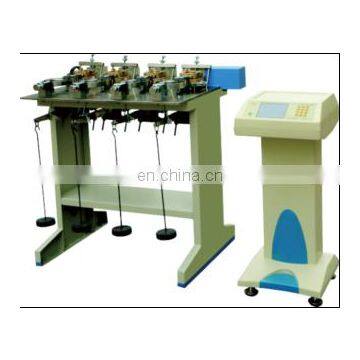

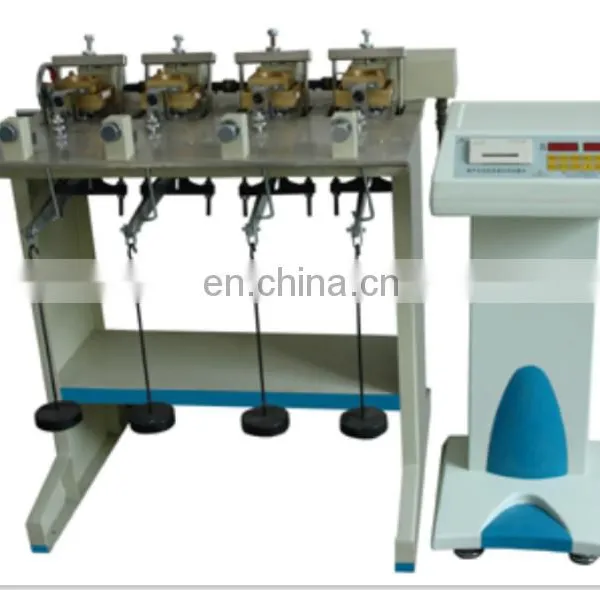

HST-5A Digital Direct Soil Shear Strength Test Apparatus

Digital Soil Shear Strength Test Apparatus

Application:

This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.

Specification:

1. Area of soil sample:30cm2

2. Lever ratio:1:12

3. Vertical Loading: 50,100,200,300,400(Kpa)

4. Max. horizontal loading: 1.2KN

5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min

6. 4 specimens in the same test

7. Working voltage: AC220V

8. Measurement: 1160x900x1160mm(main frame),

500x500x1020mm(controller), weight: 240kg

Features:

Stainless steel working table,

stepping motor as pushing mechanism,

high precision, low noise, MCU control, v

Variable speed displayed by the controller,

easy to operate, ABS vertical type controller,

LCD display.
