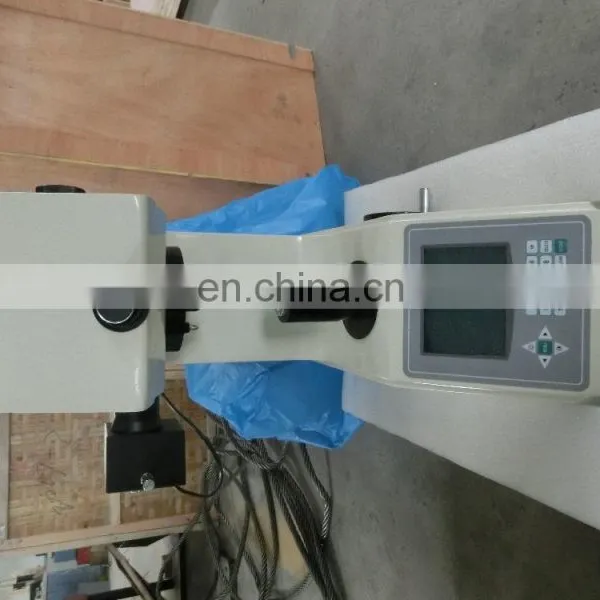

HVS-1000 Digital Micro Metal hardness tester
1.Applications:
HVS-1000 Manual Turret Digital Display Micro Vickers Hardness Tester used to determine the Vickers
hardness of steel,non-ferrous metals,ceramics,treated layers of metal surface,and the hardness grades of
carburized, nitrided and hardened layers of metals.
It is also suitable to determine the Vickers hardness of micro and super thin parts.
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
2.Feature:
2.1.HVS-1000 is Manual Turret Switching.
2.2.Automatic data input, LCD automatically displays hardness value, the printer will print hardness
test results.
2.3.High-precision optical measuring systems, precision coordinate testing table.
2.4.Automatic testing process, easy to operate, no human operating error.
2.5.Frictionless loading shaft, high precision testing force.
2.6.Convert various hardness values.
2.7.Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.
3.Specifications:
Model | HVS-1000 |
Hardness Measuring Range | 5~3000 HV |
Test Force | 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N. (10, 25, 50, 100, 200, 300, 500, 1000gf) |
Measurement System Magnification | 400X, 100X |
Maximum Specimen Permitted Height | 90 mm |
Distance Between Pressure Head Center And Its Wall | 120 mm |
Power Supply | AC 220V, 50Hz |
Dimensions | 530 * 290 * 490 mm |
Weight | 40 KG |

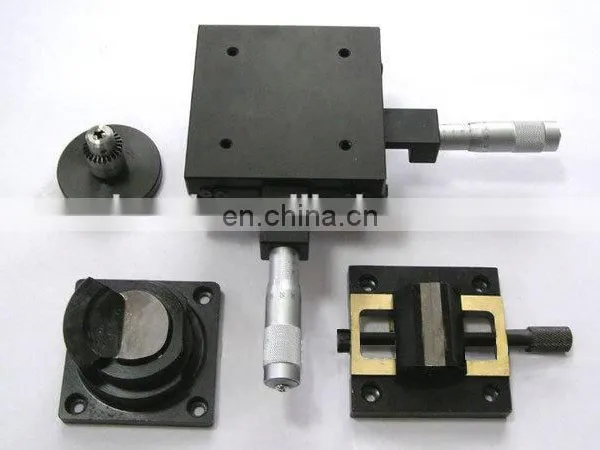

4.Standard Accessories:
Coordinate Testing Table | 1 PIECE |
Thin shaft Testing Table | 1 PIECE |
Sheet Testing Table | 1 PIECE |
Small Flat-clamp Testing Table | 1 PIECE |
Large V-shaped Block | 1 PIECE |
Small V-shaped Block | 1 PIECE |
Diamond Quadrangular Pyramid Indenter | 1 PIECE |
Standard Micro Hardness Block | 2 PIECE |
5.Optional Accessories:
5.1.Knoop Indenter: Can Measuring Some High Hardness Materials.
5.2.CCD Camera And Image Processing System.
Package picture: Vickers Hardness Testing Machine
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver? Vickers Hardness Testing Machine
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality? Vickers Hardness Testing Machine
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
