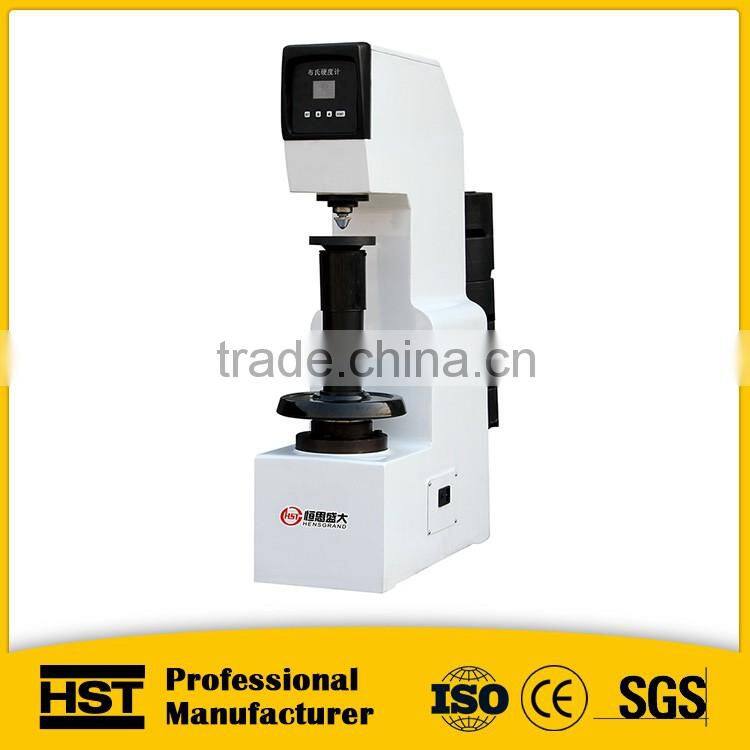

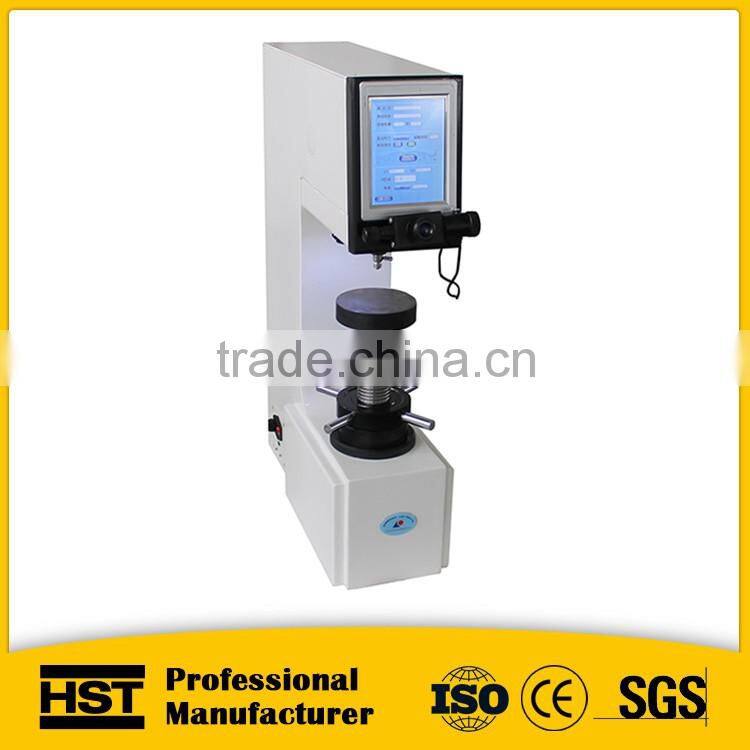

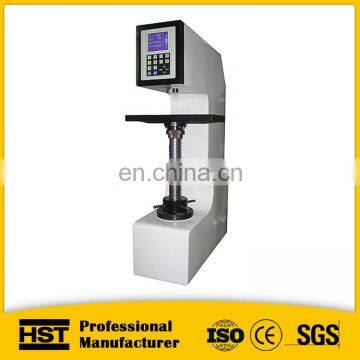

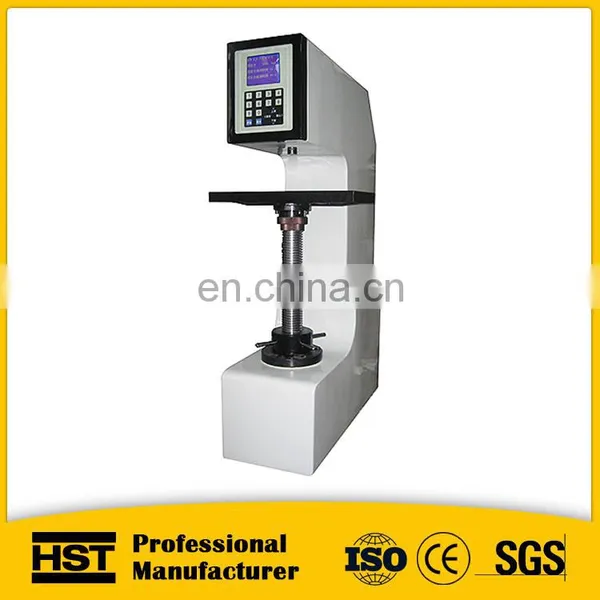

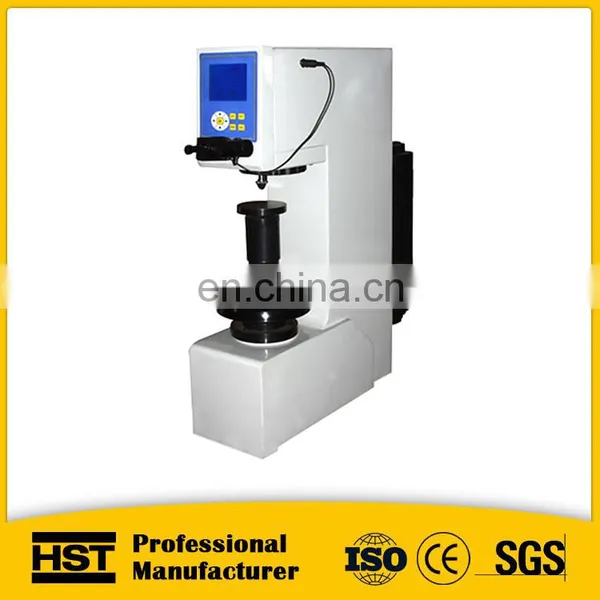

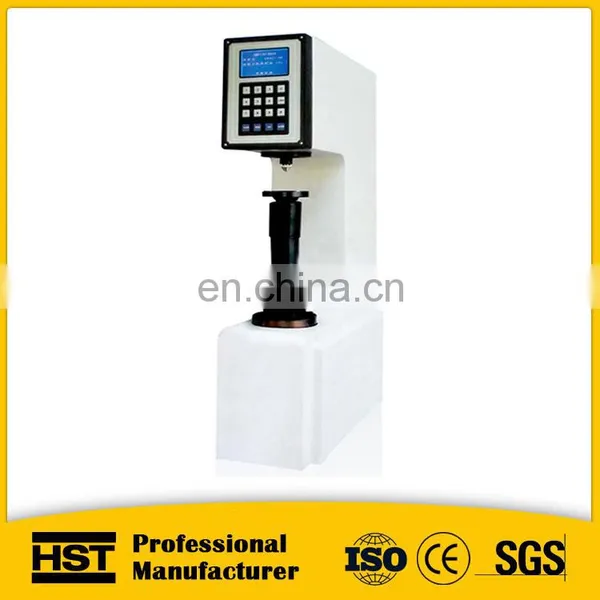

HBS-3000 brinell hardness tester
Application :
HBS-3000 digital brinell hardness tester is a recently developed new generation Brinell tester that is domestically advanced.It can be applied to determine the Brinell hardness for ferrous metal and non-ferrous metal.The tester adopts electronic auto loading,computer software programming,high power optical measurement,photosensor and other systems.Eash operational process and test manufacturing enterprises,colleges and scientific institutions .
Main technical specifications :
Model | HBS-3000 |
Type | Digital Brinell |
Testing range | 8~650 HBW (hardmetals steel ball) |
Brinell›hardness›test›(N) | 612.5, 980, 1225, 1837.5, 2450, 4900, 7350, 9800, 14700, 29400 |
Load›control | Automatic |
Magnification›of›microscope›x | 20x for reading microscope |
Max.›height›of›specimens›(mm) | 220 |
Max.›depth›of›specimens›(mm) | 135 |
Power | AC220V, 50/60Hz |
Dimension›(DxWxH)›(mm) | 550 x 236 x 753 |
Net›weight›(kg) | 130 |
Packing List | |
Indenter | Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1 |
Testing›table | Big / small /V, 1 for each |
Hardness››block | HBW 3000/10 150~250 x 1, HBW 1000/10 75~125 x 1, HBW 187.5/2.5 150~250 x 1 |
Operation›manual | 1 |
Reading›microscope | 20x x 1 |
Micrometer›eyepiece | 1 |
Related Brinell Hardness Testers:

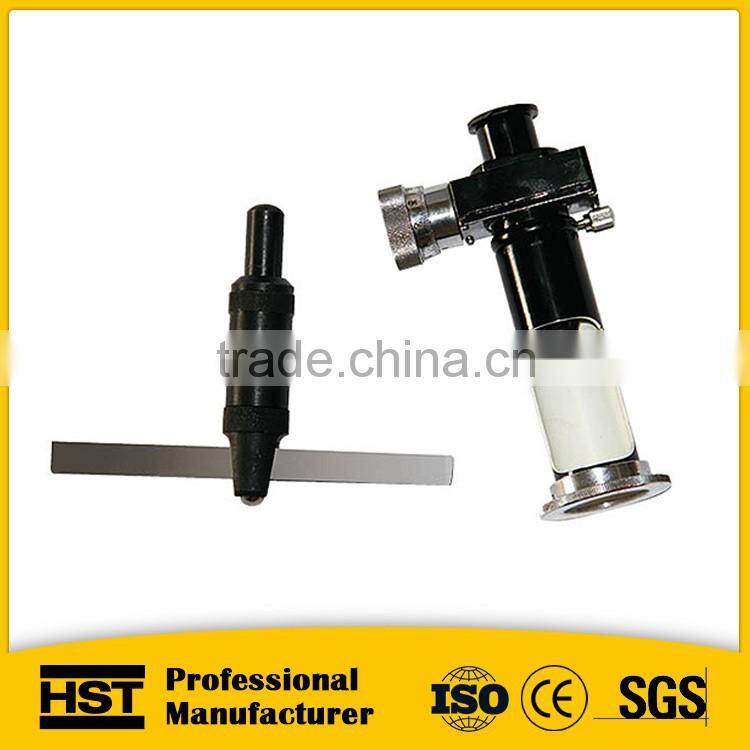

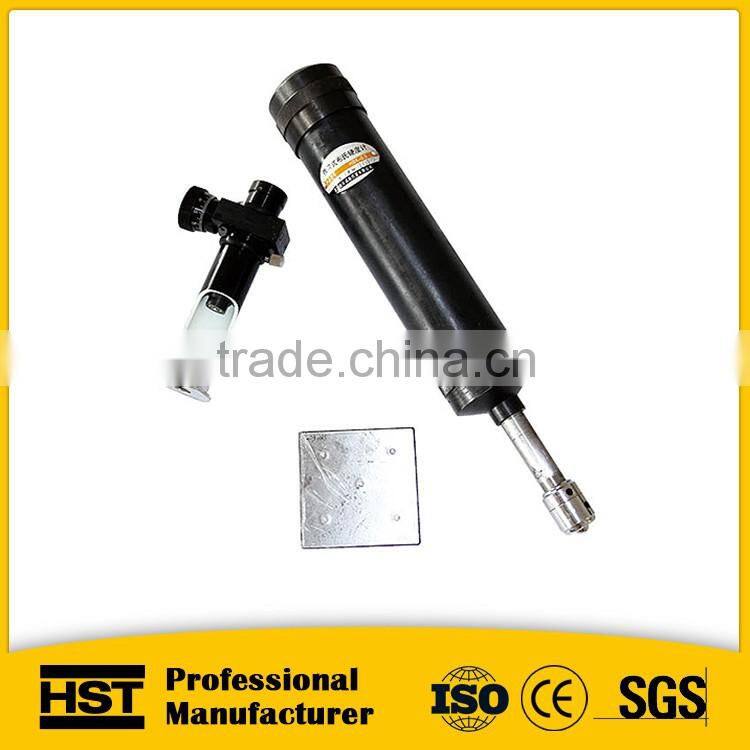

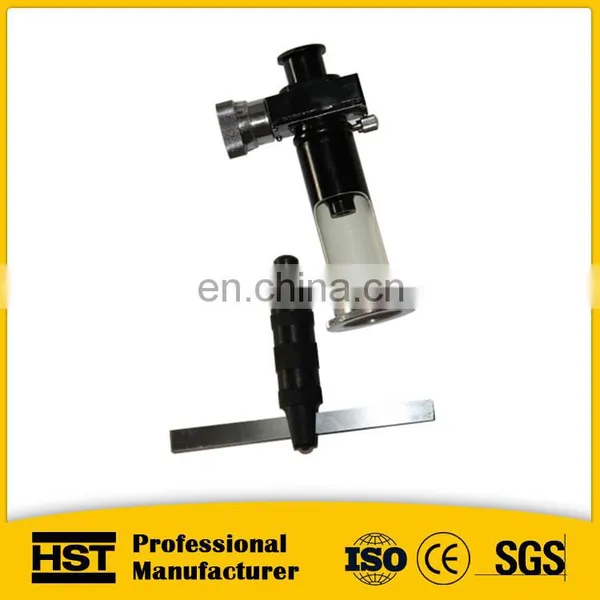

HBC Hammer Hit Type HBM-3000C Digital Display Gate Type HB-3000D high type
HB-3000B THB-3000MDX With Motorized Turret type HBX-0.5 Portable style
Factory show:
Our services:
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
