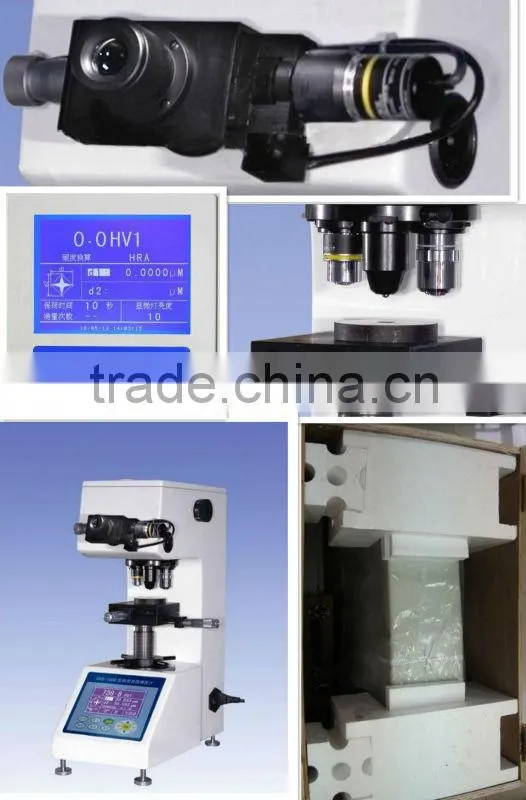

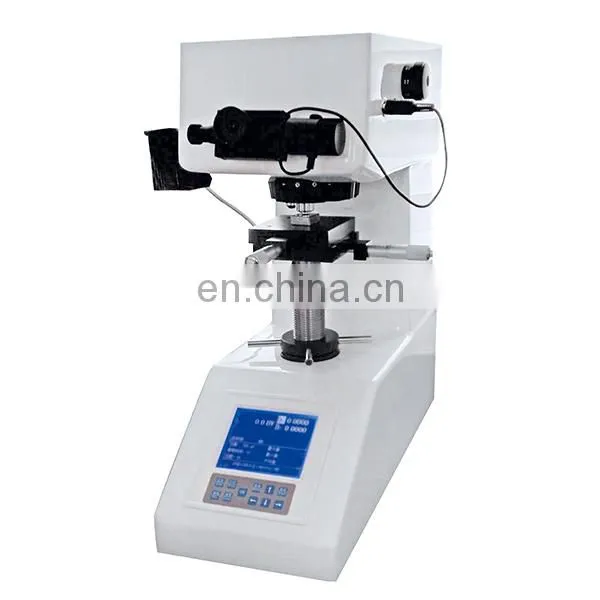

HVS-50 DIGITAL DISPLAY VICKERS HARDNESS TESTER
Feature & Use
Frictionless loading shaft, high precision testing force
LCD display, menu operating, complete function with data processing, hardness value conversion and so on
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Specifications
Measuring range: 5-2900HV
Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 5, 10, 20, 30, 50kgf)
Max. Height of test piece: 180mm
Depth of throat: 125mm
Magnifications of the measuring system: 125X, 250X
Min. scale value of the optical micrometer: 0.5μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 580 x 260 x 730mm
Weight: Approx. 90kg
Standard accessories
Large flat anvil: 1 pc. Small flat anvil: 1 pc.
V-notch anvil: 1 pc. Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 3 pcs. Printer: 1 pc.
After-sales service commitment:
Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
