Home > Products > Electronic Universal Testing Machine > Ceramic building materials universal compression tension and bending testing machine factory
Ceramic building materials universal compression tension and bending testing machine factory
- Qingdao /Shanghai
- T/T Credit Card
You May Like
-
Factory direct sell plastic pipe tensile testing machine
-
20/50/200/300/600KN Lab quality control material testing measurement system
-
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine
-
Textile/rubber/aluminum alloys material burst tensile strength testing instruments (10KN/2250LBF/1000KGF )
-
mild steel/polymer/plastic/steel metal bolt tensile utm test machine price
-
astm standard static tensile test of mild steel specimen and metallic materials
Product Details
| Brand Name | Hensgrand | Place of Origin | Shandong, China | |
| Model Number | WDW-5 | Power | Electronic |
Product Description

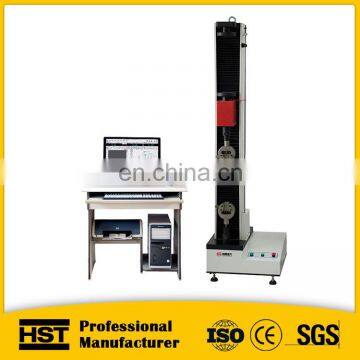

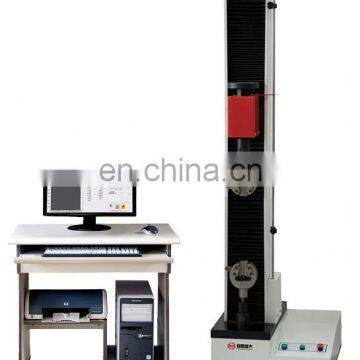

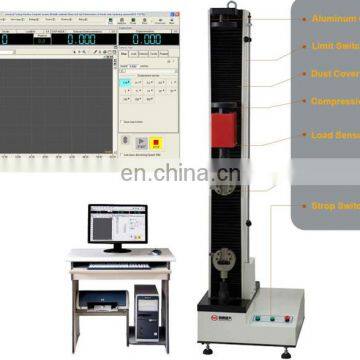

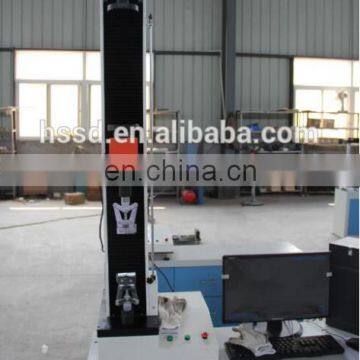

Ceramic building materials universal compression tension and bending testing machine factory
WDW series computer electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Computer control universal Testing machine specification :
Model | WDW-5 |
Max. Load | 5000N |
Structure | Single Column Double Spaces |
Control Method | Computer Control |
Load Accuracy | 1 Class |
Load Range | 2%~100% FS |
Displacement Resolution | 0.01mm |
Test Speed | 0.05~500mm/min |
Tensile Space | 600mm (Can be customized) |
Compression Space | 600mm (Can be customized) |
Power Supply | AC220V±10%, 50Hz (Can be customized) |
Grips | Wedge Type, Plate Type And Other Grips As Customers’ Demand |
Dimension | 425*400*1315mm |
Weight | 120.00 KG |
