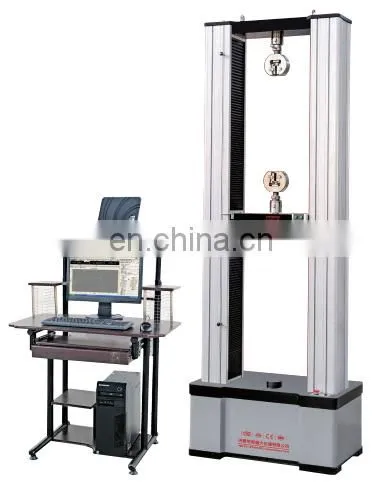

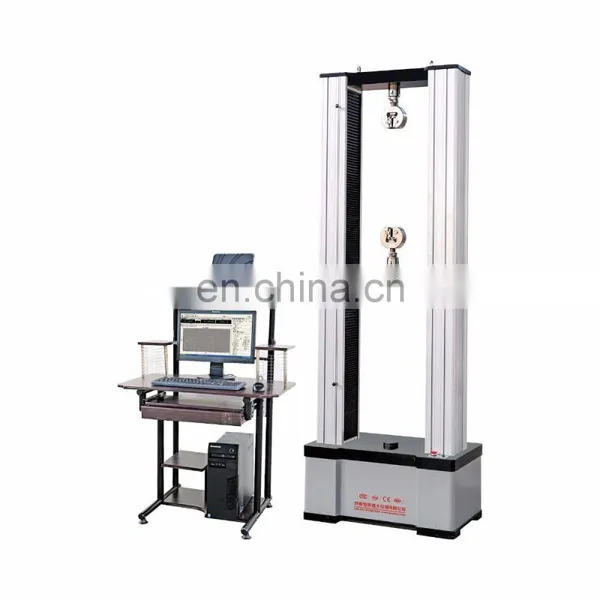

10KN/2250LBF/1000KGF textile/rubber/aluminum alloys material burst tensile strength testing instruments
1. Application:
electronic tensile compression testing machine are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .
2.Main Specifications:
Model | WDW-10/20/50 | WDW-100 | WDW-200/ 300 | WDW-500/ 600 | ||||||
Max. Load | 10kN 1000kgf | 20kN 2000kgf | 50kN 5000kgf | 100kN 10000kgf | 200kN 20000kgf | 300kN 30000kgf | 500kN 50000kgf | 600kN 60000kgf | ||
Structure | Floor Type | |||||||||
Control model | Computer control | Constant stress, constant strain, constant displacement closed-loop control System | ||||||||
Load accuracy | ≥±1% | |||||||||
Load range | 2%-100% of full scale | |||||||||
Load resolution | 1/20000 of full scale | |||||||||
Deformation test range | / | 2%~100 | ||||||||
Deformation accuracy | / | ≥±0.5 | ||||||||
Deformation resolution | / | 1/20000 | ||||||||
Displacement accuracy | ≥±1% | |||||||||
Disp. resolution | 0.01mm | |||||||||
Displacement speed | 0.005-500mm/min | 0.001-200mm/min | ||||||||
Tensile space | 700mm | 650mm | 600mm | 650mm | ||||||
Test width | 400mm | 450mm | 550mm | 650mm | ||||||
Clamp way | Manual clamp | Hydraulic clamp | ||||||||
