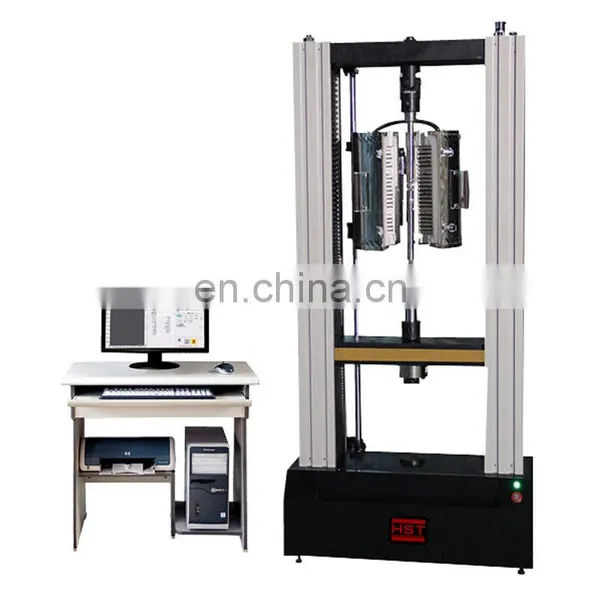

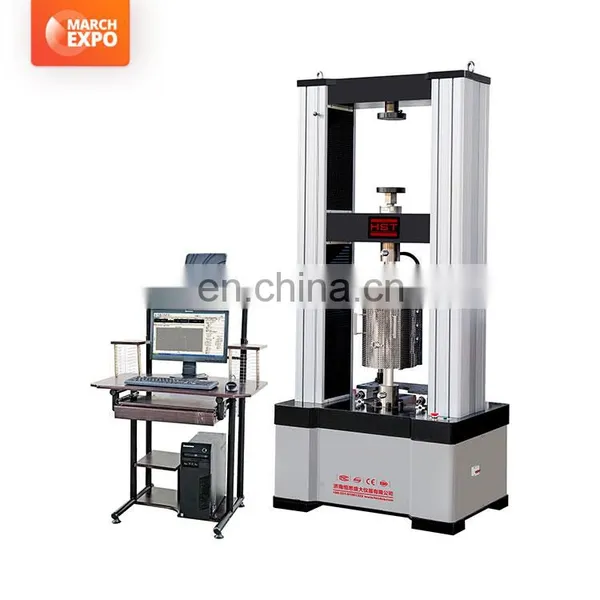

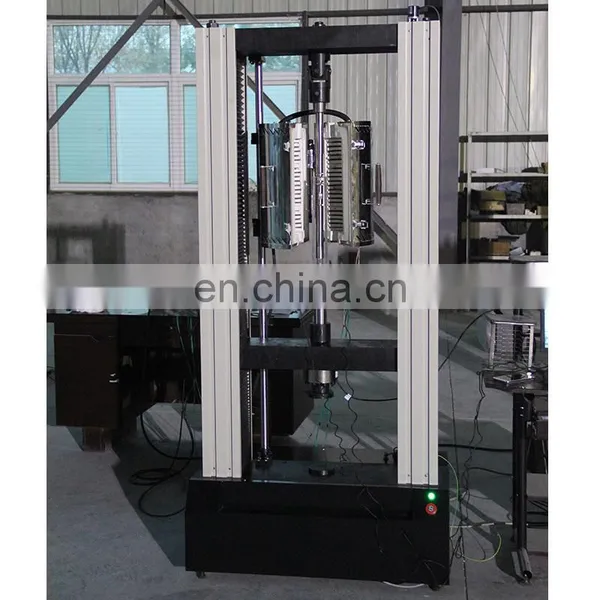

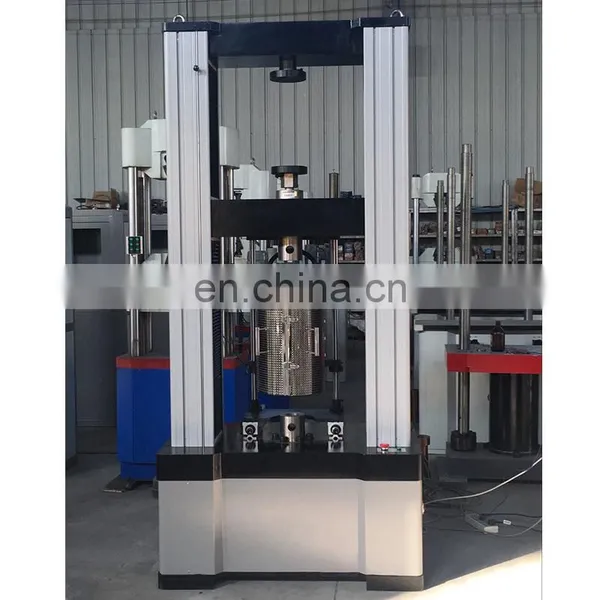

Metallurgical iron steel high temperature tensile strength test machine
Model |
GWT1200 |
||
Installation way |
vertical type |
||
Working temperature |
100~1100°C |
||
Long-term working temperature |
1000°C |
||

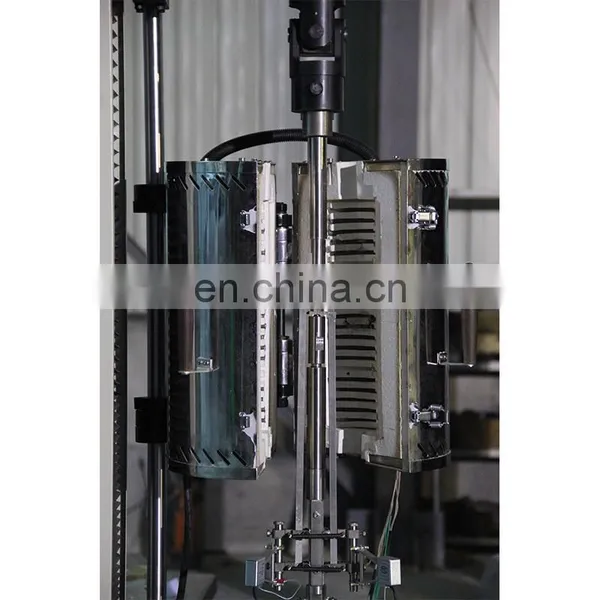

Heating element material |
FeCrAl resistance wire |
||
Furnace wire diameter |
φ1.5mm |
||
|
Thermometric element |
K type temperature measuring thermocouple (including special compensation conductor) |
||
Soaking zone length |
100mm |
||
Heating sections quantity |
3 |
||
Temperature measuring point number |
3 |
||
Temperature measuring sensitivity |
0.1°C |
||
Temperature measuring accuracy |
0.2% |
||
hearth inner diameter |
Diameter×length:φ 90×300(240,380)mm |
||
|
Temperature accuracy |
Test temperature (°C) |
temperature departure |
temperature gradient |
GB/T4338 | |||
≤300~600 |
±3 |
||
≥600~900 |
±4 |
||
>900 |
±5 |
||
Heath inner diameter |
Diameter x length: 80 mm |
||
Dimension |
diameter x length:φ300×450mm |
||
Tensile jig, bar sample |
M12×φ5 |
||
|
Temperature measurement and control system |
HMI human computer interface |
||
Working voltage |
380v temeprature |
||
heating power |
Temperature limit power 5kw |
||
