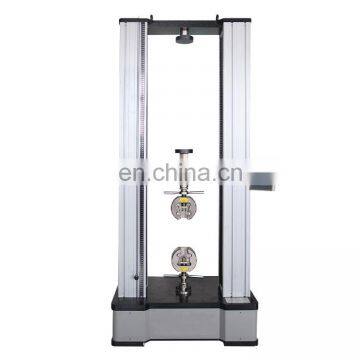

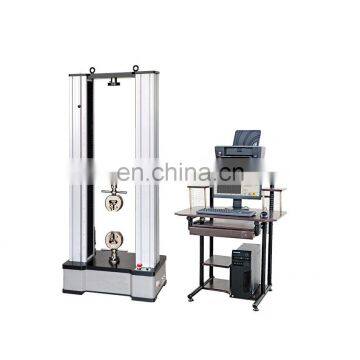

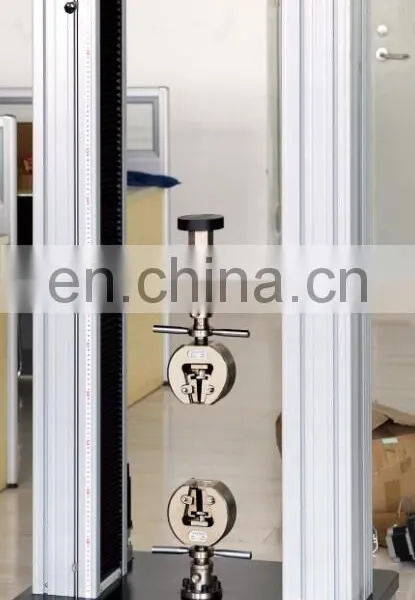

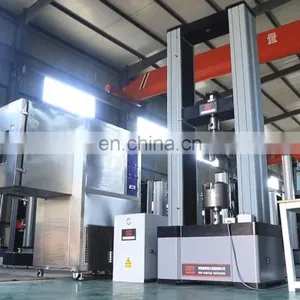

Digital Display Electronic Plastic tensile testing machine
1. Application:
WDS series digital display electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Features:
1. Automatic calibration: system can automatically realize the accuracy of the calibration value
2. Automatic stop: After the sample broken, automatic stop.
3. Automatic display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
4. Automatic return: beam automatic return to initial position when testing finished.
5. Breakage judgment: sample after fracture,beam automatic stop moving
6. Limiting protection: Program control and Mechanical limiting protection.
7.Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working
8. Automatic calculation: automatic calculation area after input sample diameter (round); Width, thickness (flat), sample gauge . ect
3. Technical parameter:
Model | WDS-10 | WDS- 20 | WDS- 30 | WDS- 50 | WDS- 100 | WDS- 200 | WDS- 300 | |
Max load | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN | |
Structure | four column floor model, upper is tensile and lower is compression; upper is compression and lower is tensile | |||||||
Control mode | single chip control | |||||||
Test accuracy | 1 class ( or 0.5 class optioal) | |||||||
Test force test range | 2%~100%F·S (or 0.4%-100% F.S optional) | |||||||
Test force value relative error | ≤±1% ( or ≤±0.5% optional) | |||||||
Disp. Value relative error | ≤±1% | |||||||
Disp. Resolution | 0.01mm | |||||||
Speed adjusting range | 0.05-300mm/min (can customize) | 0.05-200mm/min (can customize) | ||||||
Speed relative error | ≤±1% | |||||||
Effective tensile space | 700 mm can customize) | 650 mm
| 600 mm | |||||
Effective compression space | 700 mm (can customize) | 650 mm | 600 mm | |||||
Effective test width | 400 mm (can customize) | 450 mm | 550 mm | |||||

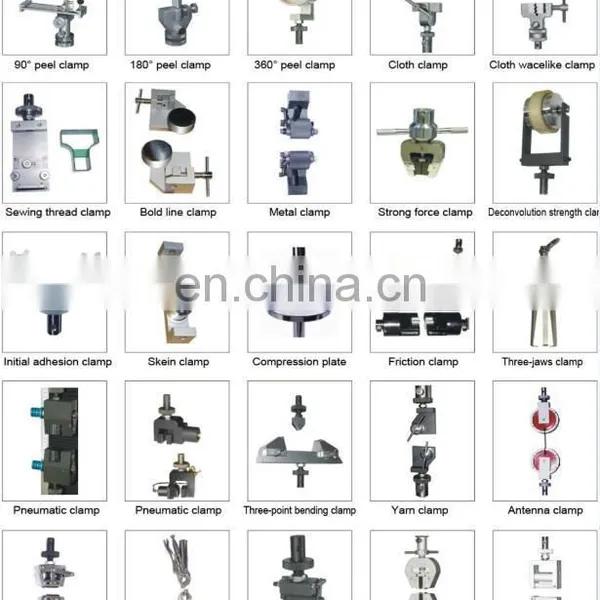

Sample clamping way | Manul clamp, hydraulic clamp(optional) | |||||||
Main unit power | AC220V±10%,50Hz | |||||||
