laboratory used Vaccuum tester aerospace test equipment
- 100 Set / Sets per Month
- Tianjingang
- T/T Credit Card
Product Details
Brand Name: | Zhongkemeiqi | Place of Origin: | Tianjin, China | Model Number: | MQ-KM3 |
Power: | Electronic |
Product Description
Product Show: |
Product Process: |
Product Parameters: |

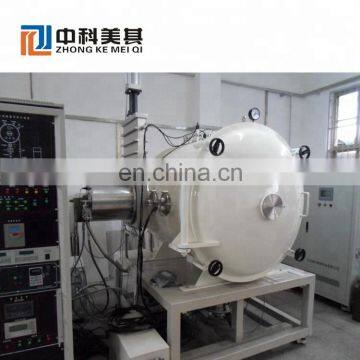

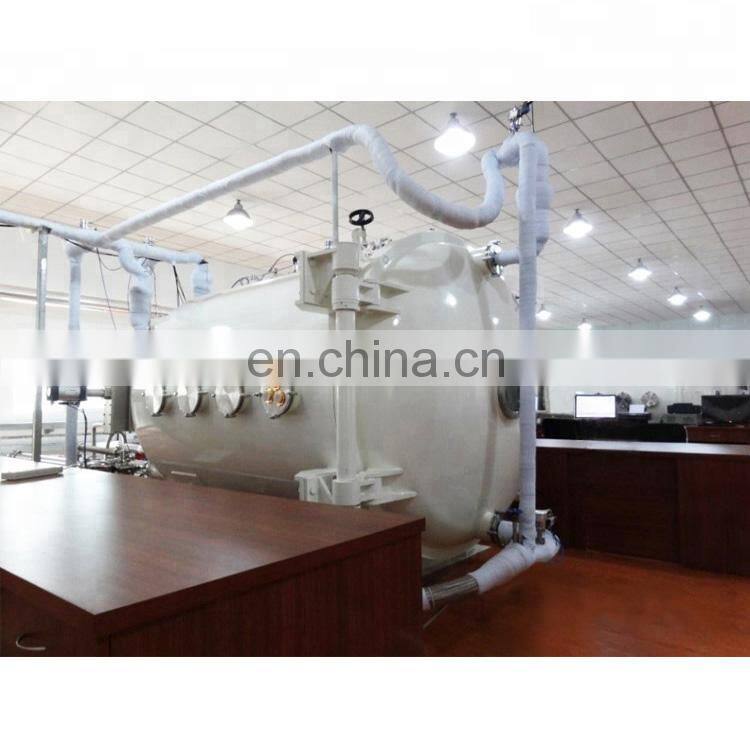

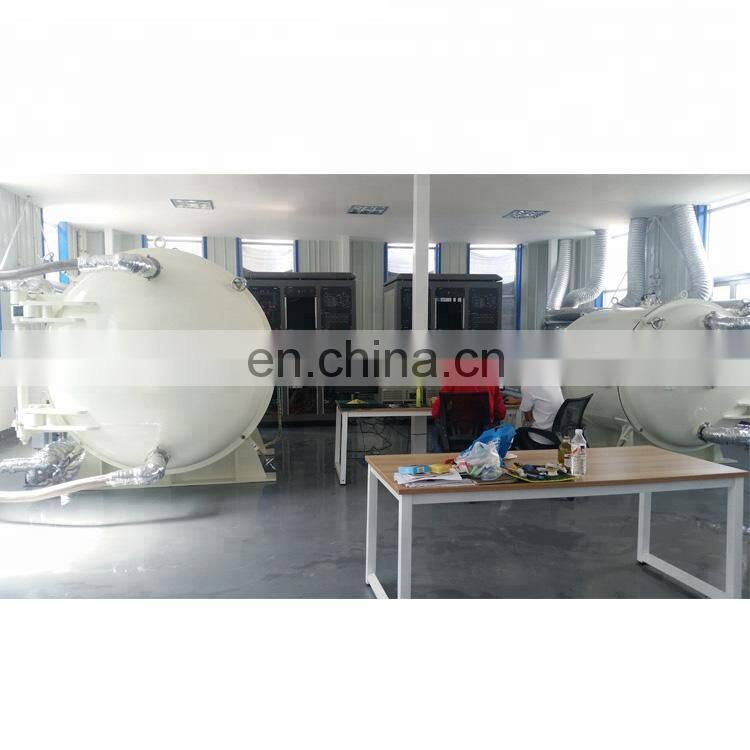

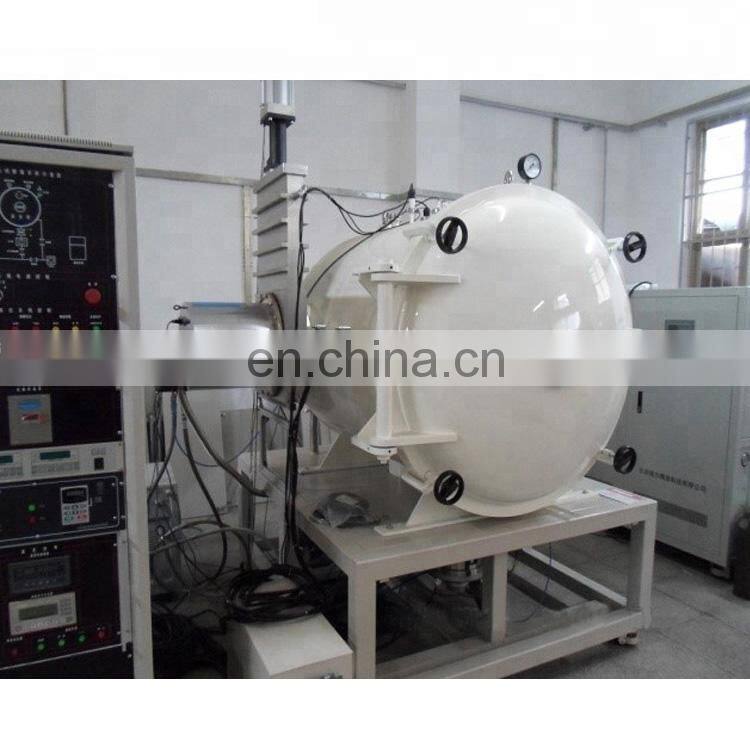

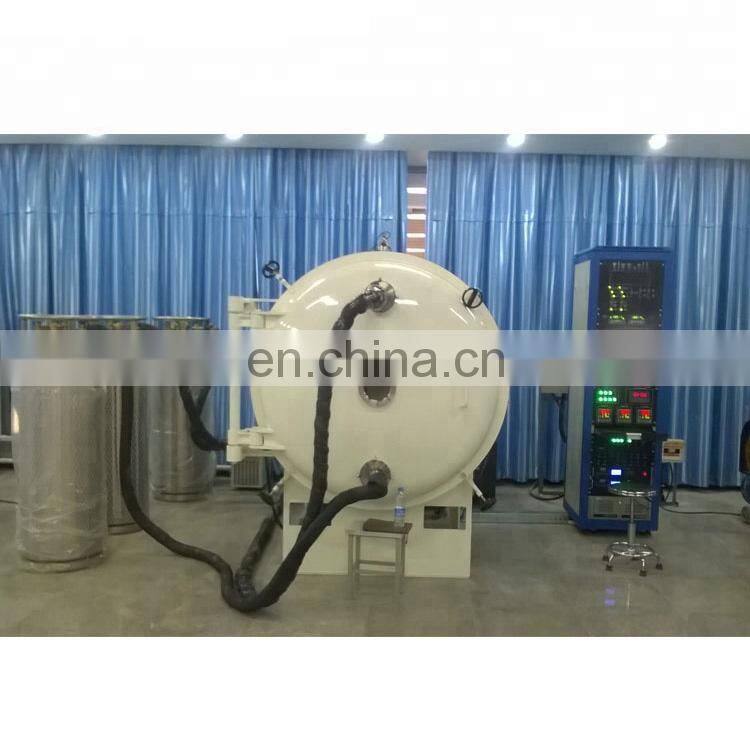

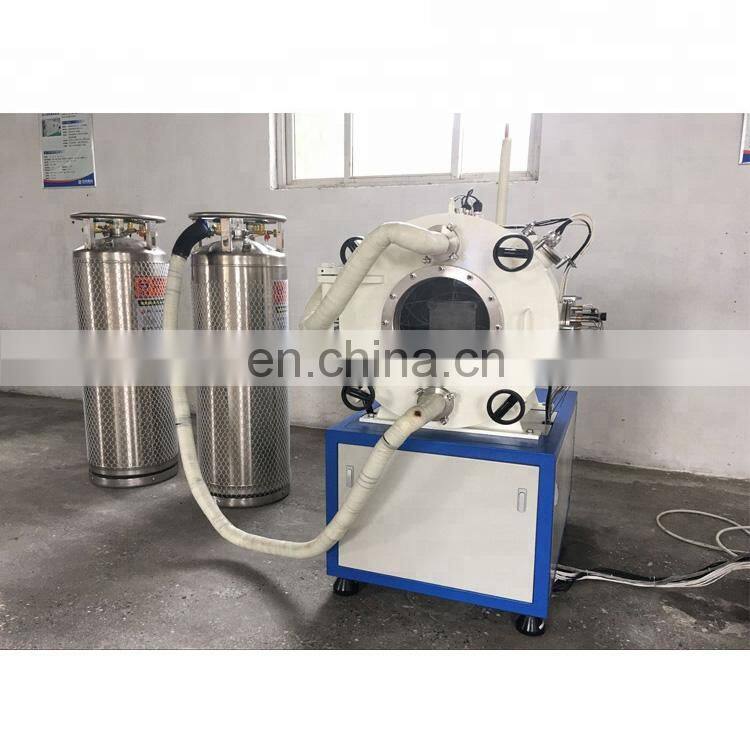

Space environment simulation test equipment
Product Usage:
The space environment simulation test equipment is used in military and aerospace products to simulate the three parameters of space, including vacuum, cold black and solar radiation in the ground environment. Various thermal vacuum tests and thermal balance tests are performed. The space environment simulation equipment can realistically simulate the cold and hot environment of the vacuum space, can perform the thermal vacuum test on the test piece, and effectively control, monitor and record the temperature of the test piece in the vacuum space, and provide the test for the related aerospace product. The necessary conditions.
Implementation and meeting standards:
GJB 1027A :Carrier, Upper Stage, and Spacecraft Test Requirements
GJB 1033 :Satellite Thermal Balance Test Method
QJ 1446A :Satellite Thermal Balance Test Method
QJ 2630.1 :Satellite Component Space Environmental Test Method - Thermal
Vacuum Test
QJ 2630.2 :Satellite Component Space Environmental Test Method - Thermal Balance Test
QJ 2630.3 :Satellite Component Space Environment Test Method - Vacuum Discharge Test
GB 150-1998 :Steel Pressure Vessels
GB/T 3164-2007: Graphical Symbols for Vacuum Technology System Diagrams
GB/T 6070-2007 :Vacuum flange
GB 50054-1995 :Low Voltage Distribution Design Specification
GB 50316-2008: Industrial metal pipeline design specification
Product features:
Space environment simulation test equipment has a high degree of automation, precise temperature control, simple and convenient operation, stable and reliable long-term operation;
The coolant temperature adjustment stage realizes the coexistence of radiation and heat conduction in a vacuum environment, and increases the temperature rise and fall of the specimen. Use cryogenic pumps and dry pumping systems to eliminate oil contamination from the vacuum system;
Composite refrigerant and heating cage method, the use of mechanical refrigerant mechanical compressor refrigeration, heat sink minimum temperature can reach -175 °C, with the heating cage temperature can reach 150 degrees;
Liquid nitrogen refrigeration adopts a pressure-adjusting liquid nitrogen process, which saves the use of liquid nitrogen and has a wide test temperature range. Using heating cage partition temperature control method, temperature uniformity can reach±2 °C;
A plurality of vacuum containers can share a vacuum system. Each container has an independent valve control, which can work independently or at the same time.
The overall structure of the space environment simulation equipment consists of five aspects: vacuum vessel, vacuum pumping system, temperature guarantee system, equipment control monitoring system and auxiliary system.
The vacuum chamber volume can be designed according to the user's requirements, and the device can be expanded with magnetic fluid seal torque loading, quartz crystal microbalance testing, and quadrupole mass spectrometry detection.
Technical indicators
product name | Space environment simulation test equipment | ||
Product model | MQ-KM1 | MQ-KM2 | MQ-KM3 |
Vacuum chamber size | φ1000X1500mm | φ2000×2500mm | φ3000×3500mm |
Ultimate vacuum | ≤5×10-5Pa | ||
Working vacuum | ≤1.0×10-3Pa | ||
Refrigeration method | Coolant method | Compound working method | Liquid nitrogen refrigeration |
Heat sink + cold plate | Heat sink + heating cage | Liquid nitrogen heat sink + heating cage | |
Temperature range | -75℃~+130℃ | -110℃~+150℃ | -173℃~+170℃ |
Temperature stability | ≤1℃/h | ≤1℃/h | ≤1℃/h |
Temperature uniformity | ≤±2.0℃ | ≤±3.0℃ | ≤±5.0℃ |
Temperature control accuracy | ±1℃ | ±1℃ | ±1℃ |
Heating rate | ≥1℃/Min | ||
Vacuum system leakage rate | <5×10-9 Pa.m3/s | ||
Noise | Vacuum pumping equipment noise <70dB | ||
Vacuum time | The container can be pumped to better than 1.0×10 -3 Pa within 4 hours under no-load conditions at normal temperature | ||
Temperature detection system | The system uses multi-channel Pt100 temperature inspection meter to measure multi-point temperature | ||
Control monitoring system | Mainly includes industrial control computers, control cabinets, PLCs, instruments, various operation control switches, etc. | ||
Controller | Siemens PLC, communication module, communication cable | ||
Voltage | 380±10% VAC, 3L+N+G | ||
Standard configuration | Sample platform 1 set, 1 manual | ||
safety devices | Phase sequence protection, leakage protection, reliable grounding, emergency power off button, over voltage, over current, over temperature alarm and protection control | ||
Environmental requirements | Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 40% RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around; | ||
Note: 1. The performance parameters are in the ambient temperature of 25 °C, vacuum chamber no-load test; 2.according to the specific requirements of the user non-standard custom; 3. This technical information is subject to change without notice. |
Related Products: |
Click the pictures for detail product info
Packing & Delivery: |
About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
Factory Display: |
Our Certificates: |
FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
