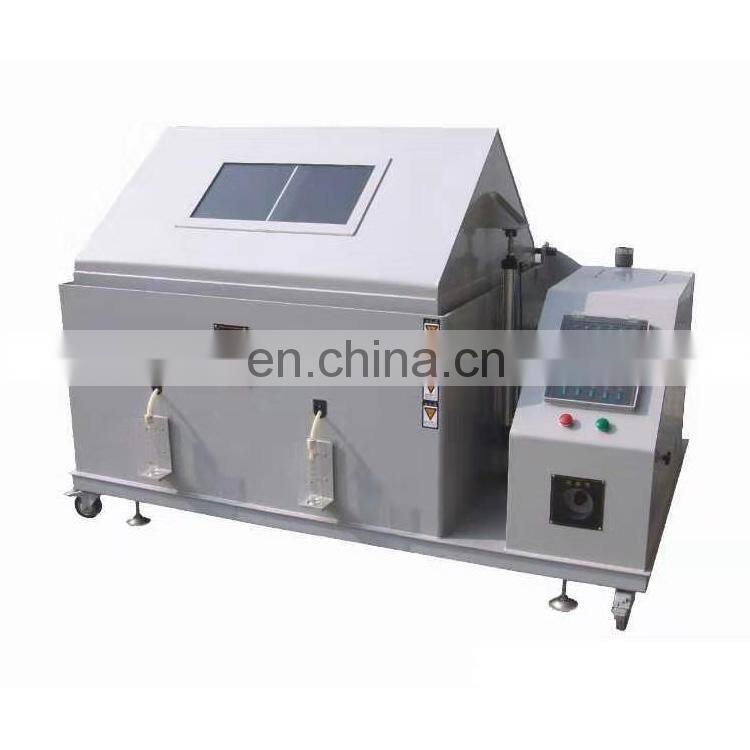

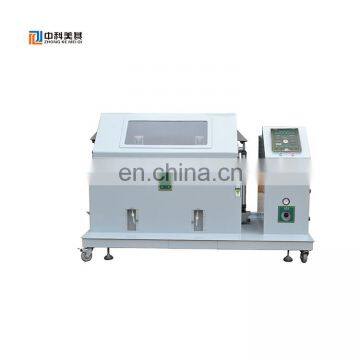

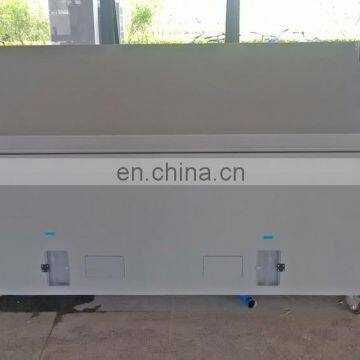

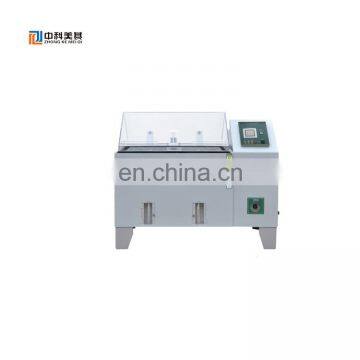

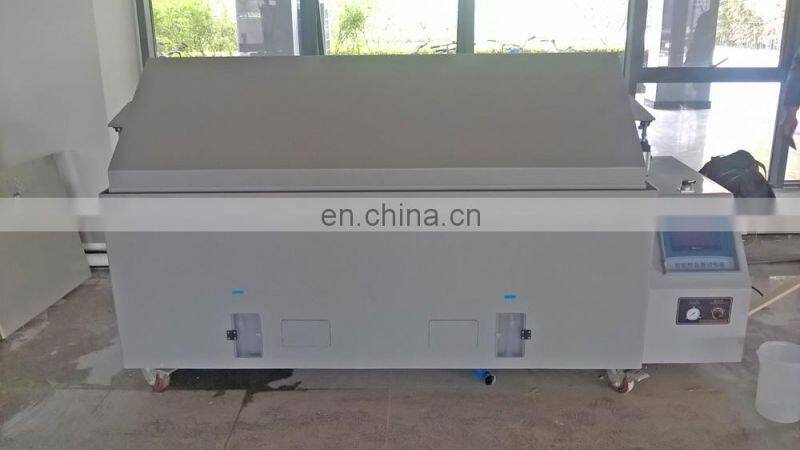

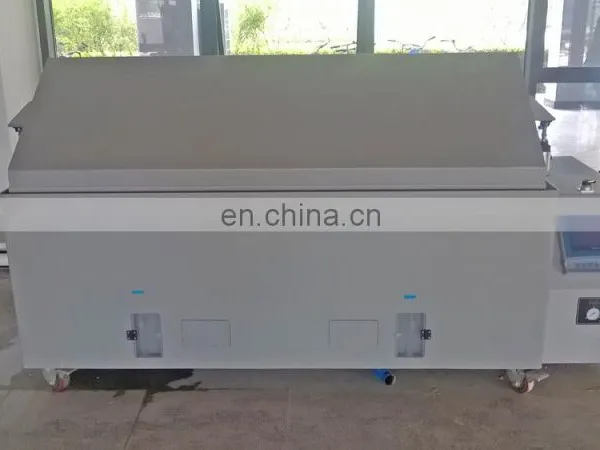

Stainless Steel Salt Spray Corrosion Test Machine / Salt Fog Test Chamber / Salt Spray Corrosion Cabinet
| Product Show: |

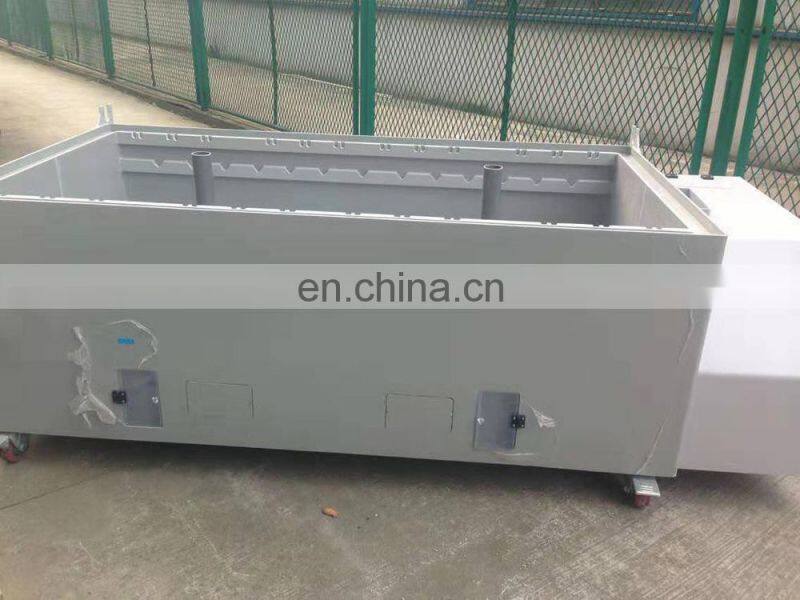

| Product Process: |
| Product Parameters: |
Application:
The salt spray test box is suitable for the salt spray corrosion test of the parts, metal materials and products of electronic, electrician, auto parts, hardware tools, etc
mperature protection;
Parameters:
Product Name |
Salt Spray Test Chamber |
|||||
Product Model |
MQ-YW-60 |
MQ-YW-90 |
MQ-YW-120 |
MQ-YW-160 |
MQ-YW-200 |
|
Volume(L) |
108 |
270 |
480 |
800 |
1440 |
|
|
Internal Size W×H×W(mm) |
600×400×450 |
900×500×600 |
1200×500×800 |
1600×500×1000 |
2000×600×1200 |
|
|
External Size W×H×W(mm) |
1150×1090×672 |
1450×1200×842 |
2080×1285×1240 |
2480×1520×1450 |
2900×1550×1650 |
|
Performance Index |
Temperature Range |
LaboratoryTemperature Range :RT~50℃ Saturated air barrelTemperature Range :RT~63℃ |
||||
Temperature Deviation |
±1.0℃ |
|||||
Temperature Uniformity |
≤2.0℃ |
|||||
Temperature Fluctuation |
±0.5℃ |
|||||
Heating Rate |
Test Room RT→+50℃≤60 min Pressure Barrel RT→+63℃≤60 min |
|||||
Salt fog deposition |
1~2ml/80 square meter (At least 16 hours were collected and averaged) |
|||||
Spray Pressure |
70~170Kpa |
|||||
Spraying Mode |
Continuous spray |
|||||
Test time |
1~999(S,M,H)adjustable |
|||||
PH |
6.5~7.2 3.0~3.2 |
|||||
Main Part |
Control System |
LCD touch screen temperature controller |
||||
PT100 thermocouple (armor), PID control | ||||||
Spraying System |
The Nozzle is made of special glass material, the size and angle of spray can be controlled |
|||||
operate manual spray or set automatic spray according to program | ||||||
Structural Features |
Material Enclosure |
Imported PVC polyethylene board is adopted |
||||
Medicament refill cylinder |
hidden type supplementary water gauge |
|||||
Pressurized air drum |
SUS304# stainless steel high-pressure barrel |
|||||
Test Rack |
The plane indexing frame can be used to adjust the Angle of fog falling or being foggy at any direction |
|||||
Cover Material |
imported European acrylic board |
|||||

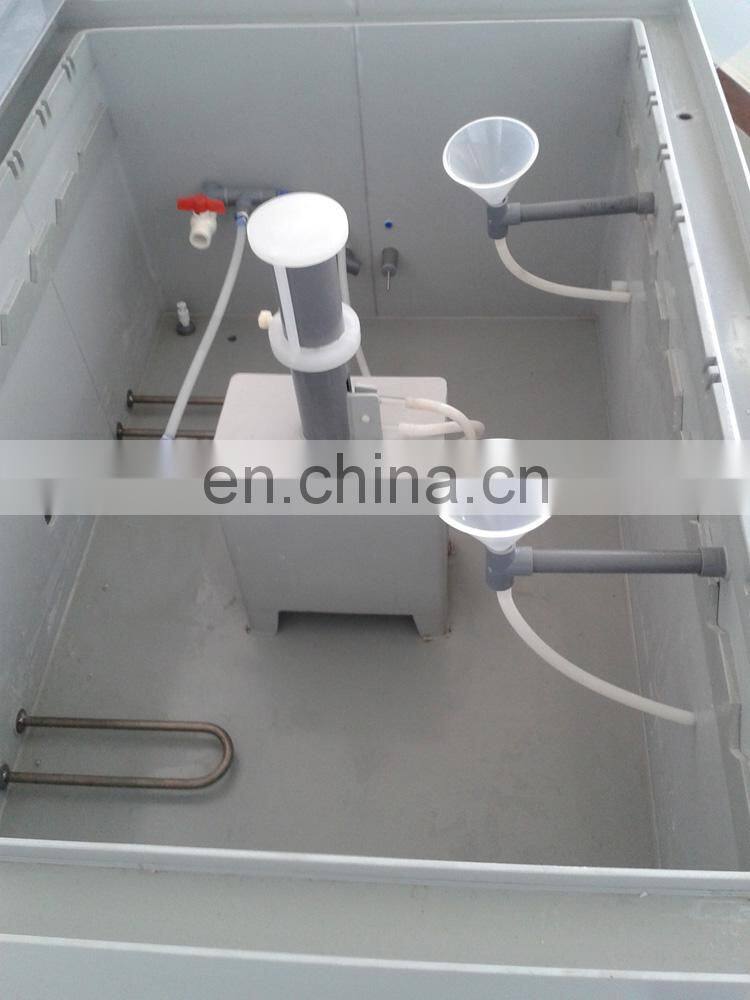

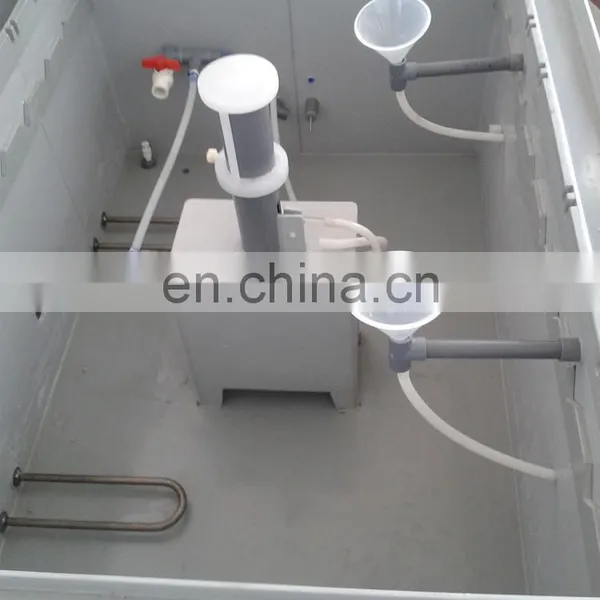

Spray Tower |
air atomizing nozzle, height can be adjusted |
|||||
Spray volume collector |
Cone funnel with diameter of 100mm |
|||||
Heating System |
Titanium alloy heat pipe, steam heating, P.I.D. control heating |
|||||
Brine Tank |
Made of PVC board |
|||||
Saturated air barrel |
SUS304 Stainless |
|||||
Drain line |
acid and alkali resistant PVC piping |
|||||
Heater |
Titanium alloy armored electric heating tube (test chamber bottom heating) SUS316# stainless steel armoured heating tube (saturation barrel) |
|||||
Standard Fittings |
1 set of nozzles, 2 fog collecting and measuring cylinders, 2 fog collecting collectors, etc |
|||||
Safty Device |
Leakage, short circuit, motor overheating, overload, over current protection |
|||||
Supply Voltage |
AC220V 50Hz |
|||||
Environment Requirement |
Temperature 5.0~+30.0℃,Humidity≤85%RH,Air Pressure 86Kpa~106Kpa |
|||||
Standard Compliance :
1)GB/T2423.17-2008/IEC 60068-2-11 Test method for salt spray
2)ASTM.B117-2009 Test method for salt spray
3)JIS H8502 Test method for saline spray
4)GB/T10125-2012/ISO 9227-2006Test method for saline spray
5)GB-T5170.8-2008 Test method for environmental test equipment for electrical and electronic products - salt spray test equipment
6)GB-T5170.11-2008 Test method for corrosive gas test equipment
7)GB-T10587-2006 Technical conditions of salt spray test chamber
8)GBT 20121-2006 / ISO11474-1998 Corrosion of metals and alloys - corrosion tests in artificial atmospheres - outdoor accelerated test under salt spray - scab test
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
