CE approved Plastic UV aging thermal aging test chamber equipment wholesale
- 100 Set / Sets per Month
- Tianjingang
- T/T Credit Card
Product Details
Brand Name: | Zhongkemeiqi | Place of Origin: | Tianjin, China | Model Number: | MQ-UV-1 |
Power: | Electronic |
Product Description
Product Show: |
Product Process: |
Product Parameters: |

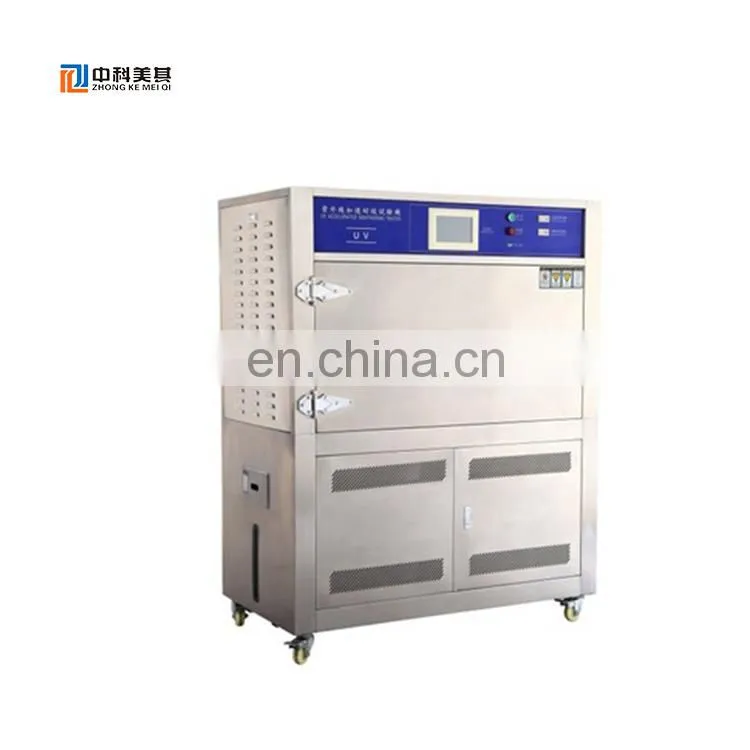

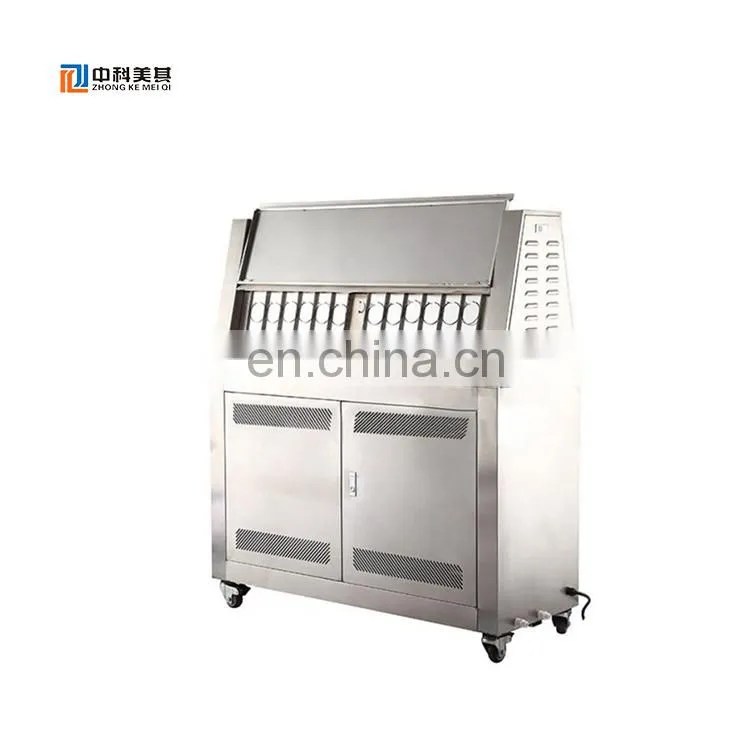

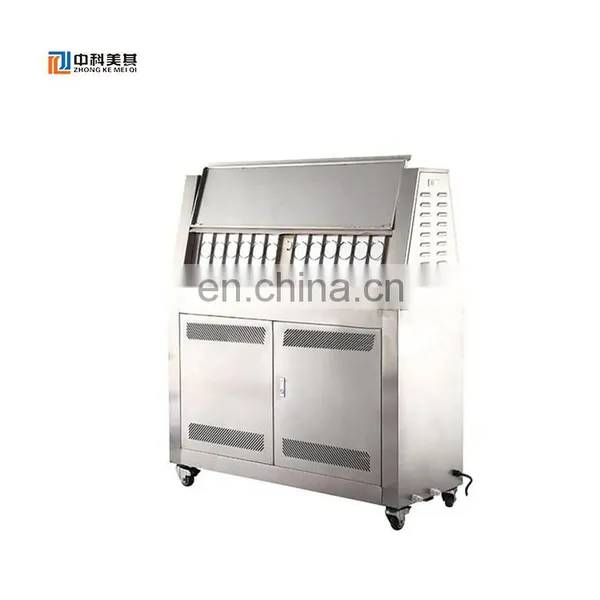

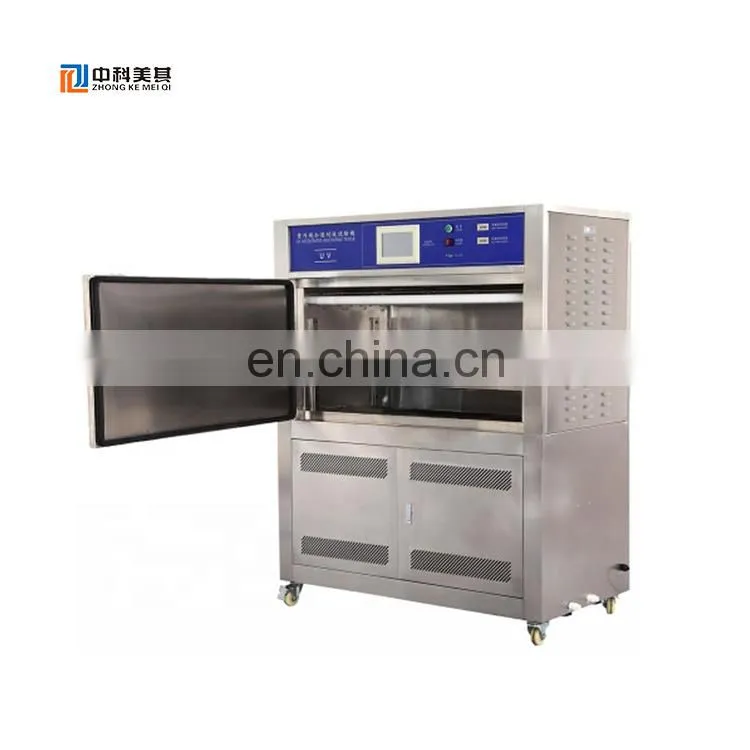

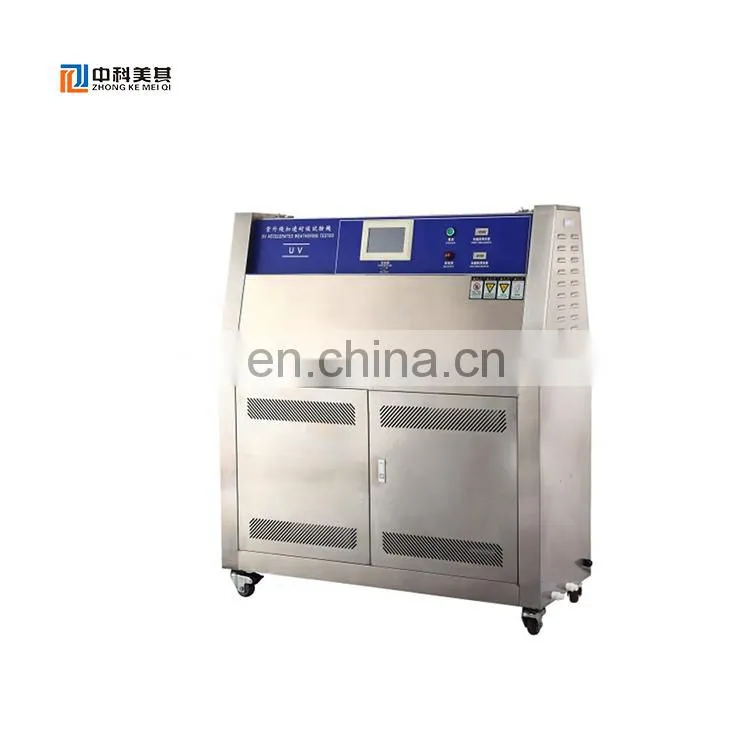

UV weatherproof test chamber
Product Usage:
The UV aging test chamber uses a fluorescent UV lamp as a light source to simulate the weathering resistance of the material by simulating ultraviolet radiation and condensation in natural light to obtain the weather resistance of the material, which can simulate ultraviolet, rain and high temperature in natural climate. Environmental conditions such as high humidity, condensation, darkness, etc., by recreating these conditions, merge them into a loop and let it automate the number of completion cycles.
Implementation and meeting standards:
GB/T16422.3-1997 Plastic laboratory light source exposure test method
GB/T16585-1996 Test method for artificial weathering (fluorescent ultraviolet lamp) of vulcanized rubber
GB/T14522-2008 Plastics, coatings, rubber materials for machinery industry - artificial climate accelerated test method
ASTM G154-00a Non-metallic materials fluorescent UV exposure Shenbei operating standards
ASTM D4329 UV Photoaging Test Standard
ASTMD 4799-2003 Test method for accelerated aging of bituminous materials (fluorescent UV and condensation)
ASTM D 4587 Coating aging UV test standard
SAE J2020:2003 Aging test of automotive exterior materials
ISO4892 Plastic laboratory light source exposure method Part 3 Fluorescent UV lamp
Technical indicators
Product name | UV weatherproof test chamber |
Product model | MQ-UV-1 |
Temperature and humidity control instrument | Programmable 7" touch screen controller Optional one/two irradiance measurement and control system ( sun eyes) |
External size length × width × height (mm) | 1300mm×500mm×1460mm |
internal size length × width × height (mm) | 1140mm×400mm×380mm |
Standard test specimen size | Option 1 : 75×290mm , total 24 pieces Option 2 : 75×150mm , total 48 pieces
|
Center distance inside the lamp tube | 70mm |
Distance between the specimen and the center of the lamp tube | 50mm±3mm |
Wavelength range | UVA340 wavelength range 315~400nm , the peak is around 340nm UVB313wavelength range280~315nm , the peak is around 313nm
|
Irradiance range | With sun eyes: 0.4~1.0W/m2 ; Without sun eyes : Maximum power output |
Temperature range | RT+10℃~70℃ available |
Humidity range | 95%~100%RH |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | ±2℃ |
Related Products: |
Click the pictures for detail product info
Packing & Delivery: |
About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
Factory Display: |
Our Certificates: |
FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
