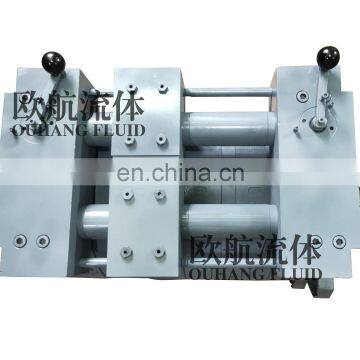

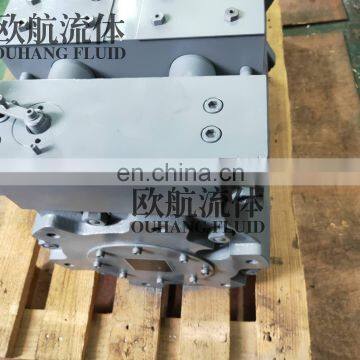

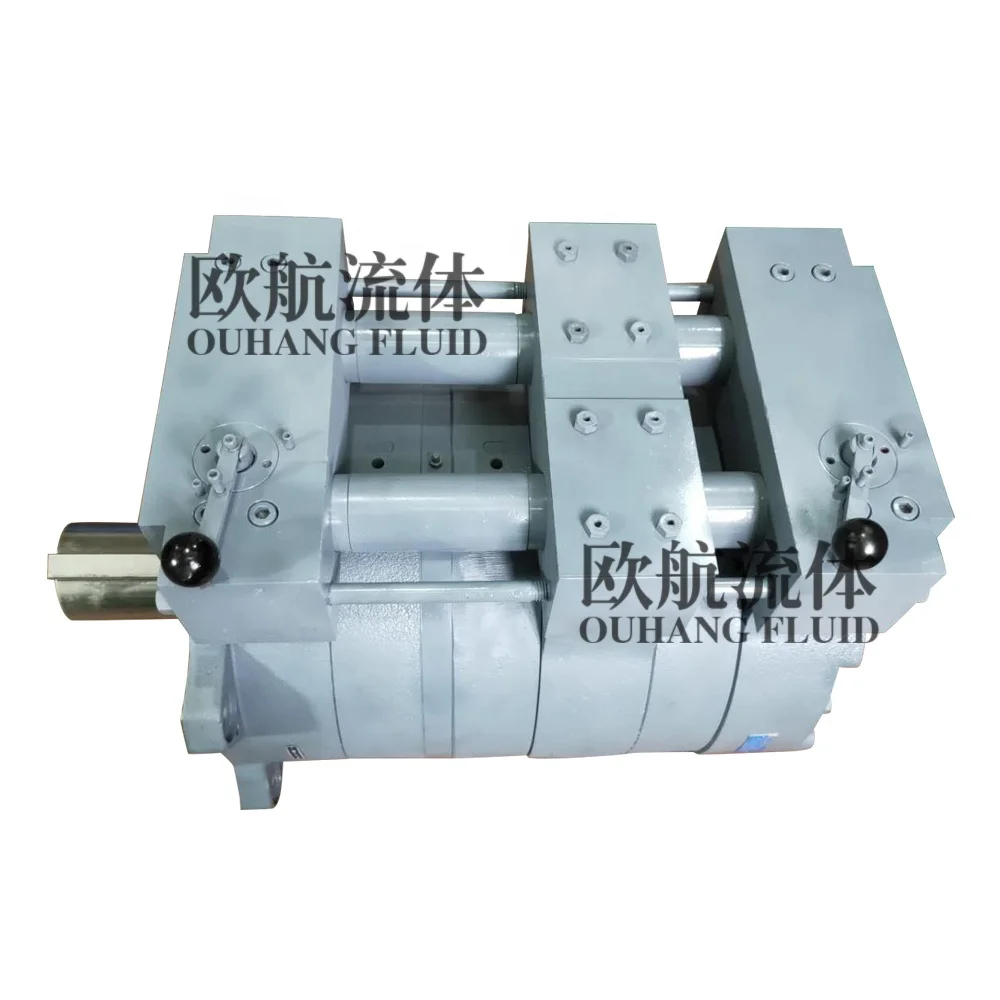

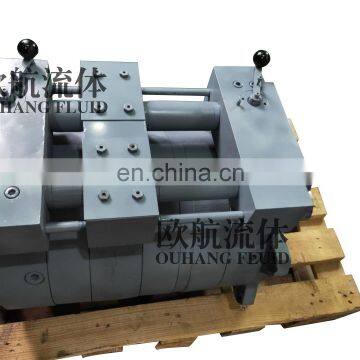

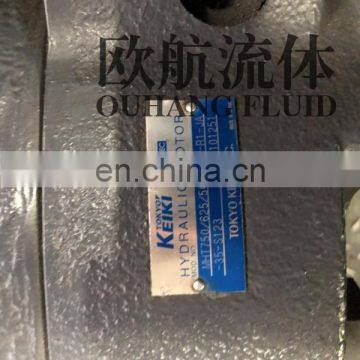

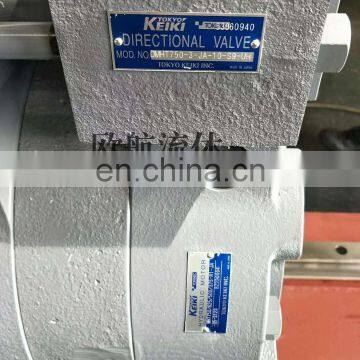

Large Torque and Large Displacement Vane Motor TOKIMEC MHT750/625/500/375-R1-JA Hydraulic Motor
US$ 4,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TOKIMEC
Place of Origin:
Japan
Power:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rexroth MCR3D400L40Z32B2M Hydraulic MotorUS$ 100 - 101MOQ: 1 Set -
Rexroth MCS3-D250-L40Z-21-A0M Hydraulic MotorUS$ 100 - 101MOQ: 1 Set
-
Rexroth MOS5-D600-L50Z-23AOM Hydraulic MotorUS$ 100 - 101MOQ: 1 Set
-
STAFFA Axial High-speed Hydraulic Five-star MotorUS$ 500 - 2,000MOQ: 1 Set
-
STAFFA Axial Piston Oil Motor HM-B200-S3-FM4-30 Hydraulic Five-star MotorUS$ 500 - 2,000MOQ: 1 Set
Brand Name
TOKIMEC
Place of Origin
Japan
Product Description
Precautions during use
● please use 6 bolt mounting holes for installation method. Please tighten the bolts according to the specified tightening torque (refer to the overall dimension).
● the rotation direction mht24-90 can be bidirectional. Mht150 and above are special for right rotation (when viewed from shaft end).
● it can not be used as brake (pump).
● please connect the oil drain pipe directly to the oil tank. The allowable back pressure of oil drain circuit is 0.17mpa.
● when operating under the condition of 3.5Mpa or more than 50 revolutions per minute, please confirm whether the oil discharge is greater than the following value. If it is less than the specified value, increase the back pressure on the outlet side of the hydraulic motor and increase the oil discharge before starting the operation.
● please keep the temperature difference between the hydraulic motor and the hydraulic oil within 28 ° C. When the temperature of the hydraulic motor is low and the temperature of the hydraulic oil is relatively high, please operate under the condition of no-load and low speed (below 50min-1), control the temperature difference within 28 ° C, and then carry out the normal operation.
● when running for the first time, please inject hydraulic oil from each port and fill the hydraulic motor with hydraulic oil before starting to run.
Characteristic
This type is hydraulic balanced vane motor, with a wide range of speed and torque.
● small volume and large output torque.
● at a low speed of 10 revolutions per minute, it can also rotate stably.
● no gearbox and other reduction mechanism is required, which can realize miniaturization of design.
Technical Parameters
Model | displacement | Maximum service pressure Mpa | Theoretical torque (differential pressure 0.7MPa) N.m | Rotational speed min | Weight kg | ||
cm3/rew | minimum | Highest | |||||
MHT24 | 298 | 14 | 33 | 10 | 400 | 55 | |
MHT32 | 398 | 44 | 400 | 55 | |||
MHT50 | 620 | 69 | 350 | 95 | |||
MHT70 | 868 | 97 | 300 | 110 | |||
MHT90 | 1116 | 124 | 300 | 110 | |||
MHT150 | 1860 | 207 | 250 | 165 | |||
MHT190 | 2360 | 263 | 200 | 240 | |||
MHT250 | 3100 | 346 | 200 | 240 | |||
MHT380 | 4720 | 526 | 200 | 335 | |||
MHT500 | 6200 | 691 | 200 | 335 | |||
MHT750 | 9300 | 1036 | 100 | 420 | |||
MHT1000 | 12400 | 1381 | 75 | 505 | |||
