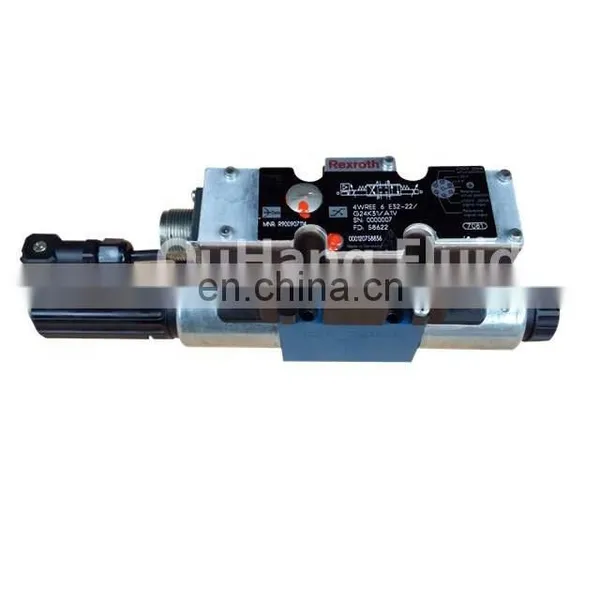

Rexroth Proportional Valve 4WREE 6 E33-22-G24K31-A1V

Rexroth Proportional Valve 4WREE 6 E33-22-G24K31-A1V thumbnail-1
Rexroth Proportional Valve 4WREE 6 E33-22-G24K31-A1V photo-1
US$ 8,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Rexroth
Place of Origin:
Germany
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Shenzhen Ou Hang Fluid Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Rexroth
Place of Origin Germany
Pressure High Pressure
Product Description
--- Directly controlled proportional directional valve with displacement electrical feedback and integrated amplifier board (OSE) (for model 4WREE); --- Closed-loop control of flow direction and size; --- The valve is controlled by a proportional solenoid with a central thread, and the coil can be removed separately; --- For floor mounting: mounting surface according to ISO 440; 1 The bottom plate can be ordered separately according to the sample RC 45052 (path 6) or RC 45054 (path 10); --- The control spool is centered by a spring; --- Electric controller; 4WREE --- Integrated amplifier board (OBE) with voltage input or current input (A 1 resp. FI); · 4WRE (three-digit four-way model), ordered separately: --- Digital or analog amplifier, European card system; --- Modular analog amplifier; 4WRE… A (two-way four-digit model), ordered separately: --- Modular analog amplifier;  Function Description The two-position four-way and three-position four-way proportional directional valves are directly controlled and have a plate structure. Operated by a proportional electromagnet, the proportional electromagnet has a central thread, and the coil can be detached separately. The control of the electromagnet can be achieved by an external amplifier board (model 4WRE) or an integrated amplifier board (model 4WREE). structure: The valve is mainly composed of the following parts: --- Shell with mounting bottom; --- Control spool with centering spring and spring seat; --- Electromagnet and pole tube with center thread; --- position sensor; --- Optional with integrated electric controller; --- Mechanical zero position adjustment via pg13.5, electrical zero position adjustment via model 4WREE;
Technical Parameters
The way to
6
10
Installation location
Arbitrary, it is recommended to install horizontally

stored temperature
 -20至+80

temperature
-20至+50

weight
2.4
6.5
Working pressure


Port A.B.P      bar
315

Port T              bar
210

Nominal flow qv nom at △ p = 1 0bar
8，16，32
25，50，75
Maximum allowable flow
80
180
Oil temperature
-20 to +80 (preferably +40 to +50)
-20 to +80 (preferably +40 to +50)
