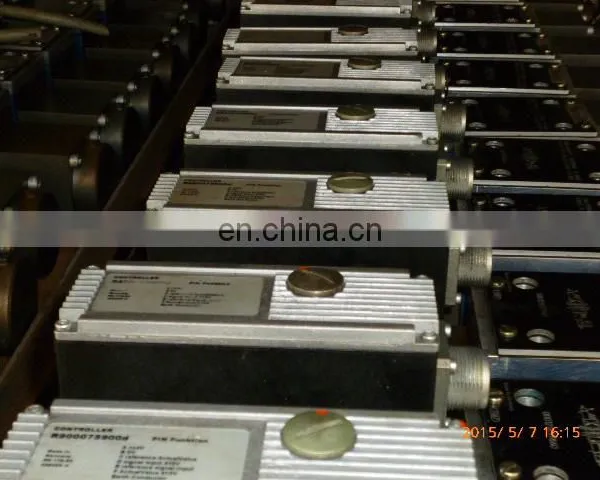

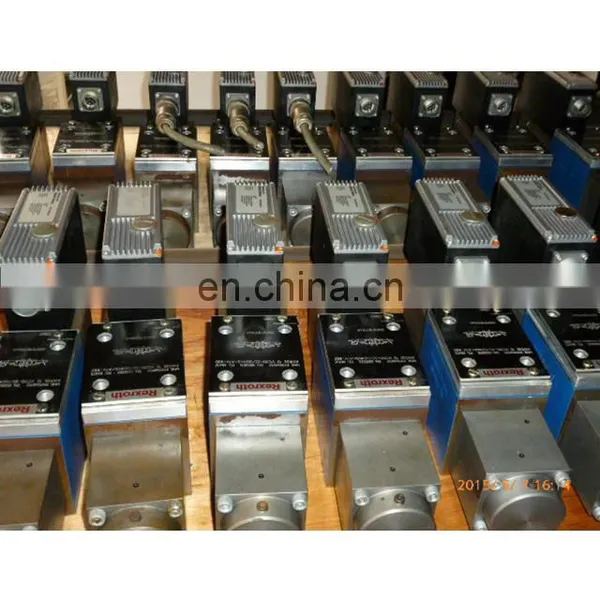

Used Rexroth electro-hydraulic proportional valve special 4WRSE
USD $1 - $2
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Any port
- T/T Credit Card
You May Like
- Rexroth cartridge servo valve STW-0243-10 use for CNC punch
- Supply Rexroth servo valve 4WRGE 16 Q0-125P use for metallurgy and steel works
- Rexroth Servo Valve 4WS2EM10-45-20B2ET315K Pilot Servo Valve
- Special supply rexroth servo valve 4WS2EM10-51-75B11ET315K31EV
- Rexroth Servo Valve 4WSE2EM6-21-10B8ET210K17EV
- Atos Proportional Electro-Hydraulic Valve RZMO-TERS-PS-010
Product Details
Brand Name: | Rexroth | Place of Origin: | Germany | Pressure: | High Pressure |
Product Description
Product Description
The three-position four-way directional control valve is used as a direct-acting device in the valve plate design. Operation is affected by the control coil. Coils are controlled by integrated control electronics (OBE). The basic components of the valve include:
-Housing with connection surface
‐ Control spool with compression spring
‐ Coil
- position sensor
‐ Integrated Control Electronics (OBE)
‐ Zero potential adjustment via Pg9 cover
product features
--- Direct-operated high-frequency directional valve with integrated control electronics (OBE) for controlling flow direction and flow
--- Suitable for position and speed closed-loop control
--- Operation through control coil
--- Electrical position feedback
--- High response sensitivity and low hysteresis
--- Integrated Electronic Components (OBE)
--- For base plate installation: hole pattern according to DIN 24340 type A and ISO 4401
Technical Parameters
model | 4WRSE | ||
specification | 6 | 10 | |
Working pressure | 315 | ||
Working pressure | 315 | ||
315 | |||
315 | |||
315 | |||
Maximum flow | 80 | 180 | |
Hydraulic oil temperature range | -20 … +80 | ||
Viscosity range | 20 … 380 | ||
30 … 46 |
