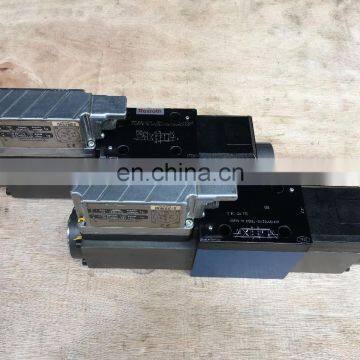

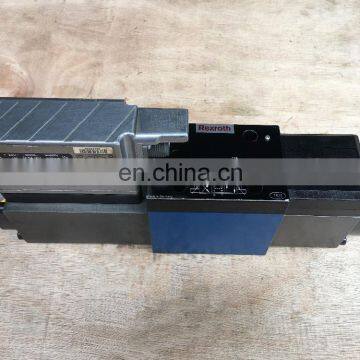

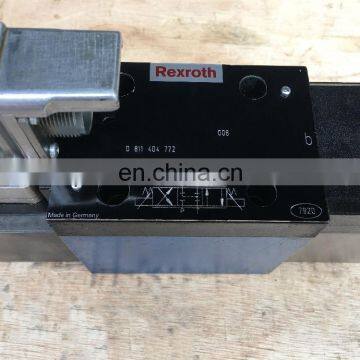

Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772

Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 thumbnail-1
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 thumbnail-2
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 thumbnail-3
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 thumbnail-4
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 photo-1
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 photo-2
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 photo-3
Rexroth Proportional Valve 4WRPE 10 W50SJ-2X/G24KO/A1M and BOSCH 0811 404 772 photo-4
US$ 100 - 101 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Bosch Rexroth
Place of Origin:
Germany
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Shenzhen Ou Hang Fluid Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bosch Rexroth
Place of Origin Germany
Pressure High Pressure
Product Description
Features
- Directly operated NG6 and 10 valves with positive overlap, actuated on both sides and position-controlled, symbol E or W - Control solenoid with on-board electronics(OBE), deadband compensation and gain calibrated at the factory - Electrical connection 6P+PE(standard), signal input: differen tial amplifier with interface A1=+10 V (F1 on request) - For subplate attachment, mounting hole configuration NG6 to ISO4401-03-02-0-94 and NG10 to ISC4401-05-04-0-94
Technical Parameters
General
Construction
Spool type valve, directly operated, without steel sleeve
Actuation
Proportional solenoid with position control, OBE
Connection type
Subplate, mounting hole configuration NG6 (ISO 4401-03-02.0-94)
Mounting position
Optional
Ambient temperature range °C
-20 .... +50
Vibration resistance, test condition
Max. 25 g, shaken in 3 dimensions (24 h)
Hydraulic (measured withHLP46, 0oi=40°C士5°C)
Pressure fluid
Hydraulic oil to DIN 51524 .. 535, other fluids after prior consultation
Viscosity range recommended mm2/s
max. permitted mm2/s
20... 100
10....800
Pressure fluid temperature range °C
-20.. +70
