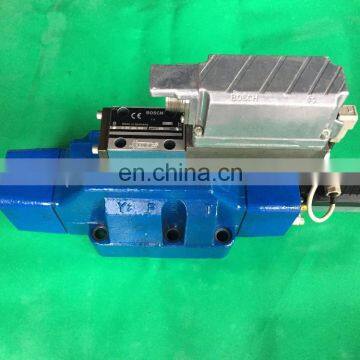

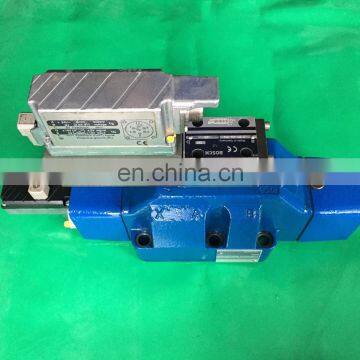

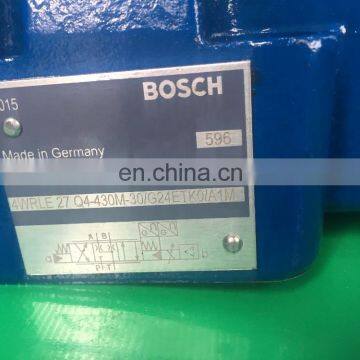

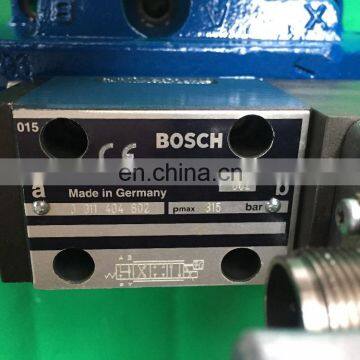

Rexroth Proportional valve 4WRLE 27 Q4-430M-30/G24ETK0/A1M or BOSCH 0811 404 438

Name: Rexroth Proportional valve 4WRLE 27 Q4-430M-30/G24ETK0/A1M or BOSCH 0811 404 438
Brand: Bosch Rexroth
Price: USD $100 - 101 / Set

FOB Price

USD $100 - $101 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Any port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Bosch Rexroth

Place of Origin:

Germany

Pressure:

High Pressure

Product Description

feature
Pilot-controlled servo electromagnetic network with diameter 10 to diameter 32
Pilot diameter 6 pilot valve, with control piston and valve sleeve, with servo performance Four-position four-way failure on one
side when the power is off
Control solenoid with integrated position feedback and integrated amplifier board (OBE) calibrated at the factory
Servo performance of main stage with position feedback
-Flow characteristics
M = progressive form with fine detail flow edge P = nonlinear curve
L = linear (only available when required)
-Electrical connection 6P + PE
Signal input differential amplifier with interface
A1 ± 10 V or interface F1 4.20 mA (R, (2002) is suitable for electro-hydraulic controllers in production and test systems for base
plate installation, the installation hole configuration is as follows
Path 10 conforms to ISO 4401-05-05-0-94,
The diameter 16 conforms to ISO 4401-07-06-0-94,
The diameter 25 conforms to ISO 4401-08-07-0-94.
The diameter 32 complies with ISO 4401-10-08-0-94
The bottom plate is according to the sample, the diameter is 10 RE 45055,
16RC 45 057 diameter, 25RC 45 059 diameter and 32 RC45060 diameter (ordered separately)
-The wiring plug is in accordance with DIN 435 63-AM6, see catalog RC 08 008 to order separately)

Technical Parameters

Summary

structure

Slide valve type, pilot control

drive

4wreh servo solenoid valve ng6-obe with position controller for pilot valve and main stage

Installation form

Base plate installation, mounting face diameter 10 35（ISO 4401）

Installation position

Arbitrarily

Ambient temperature range ℃

-20…+50

Weight kg

Size 10 8.7

Size 16 10.6

Size 25 18.4

Size 35 81
