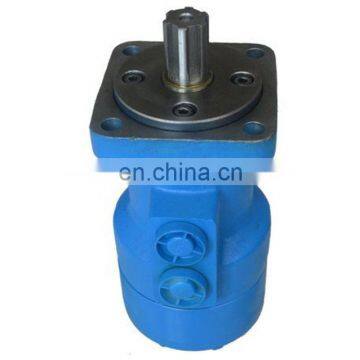

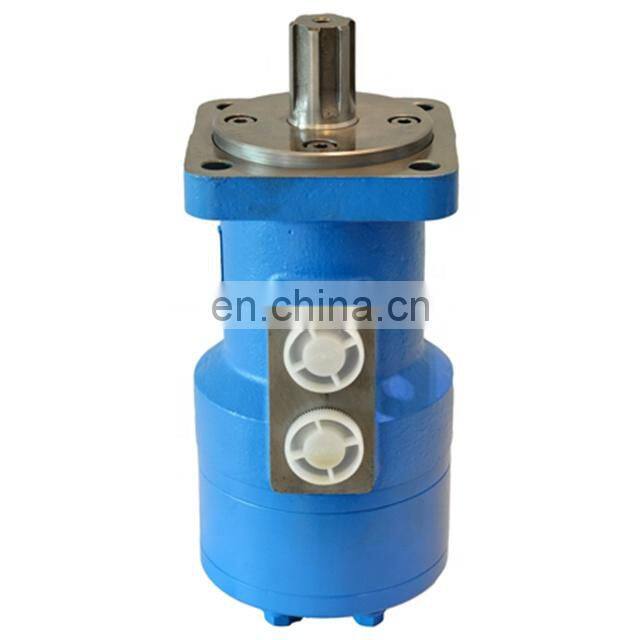

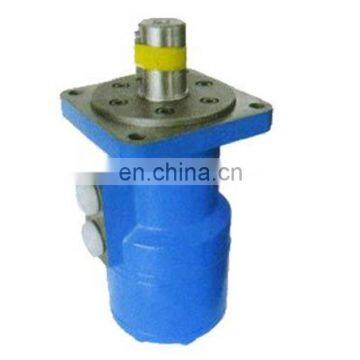

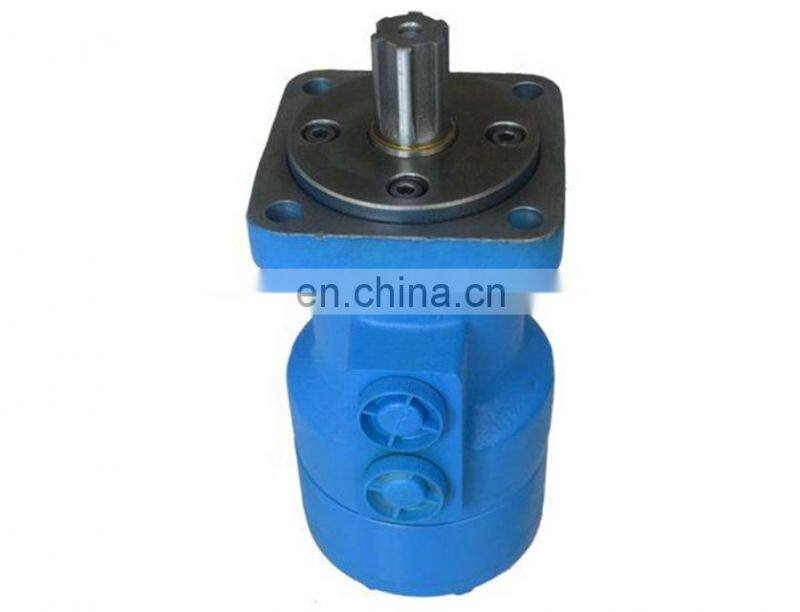

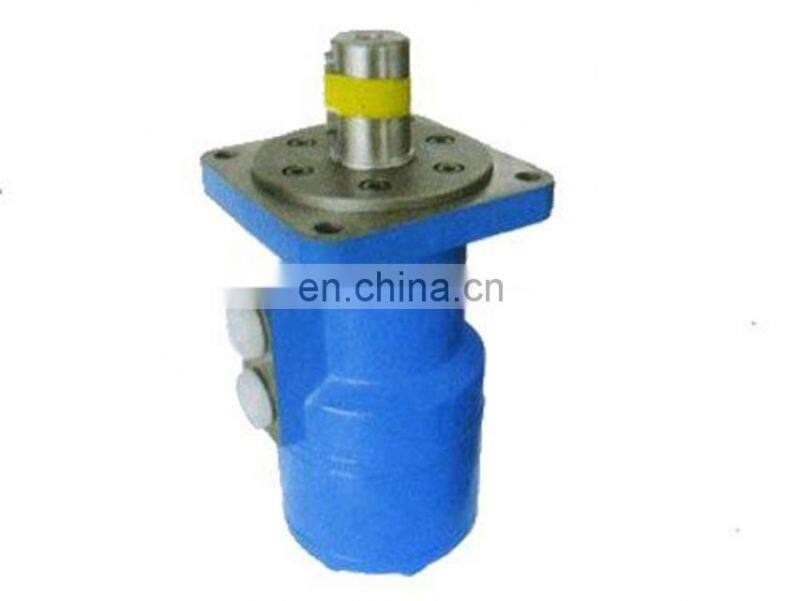

Help CenterSpool Valve Orbit Hydraulic Motor OMT Series OMT-160 OMT-200 OMT-250 OMT-320 OMT-400 OMT-500
Related Products
-
HMB080 HMB100 HMB125 HMB150 HMB200 HMB270 HMB325 HMHDB400 HMB700 for Kawasaki Staffa HMB & HMHDB Hydraulic Piston MotorUS$ 5,000 - 5,000MOQ: 1 Unit -
HPC080 HPC125 HPC200 HPC270 HPC325 & HMC080 HMC125 HMC200 HMC270 HMC325 400 for Kawasaki Staffa HPC & HMC Hydraulic Piston MotorUS$ 5,000 - 5,000MOQ: 1 Unit
-
MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83 for Poclain MS Hydraulic Piston MotorUS$ 1,000 - 1,000MOQ: 1 Unit
-
Radial Hydraulic Piston Motor Sai Double Displacement BD Series BD1 BD2 BD3 BD5 BD5 BD6US$ 300 - 300MOQ: 1 Piece
-
Disc Valve Orbit Hydraulic Motor BMP Series OMT195 OMT245 OMT310 OMT390 OMT490 OMT625 OMT800 OMT985US$ 80 - 80MOQ: 1 Unit
Hydraulic motor - OMT BMT series spool valve hydraulic motor
BMT-160 BMTS-160 BMTW-160 BMT-200 BM4T-200 BMTW-200
BMT-250 BMTS-250 BMTW-250 BMT-320 BM4T-320 BMTW-320
BMT-400 BMTS-400 BMTW-400 BMT-500 BM4T-500 BMTW-500
We are a specilized manufacturer in hydraulic motor, steering control units and valves, with high quality low price and better after sale services.
Our products can substitute with Eaton series, Danfoss series ad Char-lynn series.
BM hydraulic motoris one type of high torque Iow speed hydraulic motors, with high efficiency and long life. BM motor has a wide Speed rangee, high starting torque and rotating stable at high speed Compact and light, it can be connected to working machine directly, adapted to all kinds of Iow speed heavy load facilities.
BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
Technical data:
TYPE |
BMT-160 |
BMT-200 |
BMT-250 |
BMT-320 |
BMT-400 |
BMT-500 |
|
(ml/r) Displacement |
158.8 |
200.8 |
252.2 |
317.5 |
401.6 |
535.3 |
|
|
cont. |
20 |
20 |
20 |
20 |
18 |
16 |
int. |
24 |
24 |
24 |
24 |
21 |
18 |
|
peak. |
28 |
28 |
28 |
28 |
24 |
21 |
|
Max.Torque(N.m) |
cont. |
450 |
561 |
710 |
902 |
1008 |
1121 |
int. |
559 |
714 |
883 |
1143 |
1255 |
1377 |
|
peak. |
663 |
818 |
1021 |
1322 |
1431 |
1598 |
|
Speed.Range(cont.)(r/min) |
10-625 |
9-500 |
8-400 |
7-312 |
6-250 |
5-175 |
|
Max.Flow(cont.)(L/min) |
100 |
100 |
100 |
100 |
100 |
100 |
|
Max.Output.Power(cont.)(Kw) |
20.1 |
25.2 |
25.2 |
25.2 |
22 |
21 |
|
Weight(kg) |
20.3 |
20.8 |
21.4 |
22.4 |
23 |
24 |
|
| Eaton | Danfoss |
| OMM | |
| JH | OMP |
| JS | OMR |
| BM3 | |
| W | OMH |
| 2K/2000 | OMS |
| 6K/6000 | OMT |
| OMS | |
| 4K | |
| OMT | |
| 8K | OMV |
