HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind

HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind thumbnail-1
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind thumbnail-2
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind thumbnail-3
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind thumbnail-4
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind photo-1
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind photo-2
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind photo-3
HONGJUN 220V 4 Ceramic Bearing Square 2.2kw Air Cooled Spindle Motor ER20 Runout-off 0.01mm CNC Engraving Milling Grind photo-4
US$ 270 - 288 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONGJUN
Place of Origin:
Sichuan, China
Model Number:
GDZ93*82-2.2, 2.2kw Air Cooled Square Spindle Motor
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONGJUN
Place of Origin Sichuan, China
Model Number GDZ93*82-2.2, 2.2kw Air Cooled Square Spindle Motor
Weight 7kg

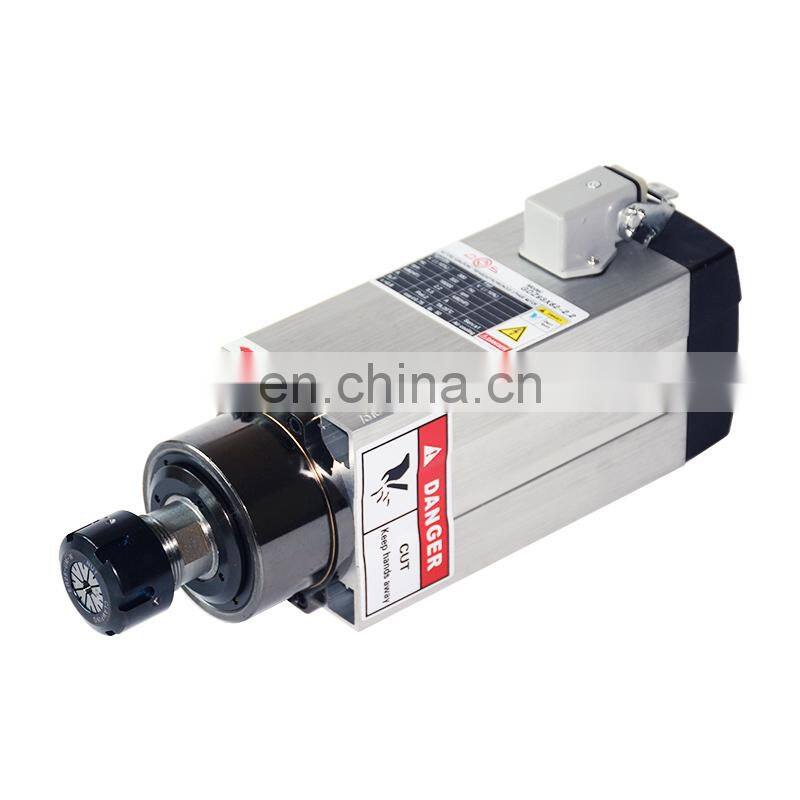

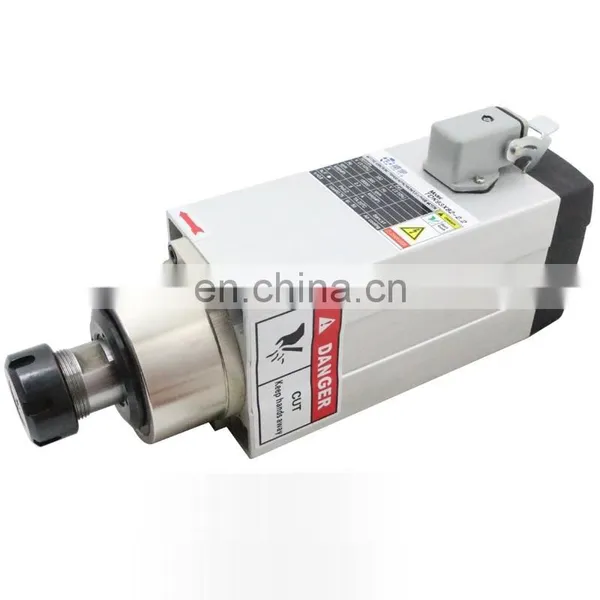

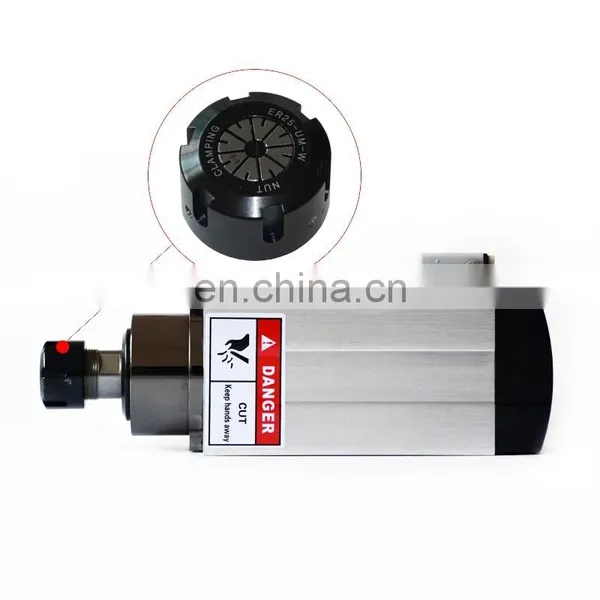

HONGJUN 4pcs Ceramic Bearings 2.2KW square air cooled spindle motor 220V ER20 runout-off 0.01mm

Tip
This kit is AC220V input voltage, if need AC380V input, pls contact seller before order!



HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

Advantage

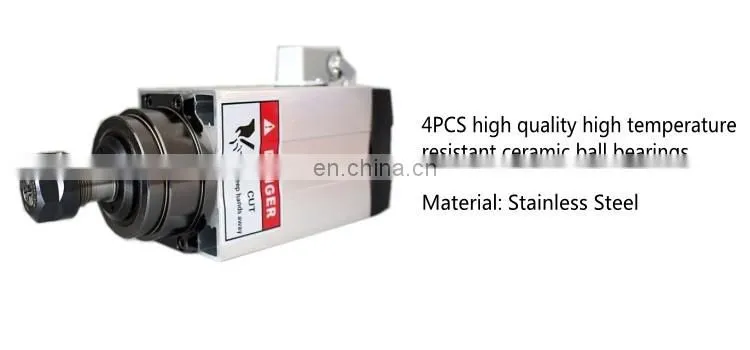

--4PCS high quality high temperature resistant ceramic ball bearings

---CE/ISO9001-2000




Specification

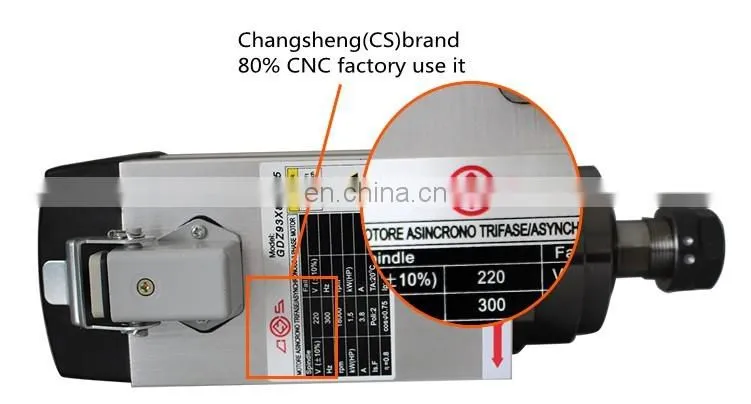

Brand  Changsheng
Model GDZ93*82-2.2
Power  2.2KW
Voltage  220/380V
Current  5.5/10A
Max speed 18000rpm/min
Standard frequency   0-300Hz
Cone aperture to beat 0.008mm
Coaxiality 0.0025mm

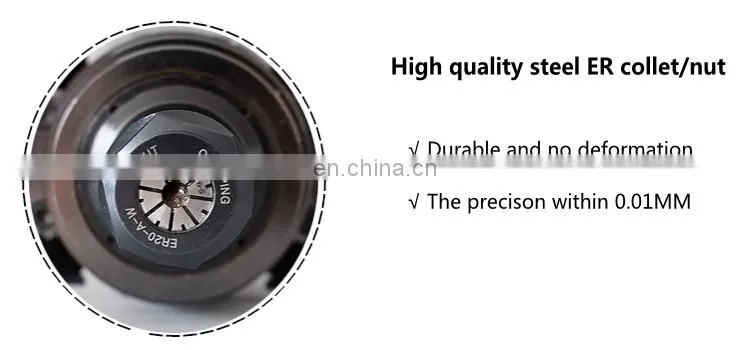

Collet  ER20
Cooling type  air
Bearing  7005*2  7002*2
Cone aperture to beat 0.008mm
Coaxiality 0.0025mm
Lubricate  Germany's Krupp GN-25 grease
Warranty  bearing(6 months),spindle( 1 year )



Connection

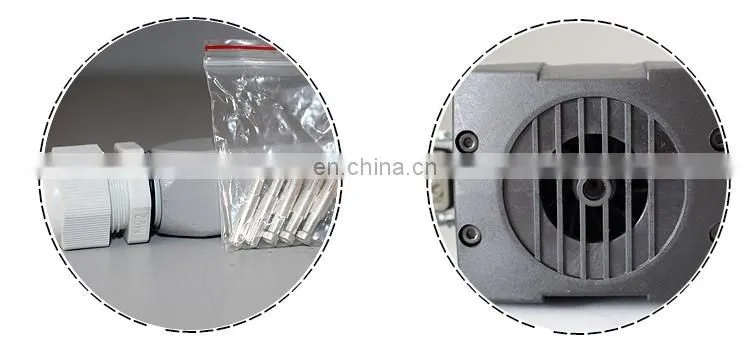

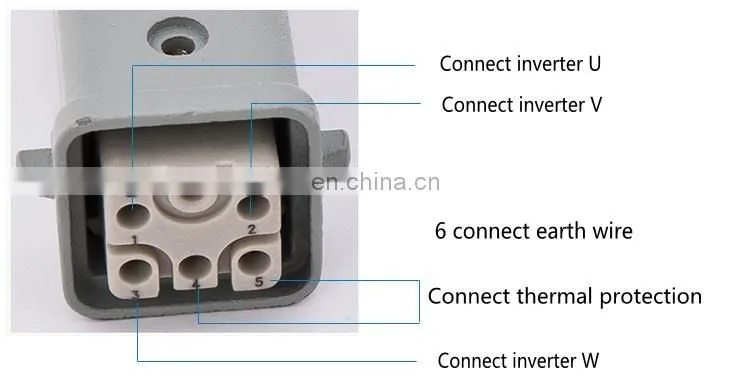

professional sqaure aviation plug,1 2 3 connect inverter ouput port (U/V/W), 4 and 5 connect temperature protection,6 connect earth wire



Warranty

Bearing(one year), spindle(one year)

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind
HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind
 HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

 HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

HONGJUN 220V 4 Ceramic bearing Square 2.2kw Air cooled spindle motor ER20 runout-off 0.01mm CNC Engraving milling grind

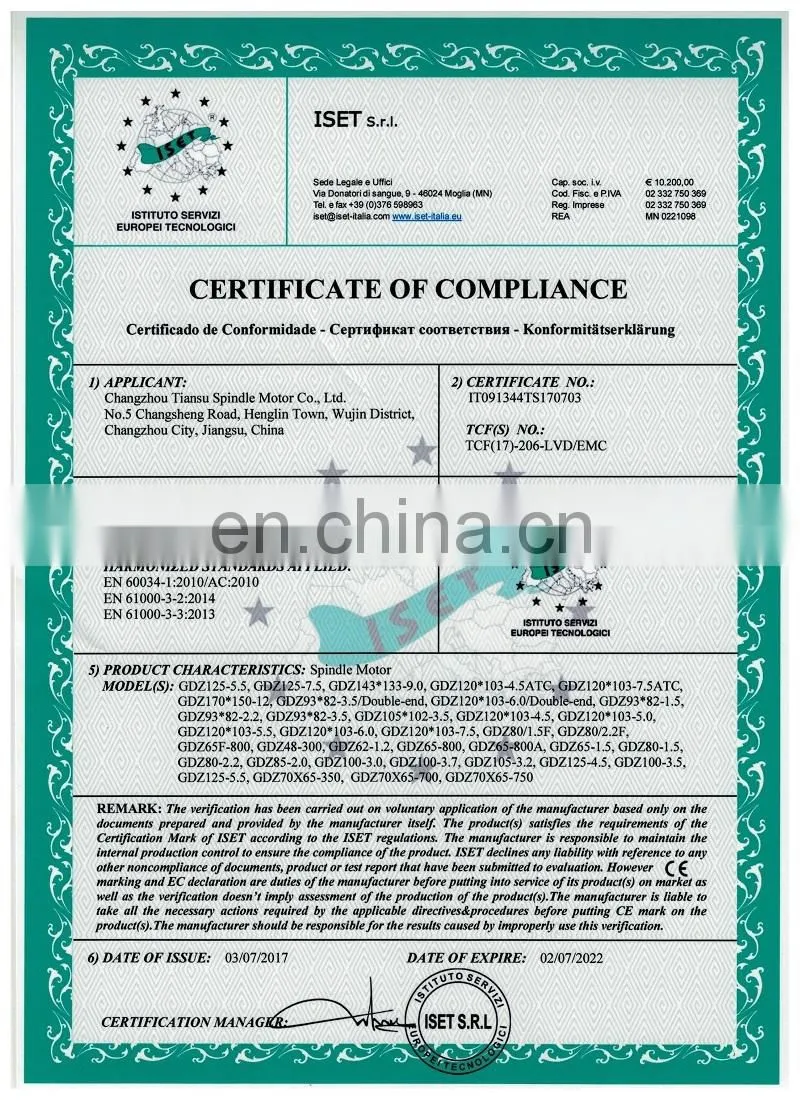

Ce Certification
