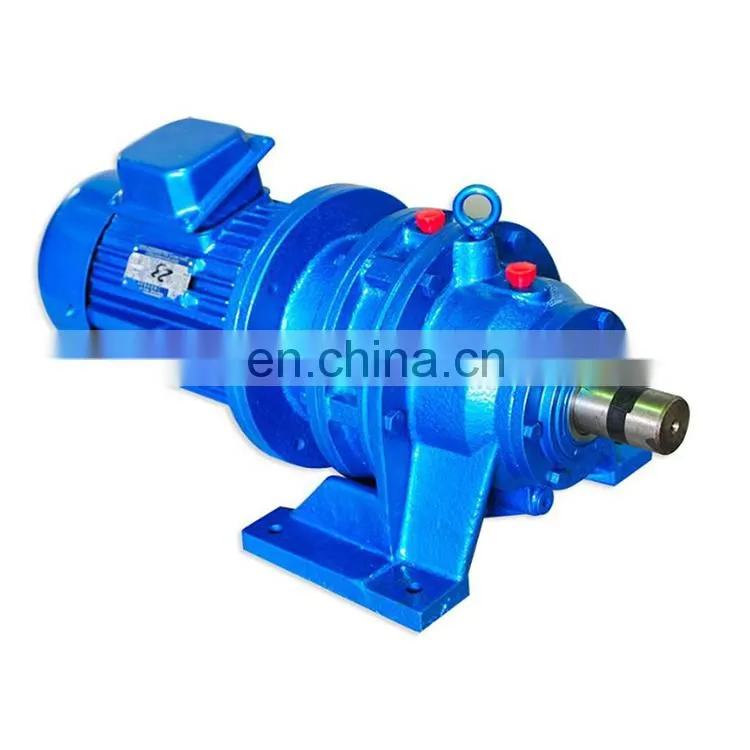

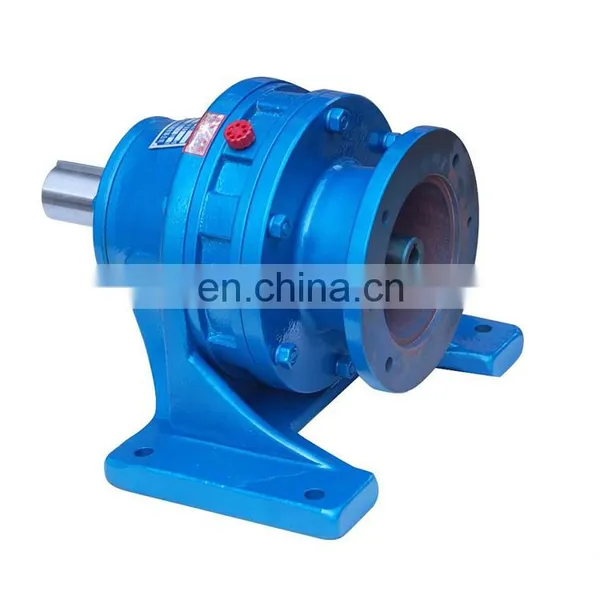

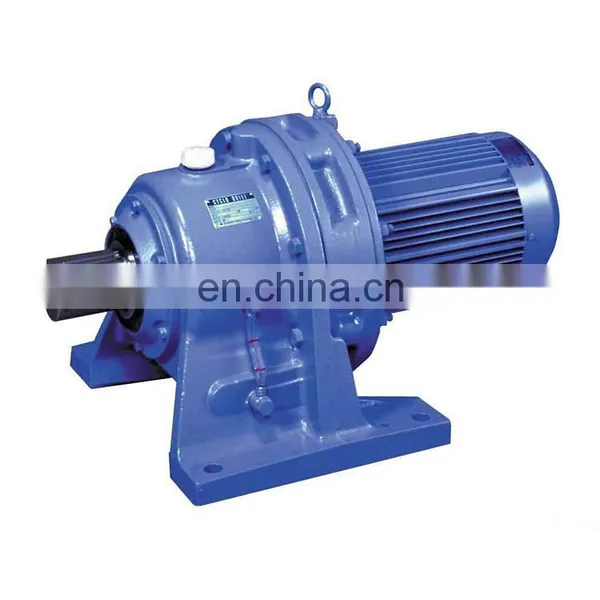

Heavy duty planetary gearbox for precision transmission machine
Leave an email, we will send the detailed datasheet to you (catalogue)
Output Torque Range: 1000 to 450,000 N.m
Transmissible Mechanical Power: up to 450 kW
Gear Ratios: 3 to 9000
Gear Unit Versions:
In line (Co-axial )
Right angle (with a spiral bevel gear set)
Output Configuration:
Foot and flange mounted
Output shaft: solid with key, spline, spline hollow,
Hollow with shrink disc
Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors
Solid input shaft
Hydraulic Brake: Hydraulically released parking brake on request
How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :
A: INPUT Component:
A1: AC electric motor
A2: NEMA or IEC motor
A3: NEMA or IEC motor adapter flange
A4: Solid input shaft
A5: Solid input shaft with fan
B: Gear Reductions (co-axial stage 1-5 ,right angle 1-4 . )
B1: Right angle reduction stage
B2: Planetary reduction stage
B3: Worm/planetary combination
B4: Bevel helical planetary combination
B5: Flange output
C: Output Component
C1: Footed output
C2: Flanged output
C3: Footed output
C4: Flanged output
C5: Shaft Mount output for shrink disc
D: Fittings
D1: Flange
D2: Pinion gear
D3: Sleeve coupling
D4: End plate
D5: Splined bar
D6: Shrink disc
N series planetary speed reducer is widely used for industrial applications. With the designs deriving from modern innovating, the product makes great progress in a compact, price effectiveness and combination. The product configuration is highly versatile due to several options as far as the mounting, the output shaft and the motor interface. With overloading bearing fixed to the output shaft, the products has been one of the powerful solutions to heavy-duty drive problems.
2. Packaged in to a wooden boxes or other ways for the protection.
3. Suitable for the air or sea.
4. For forging parts: rust resistant, nylon strap, steel strip and wooden pallets or wooden case.
Delivery Detail: 30-90 days
As one of the leading manufacturer for precision planetary gearbox and AC/DC Motor, Hongjun Science and Technology Co., Ltd. works in this field for more than 15 years! We have the biggest market share in domestic China market.
