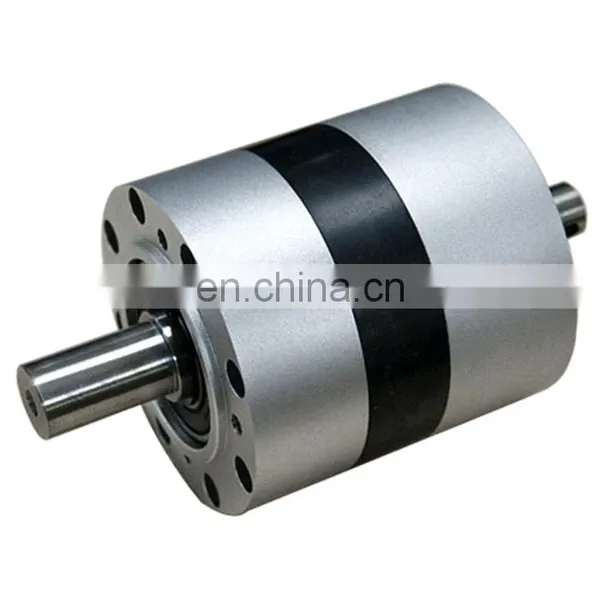

220V 400W Panasonic Servo Motor Reducer PLS160 8K High Quality Nema 57 Flange Size Gearbox Planetary
Planetary reducer is a widely used industrial product, which can reduce the speed of motor and increase the output torque. Planetary reducer can be used as supporting parts in lifting, excavation, transportation, construction and other industries.
1)Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 1~512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <3 (arcmin)
Stage 2: <6 (arcmin)
Stage 3: <8 (arcmin)
8) Operating temperature: -25C to +90C
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||
- Product Show
- Wildly Application
Large precision planetary gear reducer is widely used in: wharf, mining, transportation, lifting, construction, oil, ocean, ship, steel and other fields.
Small (micro) precision planetary reducer is widely used in medical devices, smart home, consumer electronic products, antenna drive, home appliances, automobile drive, robot field, aircraft field, etc.
- Hongjun Science and Technology Co. Ltd

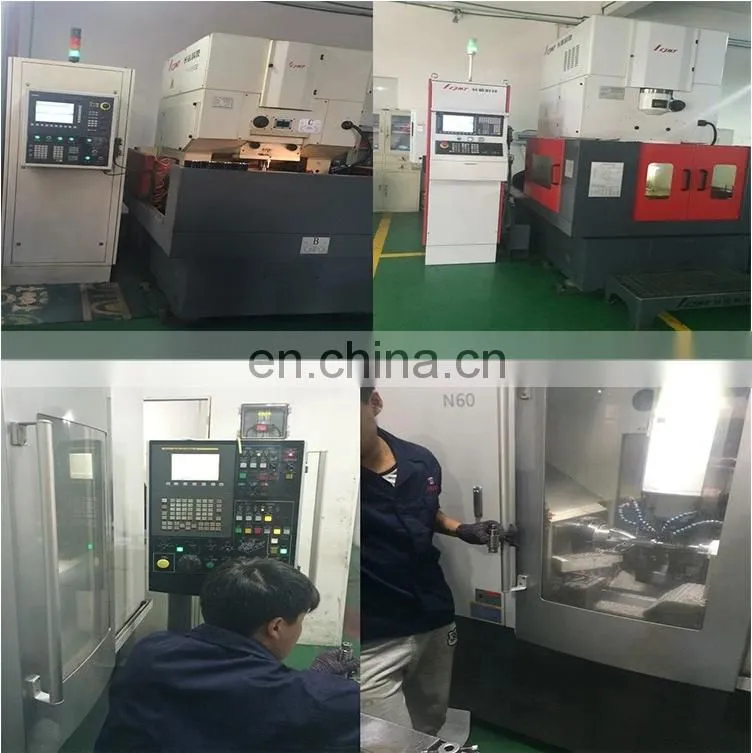

As one of the most professional planetary gearbox manufacture in China, we has been specializing in this field for over 10 year. Our factory, which has very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe, our reducers are widely used to replace famous brand precision planetary gearbox, such as NEUGART, to build new cnc machines, machinery arms and robots, because of our good quality and price.
- Certificate
1.Q:How about the warranty?
A:All goods have 1 year warranty.
2.Q:What about the delivery time?
A:Normally in 1 Week.
3.Q: Other suppliers have a better price than yours?
A:To create the greatest benefit for clients is our belief, if you have a better price, please let we know. We will trythe best to meet your price and support you.
4.Q:What about the shipment?
A:We can arrange shipment by DHL, FedEx, UPS,TNT, EMS with competitive price, of course, customers can also use their own freight forwarders.
5.Q:How about the terms of payment?
A:Generally through T/T, Paypal and Western Union also accept.
