Mitsubishi Spur Gear PLS Series PLS120 Good Sale 5k 10k Nema 42 Planetary Gearbox High Quality Harvester Gearbox
Planetary reducer is a widely used industrial product, which can reduce the speed of motor and increase the output torque. Planetary reducer can be used as supporting parts in lifting, excavation, transportation, construction and other industries.
1)Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 1~512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <3 (arcmin)
Stage 2: <6 (arcmin)
Stage 3: <8 (arcmin)
8) Operating temperature: -25C to +90C
| Series | PLE, PLF, PLS, PLX, WPLE, WPLF | ||
| Gearbox outline size (mm) | 40, 60, 80, 90, 142, 160, 190, 242 | ||
| Stage | Single stage | Two stage | Three stage |
| Ratio | 3:1, 4:1, 5:1, 7:1, 10:1 | 12:1, 16:1, 20:1, 25:1, 28:1, 35:1, 40:1, 50:1, 70:1 | 64:1, 80:1, 100:1, 125:1, 140:1, 175:1, 200:1, 250:1, 350:1, 400:1, 500:1, 700:1, 1000:1 |
| Rated input speed (rpm) | 3500 | 3500 | 3500 |
| Max input speed (rpm) | 6000 | 6000 | 6000 |
| Efficiency (%) | 96 | 94 | 90 |
| Lowest backlash (arcmin) | 3 | 6 | 8 |
| Niose (dB) | ≤62 | ≤62 | ≤62 |
| Life (h) | 30000 | ||
| Lubrication | Lifetime lubrication | ||
| Level of protection | IP65 | ||

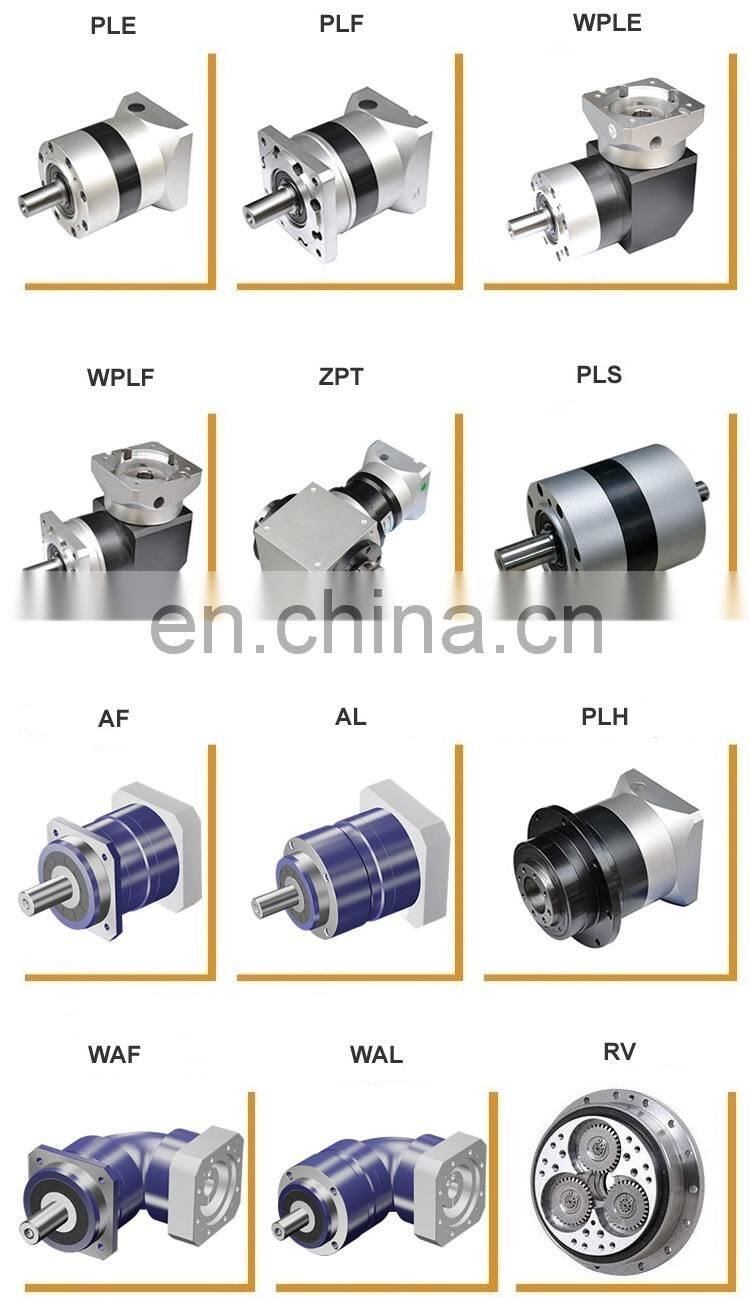

- What else we can supply ?
| Series | Size Available | Ratio |
| PLE series | 60mm 80mm 90mm 120mm 160mm | Single Double Triple |
| PLF series | 60mm 80mm 90mm 120mm 160mm | Single Double Triple |
| PLS series | 60mm 90mm 120mm 160mm | Single Double Triple |
| PLH series | 64mm 90mm 110mm 160mm | Single Double Triple |
| ZPLE series | 60mm 90mm 120mm 160mm | Single Double Triple |
| ZPLF series | 60mm 90mm 120mm 160mm | Single Double Triple |
| PLX / ZPLX series | 142mm 190mm 242mm | Single Double Triple |
| VLF78/VLE(F)90 series | 78mm/90mm | Single Double Triple |
| ZPT/ZSPT series | 75mm 90mm 110mm 140mm | Single Double Triple |

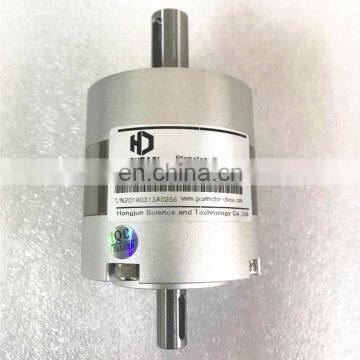

- Product Show

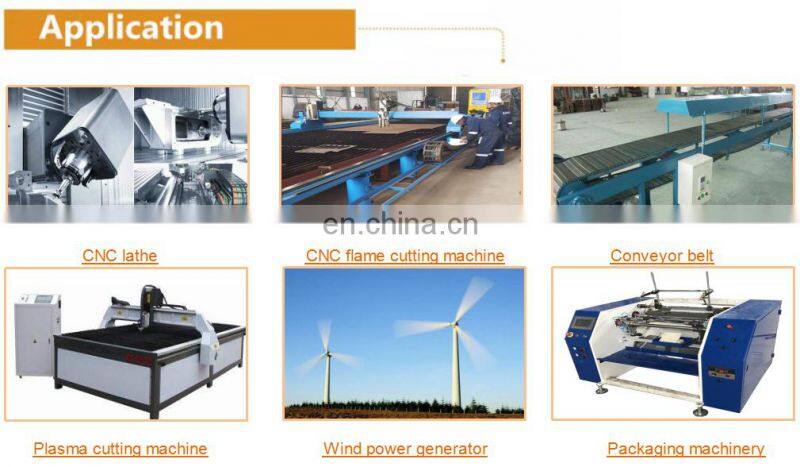

- Wildly Application
Large precision planetary gear reducer is widely used in: wharf, mining, transportation, lifting, construction, oil, ocean, ship, steel and other fields.
Small (micro) precision planetary reducer is widely used in medical devices, smart home, consumer electronic products, antenna drive, home appliances, automobile drive, robot field, aircraft field, etc.

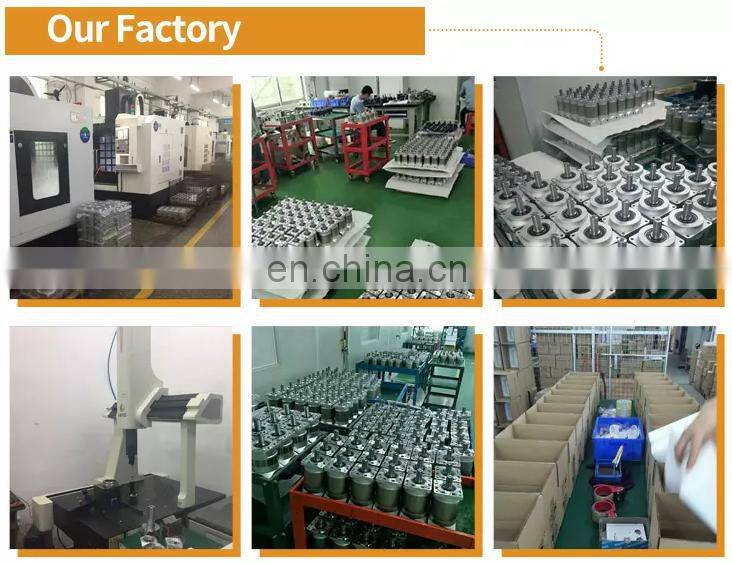

- Hongjun Science and Technology Co. Ltd
As one of the most professional planetary gearbox manufacture in China, we has been specializing in this field for over 10 year. Our factory, which has very proven technique of producing planetary gear box, has pretty strong research and development ability. Since our decades of hardworking, nowadays we have developed long term business relationship with many customers from all over the world. In Europe, our reducers are widely used to replace famous brand precision planetary gearbox, such as NEUGART, to build new cnc machines, machinery arms and robots, because of our good quality and price.
- Certificate
1.Q:How about the warranty?
A:All goods have 1 year warranty.
2.Q:What about the delivery time?
A:Normally in 1 Week.
3.Q: Other suppliers have a better price than yours?
A:To create the greatest benefit for clients is our belief, if you have a better price, please let we know. We will trythe best to meet your price and support you.
4.Q:What about the shipment?
A:We can arrange shipment by DHL, FedEx, UPS,TNT, EMS with competitive price, of course, customers can also use their own freight forwarders.
5.Q:How about the terms of payment?
A:Generally through T/T, Paypal and Western Union also accept.
