food grade SUS304 stainless steel industrial automatic fruit and vegetable washer machine

Name: food grade SUS304 stainless steel industrial automatic fruit and vegetable washer machine
Brand: JOYSHINE
Price: USD $4,480 - 4,800 / Set

FOB Price

USD $4,480 - $4,800 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao/Ningbo/Shanghai/Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

JOYSHINE

Place of Origin:

Shandong, China

Model Number:

JS-QPQX-3000

Product Description

Products Description

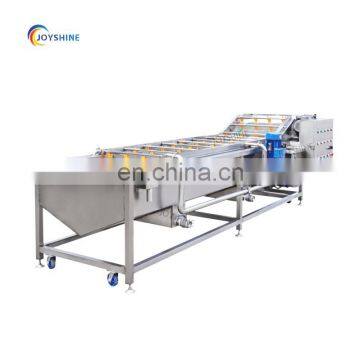

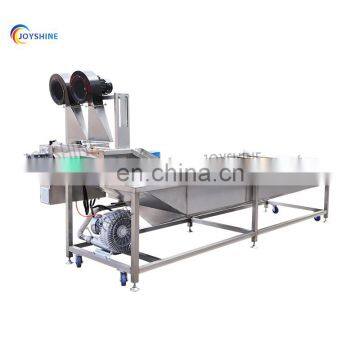

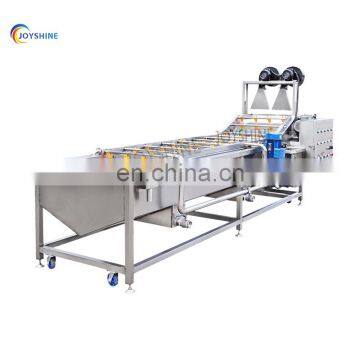

food grade SUS304 stainless steel industrial automatic fruit and vegetable washer machine

This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.

Working Principle:

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects

Features:

1	Equipped with a bubble generator to make the objects roll over High pressure air bubble and spraying water can wash off dirt, sands and other residues
2	Equipped with VFD to better adjust the belt speed
3	Equipped with separate filter tank and water recycling system
4	Equipped with spraying section with clean water for twice washing The objects are automatically conveyored to spraying section by the conveyor mesh belt

Advantages:

1	Food grade SUS304 stainless steel
2	High cleaning ability, high washing rate
3	Wide range application, suitable for many products
4	No damage to the products

OEM Service

According to the customers' special requirements, there are following optional configurations:

1	Ozone generator for sterilization and disinfection and decomposition of pesticide residues
2	Ultrasonic module through ultrasonic vibration to clean the products completely
3	Air fans to be added at the outlet for simple frying after washing
4	Lifting device can be added to life the mesh belt for easy cleaning of the tank
5	Any other functions you need, tell us freely, we will design special machine for you

Detailed Images

Spray Nozzle

Overflow Gap

Filter Tank

Waste Water Outlet

Twice Spraying Section

Sealing Strips

Control Panel

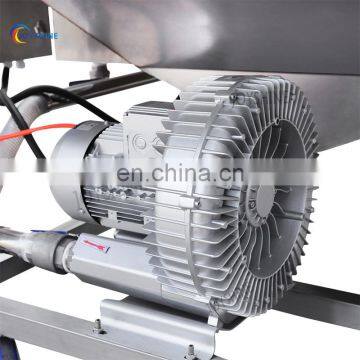

Vortex Blower

Application

Product Paramenters

Model	Dimension	Weight	Power	Capacity
JS-QP-2500	250010001300mm	400kg	4.45kw	500kg/h
JS-QP-3000	300012001300mm	600kg	5.25kw	800kg/h
JS-QP-4000	400012001300mm	700kg	6.6kw	1000kg/h
JS-QP-5000	500012001300mm	900kg	8.3kw	1500kg/h
JS-QP-6000	600012001300mm	1100kg	9.4kw	2000kg/h

OEM: Machine size, configuration and capacity etc can be customized according to your special requirements, Contact for more details please!

This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
