CE Approved 300kg/h Automatic Potato Chips French Fries Making Machine Production Line

Name: CE Approved 300kg/h Automatic Potato Chips French Fries Making Machine Production Line
Brand: Joyshine
Price: USD $8,000 - 8,000 / Set

FOB Price

USD $8,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Joyshine

Place of Origin:

Henan, China

Product Description

Products Description

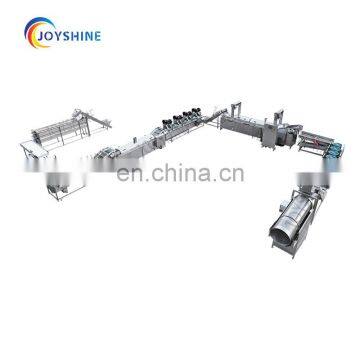

CE Approved 300kg/h Automatic Potato Chips French Fries Making Machine Production Line

We are professional direct manufacturer of potato chips or french fries making machines in China. We have different solutions for different demands:

1: Different machines for making potato chips or french fries

2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output

3: Semi automatic or fully automatic processing machines

4: Electricity or gas heating source for blanching and frying machine

Fully Automatic Frozen French Fries Production Process:

No.	Machine Name	Function
1	Elevating Conveyor	For elevating and conveying potatoes into the next washing peeling machine
2	Potato Washing and Peeling Machine	Thoroughly washing and peeling the potatoes
3	Picking Line	For manually disposing the uncleaned places and selecting the defective potatoes
4	Potato Cutting Machine	Cutting the potatoes into strips, from 77 to 1212mm
5	Potato sticks pre washing machine	water as buffer to prevent potato sticks breakage, and simply removing starch, meanwhile elevating potato sticks into next step
6	Chips roller picking machine	Automatically picking up the small or defective potato strips
7	Bubble Washing Machine	Through high pressure waterflow and water bubbles to impact and scrub the potato strips to wash off the starch
8	Blanching Machine	Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the potato strips
9	Air Drying Machine	Through high pressure wind blowing for pre-cooling and removing the excess water after blanching in short time, effectively prevent the fried oil jumped phenomenon
10	Elevating Conveyor	For elevating and conveying the potato strips into next frying machine
11	Continuous Belt Frying Machine	For quick frying the potato strips around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life
12	Vibrating Deoiling Machine	Through high frequency vibrating to achieve deoiling purpose, and also to convey the potato strips uniformly to go into the next machine
13	Air Drying Machine	Through high pressure wind blowing for pre-cooling and deoiling the potato strips
14	Elevating Conveyor	For elevating the french fries into next freezer
15	Freezing Machine	Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF
16	Automatic Packing Machine	For packing the finished frozen french fries

Detailed Description

Fresh Potato Elevator

Potato Washing and Peeling Machine

Unqualified Potato Picking Line

Potato Cutter

french fries cutting potato chips slicing

Fries Pre-washing Elevator with Water Tank

Unqualified Fries Roller Picking Machine

Potato Chips and French Fries Washing Machine

Blanching Machine

Vibration De-water Machine

Air Drying Machine

Elevator Conveyor

transports fries into the fryer

Continuous Frying Machine

Vibrating De-oil Machine

Air-cooling Machine

Quick-freezing Equipment

Automatic Weighing and Packaging Machine

Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!
