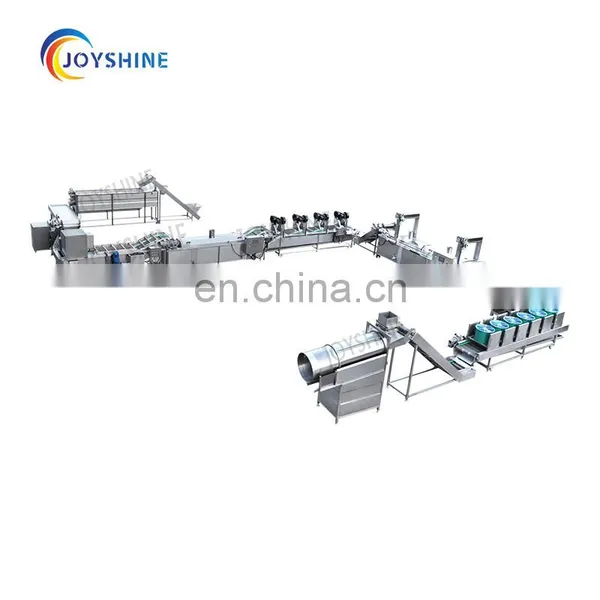

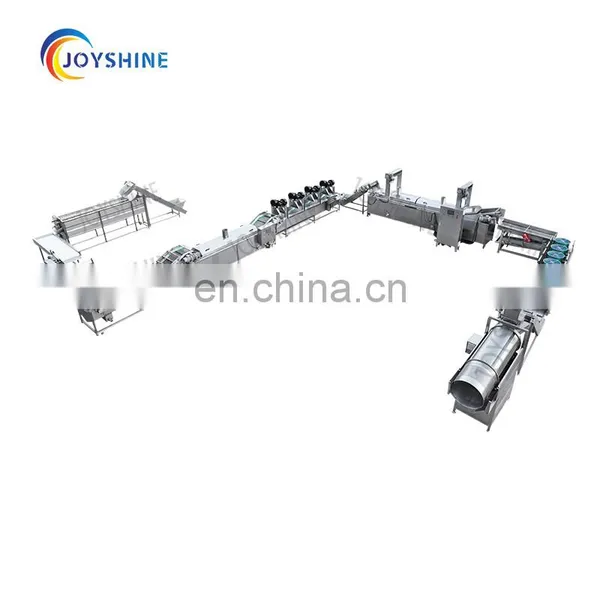

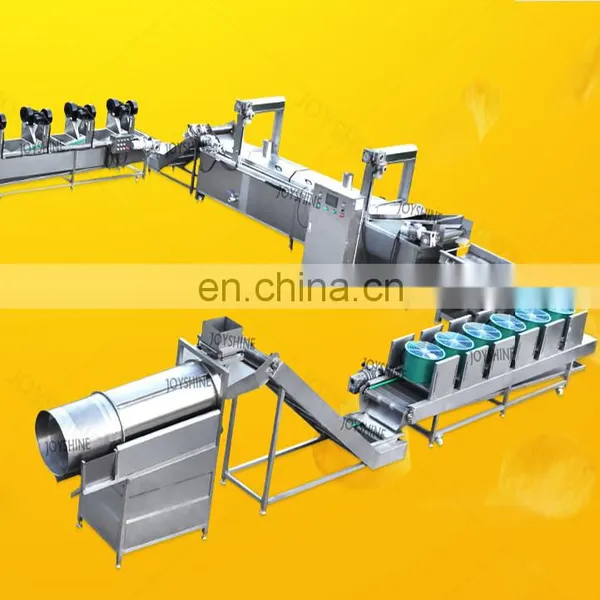

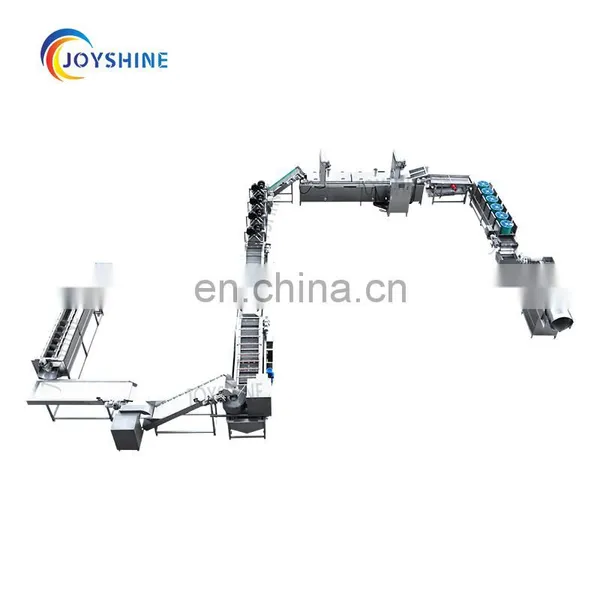

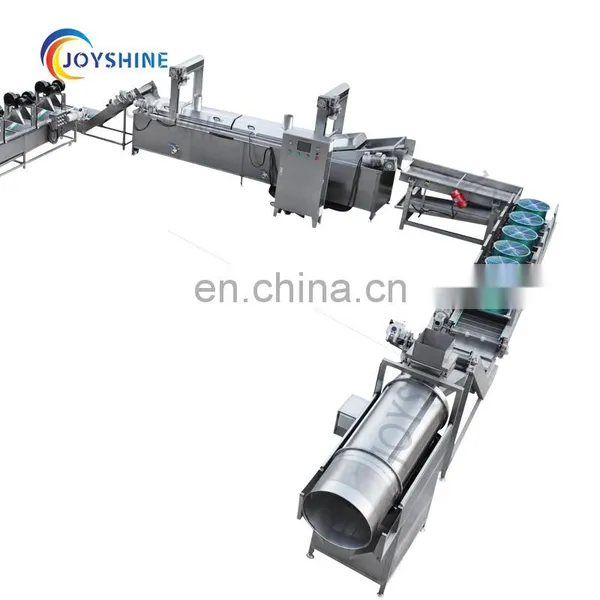

500kg per Hour Full Automatic Frozen French Fries Making Machine Production Line
US$ 90,000 - 90,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
JOYSHINE
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500kg per Hour Kfc Machine French Fries Slicer Machine Gas Fry Fries Machine PlantUS$ 8,000 - 8,000MOQ: 1 Unit -
Automatic Frozen French Fries Machine Production Line for French Fries/french Fries Machine SmallUS$ 5,000 - 150,000MOQ: 1 Unit
-
200kg SUS 304 French Fries Plant Potato Frozen French Fries Making MachineUS$ 5,000 - 150,000MOQ: 1 Unit
-
Semi Automatic 50kg Small Size Home Use French Fries Making LineUS$ 5,000 - 150,000MOQ: 1 Unit
-
Semi-automatic 50kg Plantain Chips Making Machine Deep Fryer Philippine Banana Chips MachineUS$ 7,560 - 8,850MOQ: 1 Set
Brand Name
JOYSHINE
Place of Origin
Shandong, China
Product Description
1500kg per hour Frozen french fries potato chips machine
1 |
We are a professional manufacture to produce french fries making machines, potato chips making machines, banana chips making machines. |
||||||
2 |
Process capacity including input capacity and output capacity and Process flow can be customized according to your need. |
||||||
3 |
About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business. |
||||||
4 |
Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry. |
||||||
5 |
All equipment in the production line is made of 304 stainless steel. |
||||||
6 |
Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one. |
||||||
7 |
The size of French fries and the thickness of potato chips are adjusted. |
||||||
8 |
We can design floor plan of complete line you need epending on your area' s size. |
||||||
Production Process
1. Elevator
It is used to lift fresh potatoes into next step screw washing and peeling machine automatically.
2. Screw potato washing and peeling machine
It is used to peel potatoes completely with hard brush and emery brush, uneven and corrugated brushes can peel potatoes completely.
Inspecting table
It is used to pick out unqualified potatoes such as bad parts and potato eyes manually, this machine can be equipped with Waste bins and return unpeeled potatoes into previous peeling machine.
4. Potato cutter
It is used to cut potato strips, strips size can be customized,
4. Potato slicer
It is used to cut potato chips, chips thickness can be adjusted.
5.Elevator with water bucket
It is used to preclean and lift potato strips into next step Rinsing machine.
6. Rinsing machine
It is used to wash potato starch and protect potato from oxidation tp keep strips and chips' color.
7.Blanching machine
---It is used to deactivate the activity of the oxidase, take off the starch to keep french fries’s soft taste.
---Heating source can use Gas heating, Electricity heating or Diesel heating any one.
---Blanching time and Blanching temperature can be adjusted.
8. Vibration de-water machine
It is used to remove extra water, the bottom with water tray. This machine also has many small holes to leak out waste parts and unqualified parts of strips.
9. Air-cooling machine
It is used to do secondary water removal.
10. Elevator
It is used to lift potato strips into next step Continuous frying machine.
11. Continuous frying machine
---It is used to fry potato strips into fries in short time.
---Heating source can use Gas heating, Electricity heating or Diesel heating any one.
---Blanching time and Blanching temperature can be adjusted.
12. Vibrating de-oil machine
It is used to remove extra oil and leak out unqualified french fries.
13. Air-cooling machine
It is used to do secondary oil removal and cool down the temperature after frying.
14. Elevator
It is used to convey fries into freezer from air-cooling machine.
15. Fluidized belt freezer
It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and french fries quality.
16. Automatic weighing and packaging machine
It is used pack frozen french fries automatically.
