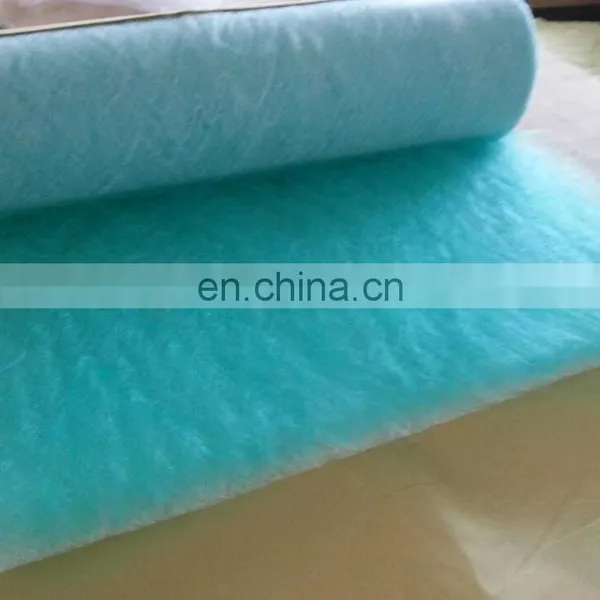

Fiberglass Paintbooth Floor Filter
- 100000 Square Meter / Square Meters per Month
- SHANGHAI
- T/T Credit Card
Product Details
Brand Name: | FORST FILTER | Place of Origin: | Jiangsu, China | After-sales Service Provided: | Overseas service center available |
Product Description
Fiberglass Paintbooth Floor Filter:
Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life
Speciality:
1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;
3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170°C;
6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;
7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame.
Functions:
1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.
Fiberglass Paint Stop Filter Media
Performance parameters:
Model |
SFF/PA-50/60 |
SFF/PA-100 |
Average arrestance |
92%-96% |
97%-99% |
Initial pressure drop |
15Pa |
20Pa |
Final pressure drop |
250 Pa |
280 Pa |
Air velocity |
0.7-1.5.m/s |
0.7-1.75.m/s |
Dust holding at final |
3200-3600g/m2 |
3600-4900g/m2 |
Temperature resistance |
170°C |
170°C |
Temperature short peaks |
190°C |
190°C |
Normal thickness |
50/60mm |
100mm |
Normal size |
0.8m*20 1.0m*20m 2.0m*20m |
0.8m*20 1.0m*20m 2.0m*20m |
