Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 6/10kV Aluminum Conductor Insulated Medium Voltage Power Cable
US$ 1 - 50
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
HNTDDL
Place of Origin:
Henan, China
Model Number:
Medium Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6/10kV Single Core Aluminum Conductor Non-Armored Power Cable AL / XLPE / CTS / PVCUS$ 1 - 50MOQ: 1000 Meters -
6/10kV Single Core Aluminum Conductor Steel Tape Armored Power CableUS$ 1 - 50MOQ: 1000 Meters
-
6/10kV Aluminum Conductor SWA Medium Voltage Power CableUS$ 1 - 50MOQ: 1000 Meters
-
6/10kV 3 Core Copper Conductor Copper Screen Medium Voltage Power CableUS$ 1 - 50MOQ: 1000 Meters
-
6/10kV 3 Core Copper Conductor Steel Tape Armored Power CableUS$ 1 - 50MOQ: 1000 Meters
Brand Name
HNTDDL
Place of Origin
Henan, China
Model Number
Medium Voltage
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Stranded
Products Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

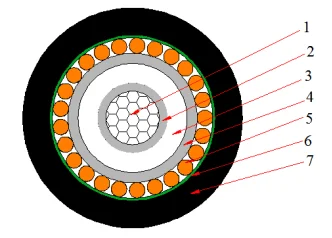

Product Construction
1.Conductor : Aluminium ,Class 1 or Class 2 solid or stranded Circular conductors
2.Conductor screen: Non-metallic，semi-conducting compound
3.Insulation:Cross-linked polyethylene XLPE
4.Insulation screen: Non-metallic，semi-conducting compound
5.Metallic screen: Copper wire
6.Metallic screen:Copper tape
7.Oversheath: Polyvinyl chloride PVC
Product Standards
No. of cores and nominal cross section | Thickness of Insulation | Cross section of Screen | Thickness of | Approx. | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |||||||||||
Sheath | overall Diameter | |||||||||||||||||
(mm2) | (mm) | (mm2) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air | In Ground | ||||||||||
(A) | (A) | |||||||||||||||||
YJLSV (NA2XSY)- 6/10kV | ||||||||||||||||||
1x25/16 | 3.4 | 16 | 1.8 | 21.8 | 568 | 1.2 | 120 | 115 | ||||||||||
1x35/16 | 3.4 | 16 | 1.8 | 22.9 | 619 | 0.868 | 153 | 145 | ||||||||||
1x50/16 | 3.4 | 16 | 1.8 | 24 | 684 | 0.641 | 183 | 171 | ||||||||||
1x70/16 | 3.4 | 16 | 1.8 | 25.7 | 782 | 0.443 | 228 | 208 | ||||||||||
1x95/16 | 3.4 | 16 | 1.8 | 27.2 | 891 | 0.32 | 278 | 248 | ||||||||||
1x120/16 | 3.4 | 16 | 1.8 | 28.7 | 992 | 0.253 | 321 | 283 | ||||||||||
1x150/25 | 3.4 | 25 | 1.8 | 30.2 | 1184 | 0.206 | 364 | 315 | ||||||||||
1x185/25 | 3.4 | 25 | 1.9 | 32 | 1340 | 0.164 | 418 | 357 | ||||||||||
1x240/25 | 3.4 | 25 | 2 | 34.7 | 1560 | 0.125 | 494 | 413 | ||||||||||
1x300/25 | 3.4 | 25 | 2.1 | 36.9 | 1790 | 0.1 | 568 | 466 | ||||||||||
1x400/35 | 3.4 | 35 | 2.2 | 40.2 | 2200 | 0.0778 | 660 | 529 | ||||||||||
1x500/35 | 3.4 | 35 | 2.3 | 44.1 | 2590 | 0.0605 | 767 | 602 | ||||||||||
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages
from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
Company Profile
About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
